Truma iNet Box User Manual

5

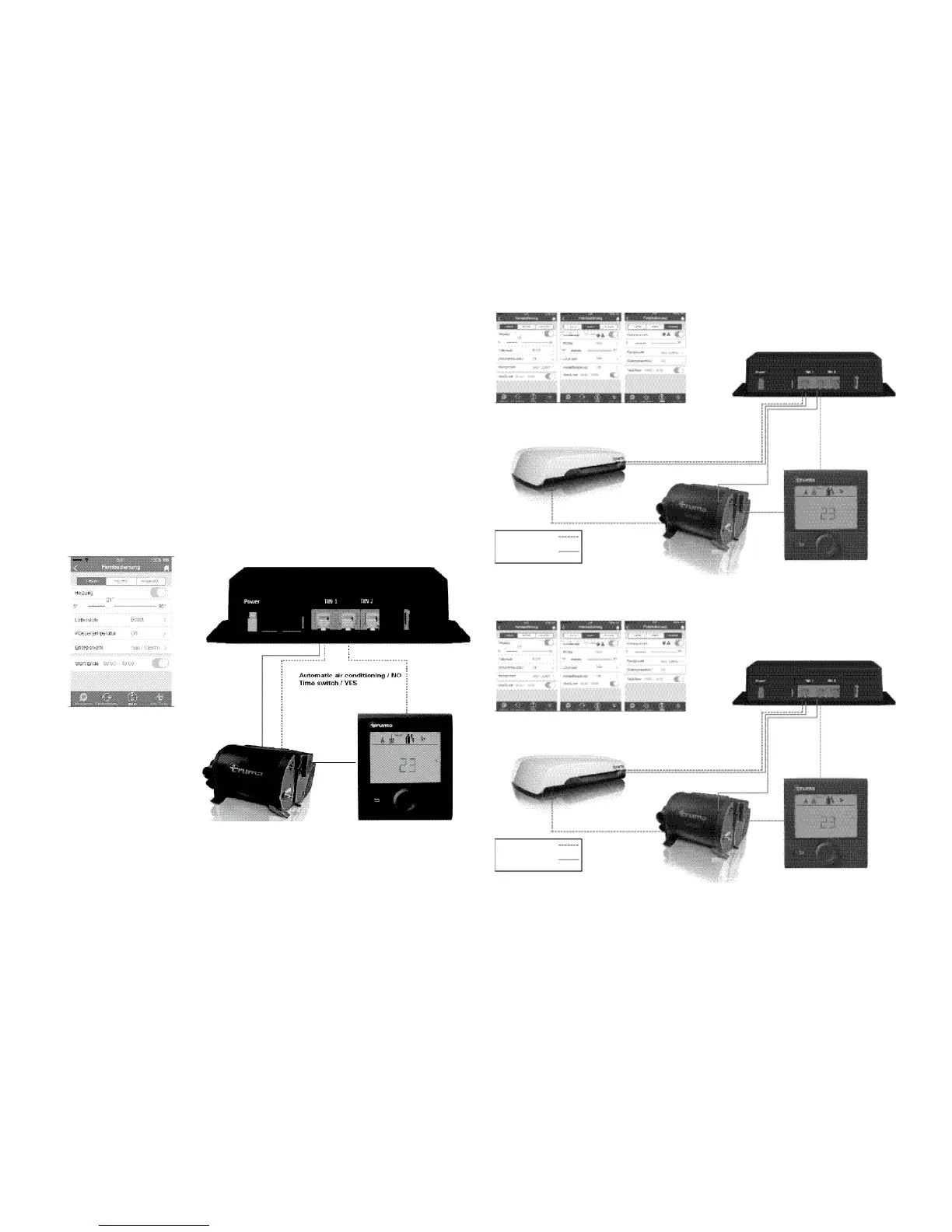

Connection examples
– Plug the cable (TIN-bus) into the iNet Box TIN 1/2 and con-
nect it to a TIN-capable heater and/or air conditioning sys-
tem (from 01.04.2015 onwards, the heater can only be
operated in conjunction with a CPplus control panel).
– Plug in the 12 V connector cable and attach to unswitched
12V operating voltage (permanent positive). Protect the
positive cable with a 1 A fuse (near to the positive terminal
of the power source).
When the CPplus control panel is used, the same circuit as
that of the iNet Box must be used.
Figure 1
Figure 2
Figure 3

Truma iNet Box Specifications

General

Radio Frequency	868 MHz
Power Supply	12V DC
Bluetooth Range	10m
Interfaces	Bluetooth
Communication	Bluetooth, radio
Compatibility	Truma appliances
App Support	Truma App (iOS and Android)
