5
Bluetooth bonding
If there is a saved mobile terminal device within range of the
iNet Box, a Bluetooth bonding to the iNet Box is automatically
performed.
GSM communication
Preparing iNet Box
A Bluetooth connection must first be established before
the GSM communication can be set up and operated.
A Mini-SIM card with its own call number and sufficient credit
is required for GSM communication. The Mini-SIM card is not
included in the scope of delivery.

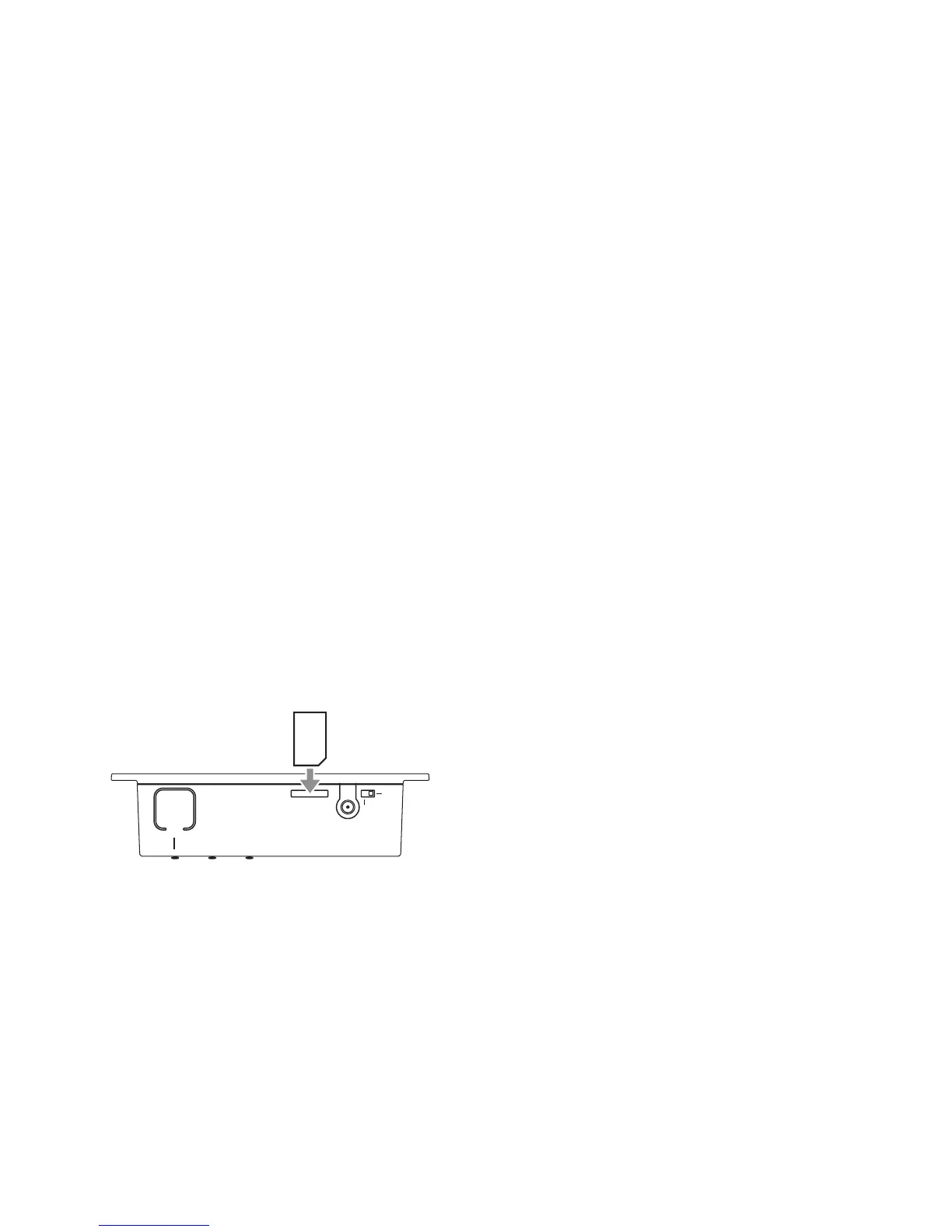

Insert the Mini-SIM card
Position the Mini-SIM card (25 x 15 mm) so that the missing
corner faces the slot and the contact surface faces the bottom
of the iNet Box.
Push the Mini-SIM card into the “SIM” slot until it engages.
SIM
GSM
EXT
INT
Mini-SIM
Figure 3
Removing the Mini-SIM card
Pressing the Mini-SIM card again enables it to be removed.
Setting up the GSM connection
An active Bluetooth connection is required for the continued
installation and the Truma app on the mobile terminal device
must be started.
1. Select the “set-up assistant” of the Truma app
2. Via the “set-up assistant”, enter the PIN and the call num-
ber of the Mini-SIM (iNet Box), and also a freely selectable
name (maximum 11 characters).
Notes:
– The Mini-SIM card is blocked after 3 incorrect PIN entries.
To unblock, the Mini-SIM card must be removed from the
iNet Box and unblocked in the mobile terminal device with
the PUK.
– If the Mini-SIM card is replaced, the GSM connection must
be set up again before using the GSM communication.
