TSC MB240 Series User Manual

- 40 -

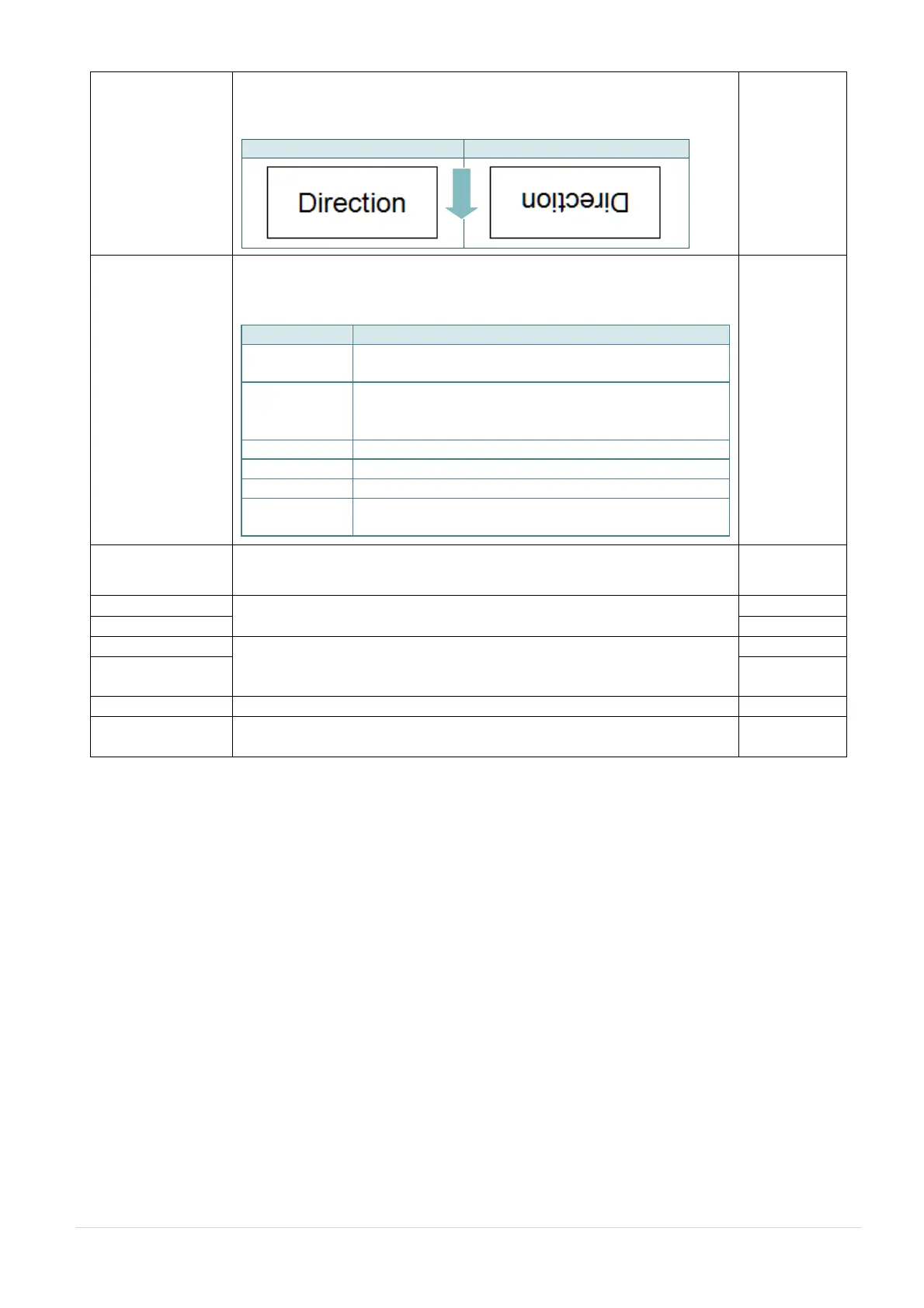

Direction
The direction setting value is either 1 or 0. Use this item to setup
the printout direction.
DIRECTION 0
DIRECTION 1
0
Print mode
This item is used to set the print mode. There are 6 modes as
below,
Printer Mode
Description
None
Next label top of form is aligned to the print head
burn line location. (Tear Off Mode)
Batch Mode
Once image is printed completely, label gap/black
mark will be fed to the tear plate location for tear
away.
Peeler Mode
Enable the label peel off mode.
Cutter Mode
Enable the label cutter mode.
Cutter Batch
Cut the label once at the end of the printing job.
Rewinder
Mode
Enable the label rewinder mode.
Batch
Mode
Offset
This item is used to fine tune media stop location. Available
setting value range is from -999 dots to 999 dots.
0 dot
Shift X
This item is used to fine tune print position. Available setting value
range is from -999 dots to 999 dots.
0 dot
Shift Y
0 dot
Reference X
This item is used to set the origin of printer coordinate system
horizontally and vertically. Available setting range is from 0 dot to
999 dots.
0 dot
Reference Y
0 dot
Code page
Use this item to set the code page of international character set.
850
Country
Use this option to set the country code. Available setting value
range is from 1 to 358.
001
Note: If printing from enclosed software/driver, the software/driver will send out the
commands, which will overwrite the settings set from the panel.
FEED

TSC MB240 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Operating Humidity	25-85% non-condensing
Connectivity	USB 2.0, RS-232
Media Sensor	Reflective, Transmissive
Media Type	Continuous, Die-cut, Black mark, Fan-fold, Notched
Media Width	25.4 mm
Media Thickness	0.06 mm
Media Core Diameter	25.4 mm (1")
Media Max Roll Diameter	127 mm (5")
Ribbon Width	110 mm
Ribbon Length	300 m
Ribbon Core Diameter	25.4 mm (1 inch)
Power	100 - 240 VAC, 50/60 Hz
Maximum Print Length	9999 mm
Label Width	25.4 mm
Label Thickness	0.06 mm
Power Supply	100-240V AC, 50-60Hz
Operating Temperature	5°C - 40°C
Storage Temperature	-20°C - 60°C
Certifications	CE
