TSC MB340 Series - Dump Mode; Print Head

- 52 -

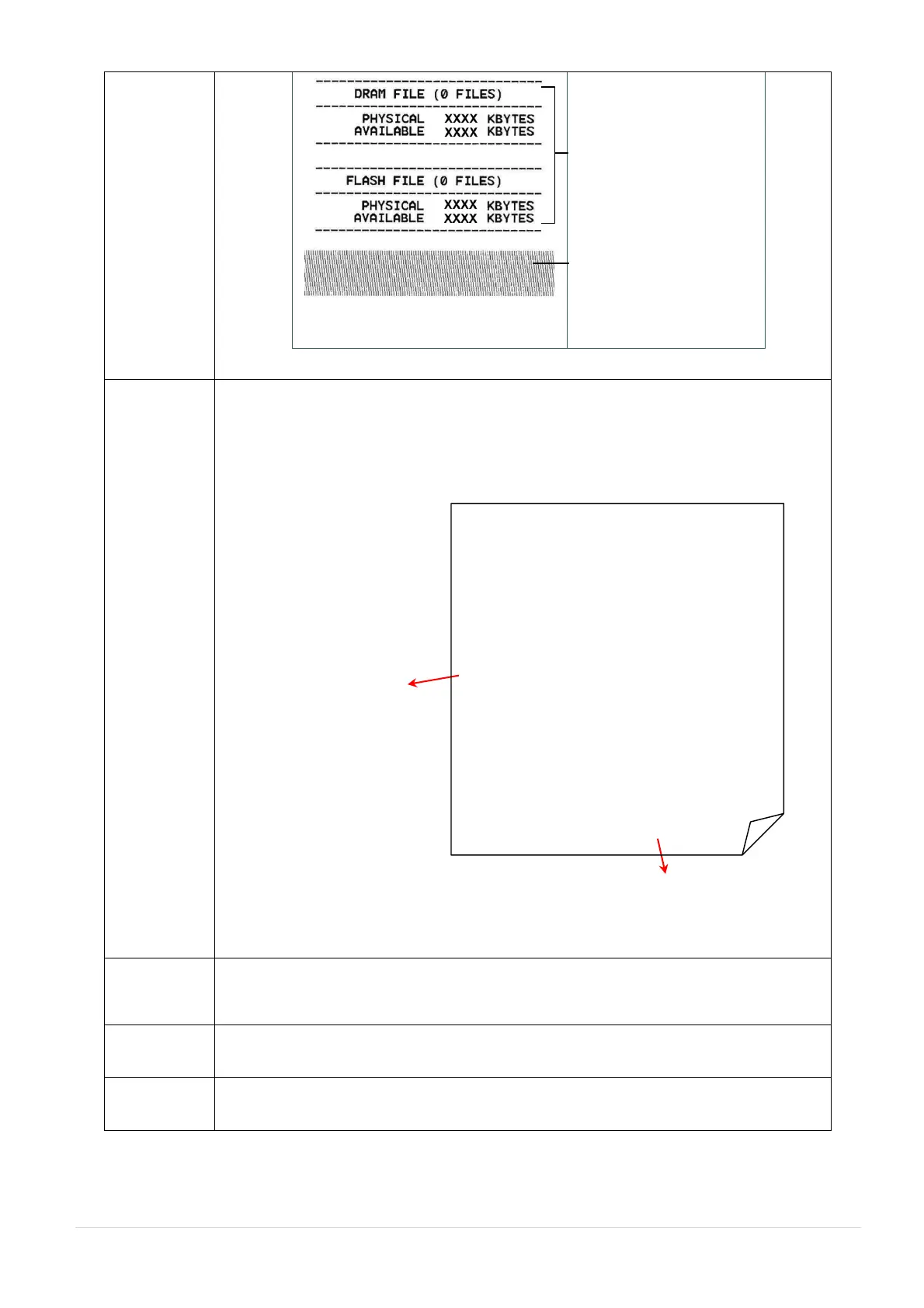

Numbers of download files
Total & available memory space
Print head check pattern
Note:
Checking dot damage
requires 4” wide paper
width.
Dump Mode
Captures the data from the communications port and prints out the data
received by printer. In the dump mode, all characters will be printed in 2
columns. The left side characters are received from your system and right side
data are the corresponding hexadecimal value of the characters. It allows
users or engineers to verify and debug the program.
DOWNLOA 0D 0A 44 4F 57 4E 4C 4F 4I
D „TEST2. 44 20 22 54 45 53 54 32 2E
DAT“,5,CL 44 41 54 22 2C 35 2C 43 4C
S DOWNLO 53 0D 0A 44 4F 57 4E 4C 4F
AD F,“TES 41 44 20 46 2C 22 54 45 53
T4.DAT“,5 54 34 2E 44 41 54 22 2C 35
,CLS DOW 2C 43 4C 53 0D 0A 44 4F 57
NLOAD „TE 4E 4C 4F 41 44 20 22 54 45
ST2.DAT”, 53 54 32 2E 44 41 54 22 2C
5,CLS DO 35 2C 43 4C 53 0D 0A 44 4F
WNLOAD F, 57 4E 4C 4F 41 44 20 46 2C
„TEST4.DA 22 54 45 53 54 34 2E 44 41
T”,5,CLS 54 22 2C 35 2C 43 4C 53 0D
DOWNLOAD 0A 44 4F 57 4E 4C 4F 41 44
“TEST2.D 20 22 54 45 53 54 32 2E 44
AT”,5,CLS 41 54 22 2C 35 2C 43 4C 53
DOWNLOA 0D 0A 44 4F 57 4E 4C 4F 4I
D F,“TEST 44 20 46 2C 22 54 45 53 54
4.DAT“,5, 34 2E 44 41 54 22 2C 35 2C
CLS 43 4C 53 0D 0A
Note:
Dump mode requires 4” wide paper width.
Print Head
This feature is used to check print head’s temperature and bad dots.
Display
This feature is used to check LCD’s color state.
Sensor
This feature is used to check sensors intensity and reading state.
ASCII Data
Hexdecimal data related to left
column of ASCII data
