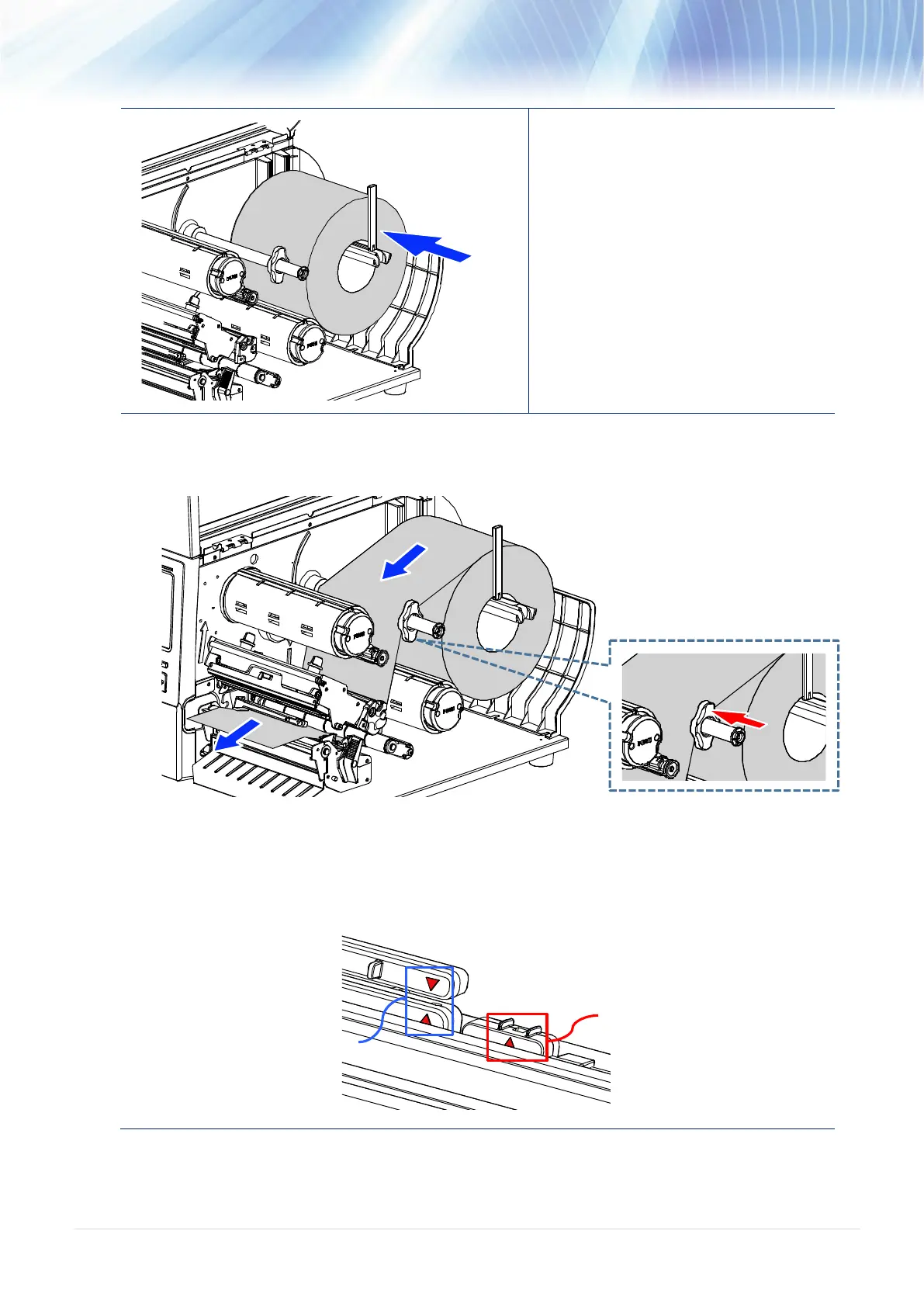

4. Place the roll of media on the label
supply spindle and push it to the end
of label spindle. Install the label roll
guard gently to fit the width of label
roll.
5. Pull label roll leading edge forward through the media guide bar, damper, media sensor (green)
and place the label leading edge onto the platen roller. Adjust the rear label guide (green) to fit
the width of the label. Move the media sensor at the correct position.
Note:
* The sensor location is marked by a triangle mark
at the sensor housing.
* The media sensor position is moveable, please make sure the gap or black mark is at the
location where media gap/black mark will pass through for sensing.
guide
sensor
