TSC Printronix MB240T User Manual

37

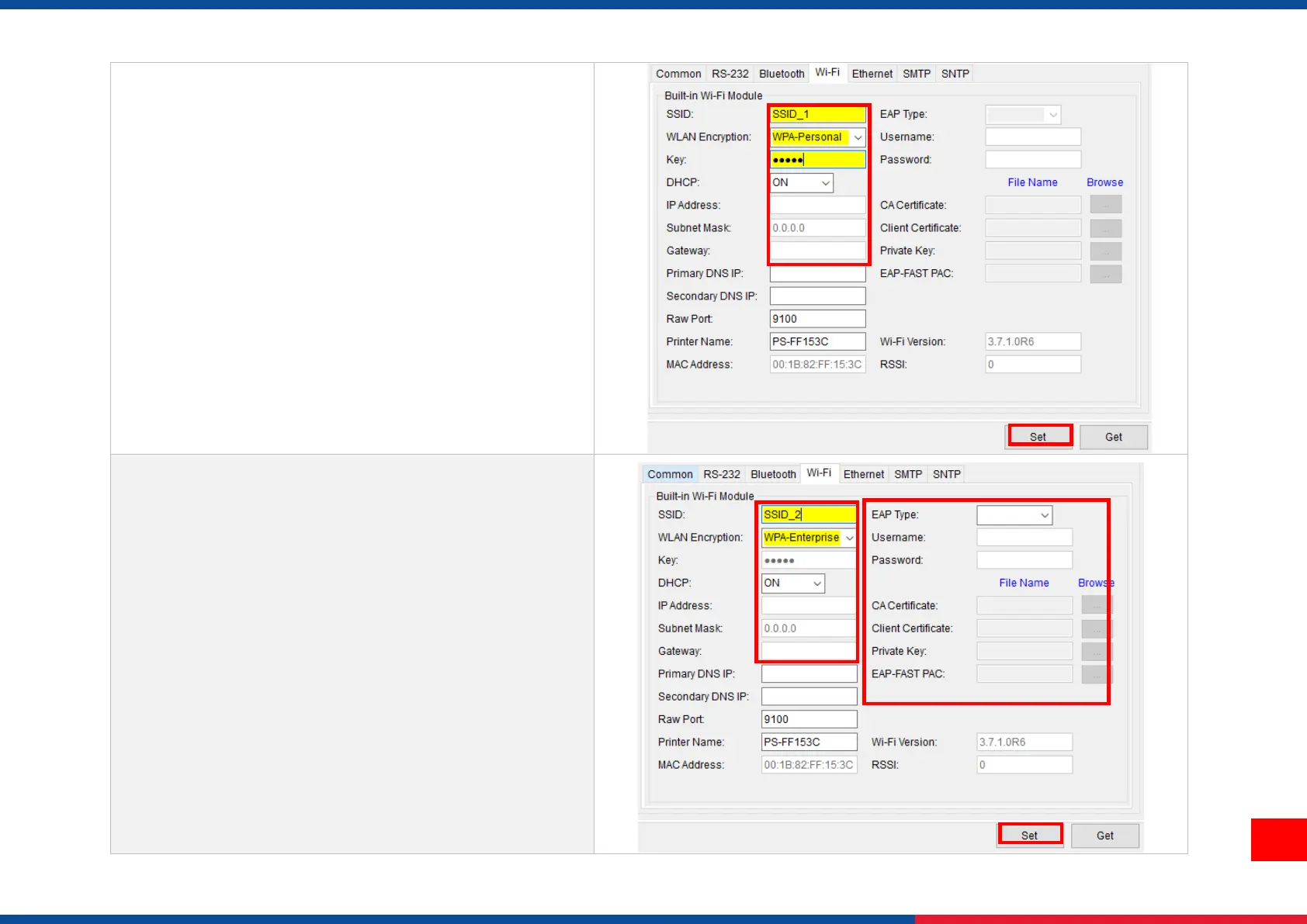

For WPA-Personal
I. Fill-in the SSID.
II. Select the Encryption option to WPA-Personal.
III. Fill-in the Key.
IV. Select DHCP to ON. (For OFF option, please fill-in the
IP Address, Subnet Mask and Gateway)
V. After setting, click the Set button.
Note:
Before setting, the entered field will be shown in yellow for
reminding.
On DHCP, user can change the printer name by another
model name in “Printer Name” field.
User also can change the raw port in “Raw Port” field.
For WPA-Enterprise
I. Fill-in the SSID.
II. Select the Encryption option to WPA-Enterprise.
III. Select DHCP to ON (For OFF option, please fill-in the IP
Address, Subnet Mask and Gateway)
IV. Select the EAP Type option. (For EAP-TLS option,
please upload the CA and Key for mutual authentication,
integrity-protected cipher suite negotiation, and key
exchange between two endpoints.)
V. After setting, click the Set button.
Note:
Before setting, the entered field will be shown in yellow for
reminding.
On DHCP, user can change the printer name by another
model name in “Printer Name” field.
User also can change the raw port in “Raw Port” field.
1
2
3
2
1

TSC Printronix MB240T Specifications

General

Type	Industrial Barcode Printer
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Max. Print Speed	6 ips
Max. Print Width	4.09" (104 mm)
Media Type	Label, Tag, Ticket
Media Core Diameter	1" (25.4 mm)
Ribbon Core Diameter	1 inch
Interface	USB, Serial, Ethernet
Power	100-240 VAC, 50/60 Hz
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET, PDF417, QR Code, Data Matrix, MaxiCode
Operating Temperature	41°F to 104°F (5°C to 40°C)
