9

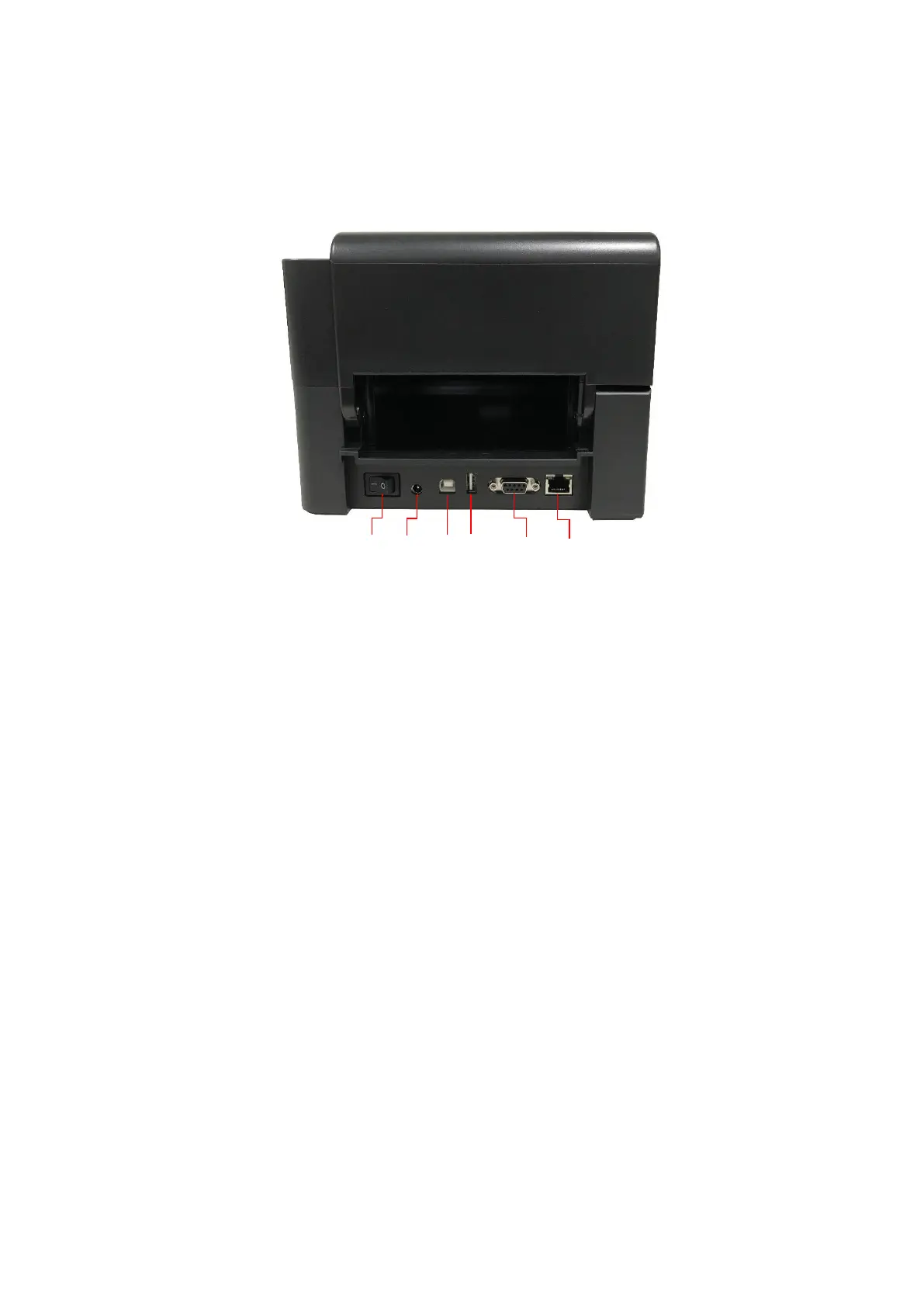

2.2.3 Rear Vie
w
1.
Power switch
2.
Power jack socket
3.
USB interface (USB
2.0/
Hi
-Speed mode)
4.
USB host (
T
E210/TE310 Seri
es only)
5.
RS
-232 interface (
TE210/TE310 Series
only)
6.
Ethernet inter
face (TE210/TE310
Series only
)
Note:
The interface picture he
re is for reference on
ly. Please refe
r to the product specification
for
the interfaces availabilit
y.
1
2
3
6
5
4
18
20
Table of Contents
Table of Contents
9
Introduction
11
Product Introduction
11
Product Features
12
Printer Standard Features
12
Printer Optional Features
13
General Specifications
14
Print Specifications
14
Ribbon Specifications
15
Media Specifications
15
Operations Overview
16
Unpacking and Inspection
16
Printer Overview
17
Front View
17
Interior View
18
Rear View
19
Setup
20
Setting up the Printer
20
Loading the Ribbon
21
Loading the Media
24
Loading the Roll Labels
24
External Label Roll Mount Installation (Option)
27
Loading the Media in Cutter Mode (Option)
29
Loading the Media in Peel-Off Mode (Option)
31
LED and Button Functions
33
LED Indicator
33
Regular Button Functions
33
Power-On Utilities
33
Gap/Black Mark Sensor Calibration
34
Gap/Black Mark Calibration, Self-Test and Dump Mode
35
Printer Initialization
38
Set Black Mark Sensor as Media Sensor and Calibrate the Black Mark Sensor
39
Set Gap Sensor as Media Sensor and Calibrate the Gap Sensor
39
Skip AUTO.BAS
40
Diagnostic Tool
41
Start the Diagnostic Tool
41
Printer Function
42
Calibrating Media Sensor by Diagnostic Tool
43
Auto Calibration
43
Troubleshooting
44
Common Problems
44
Maintenance
46
Revise History
47
