Product Overview 1-3

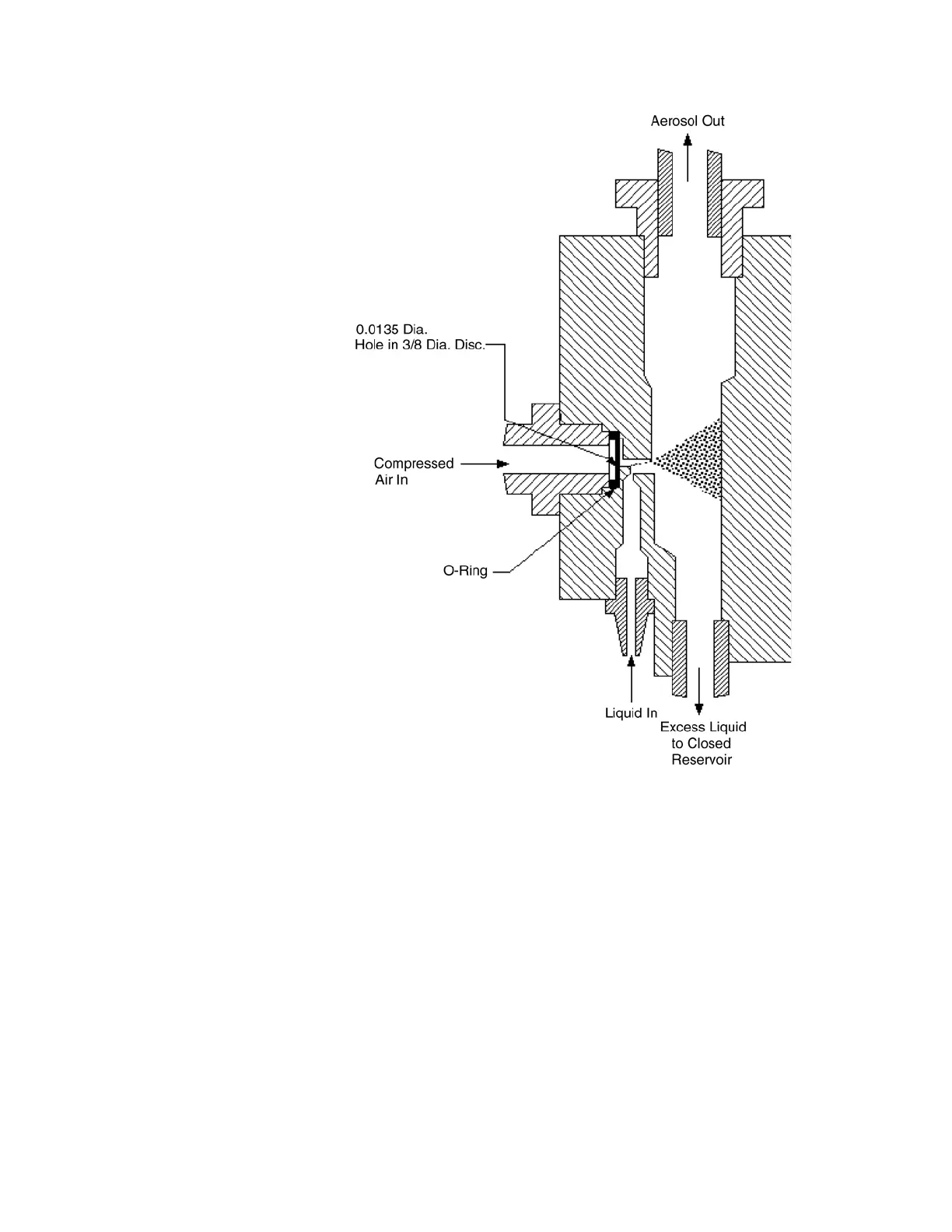

Figure 1-2
Model 3076 Schematic of the Atomizer Assembly Block
The Atomizer may be used in either recirculation mode or
nonrecirculation mode. In the recirculation mode, recommended for
water-based solutions, the liquid is drawn in from a 1-liter bottle
(supplied) and the excess liquid drains into the same bottle. In the
nonrecirculation mode, recommended for volatile solvents, either an
extra reservoir bottle or a syringe pump should be used. When
using an extra bottle, the liquid is drawn from one bottle and the
excess liquid drains into a separate reservoir bottle. When using a
syringe pump to supply fresh solution to the atomizing jet, one
reservoir bottle is needed in the setup to drain the excess liquid.
See Chapter 3 for instructions on setting up the Atomizer in
recirculation and nonrecirculation modes.
