Setting Up the Atomizer 3-7
4. Measure and cut ¼-inch Poly-Flo tubing to connect the side
port of the Atomizer assembly block to the Model 3074B Filtered
Air Supply or to the customer’s compressed air source.
5. Connect the right-angled Swagelok fitting on the cap to the side
fitting at the top of the Atomizer (side port of the Swagelok tee)
with ¼-inch Poly-Flo tubing. This line equalizes the pressure
between the Atomizer and the bottle and thus allows the excess
liquid to drain into the bottle. The Swagelok plug is not needed
in this mode.
6. Remove the cap and ferrules from the top opening of the
Swagelok tee at the top of the Atomizer assembly block and put
in the ½-inch Swagelock port connector (part no. 1602153) as
shown in Figure 3-2 to connect to the conductive tubing for
polydisperse aerosol coming out from the Atomizer.
Refer to Chapter 4, “Operating the Atomizer,” for information on
connecting compressed air to the Atomizer.

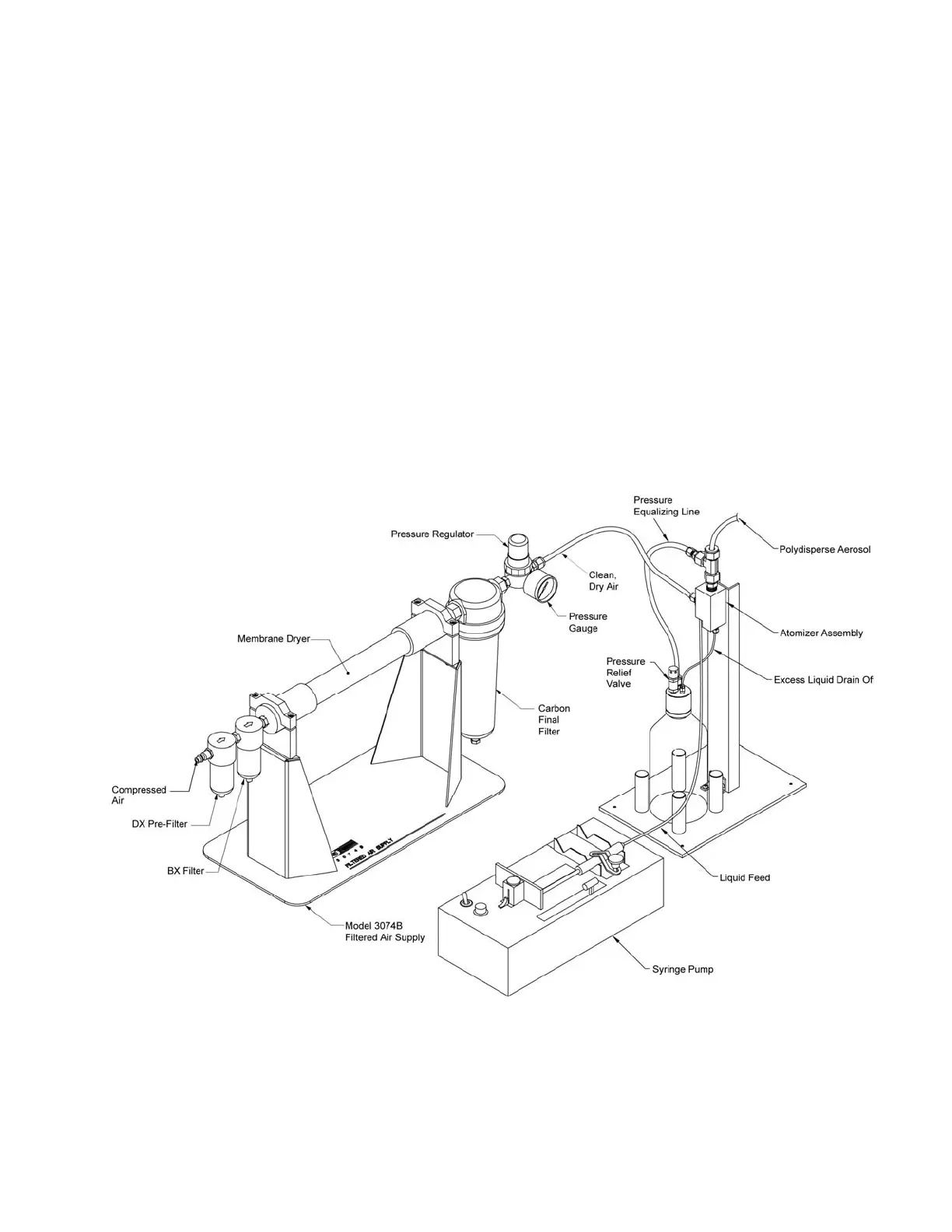

Figure 3-5
Model 3076 Atomizer in the Nonrecirculation Mode with a Syringe Pump
