Setting Up the Atomizer 3-3

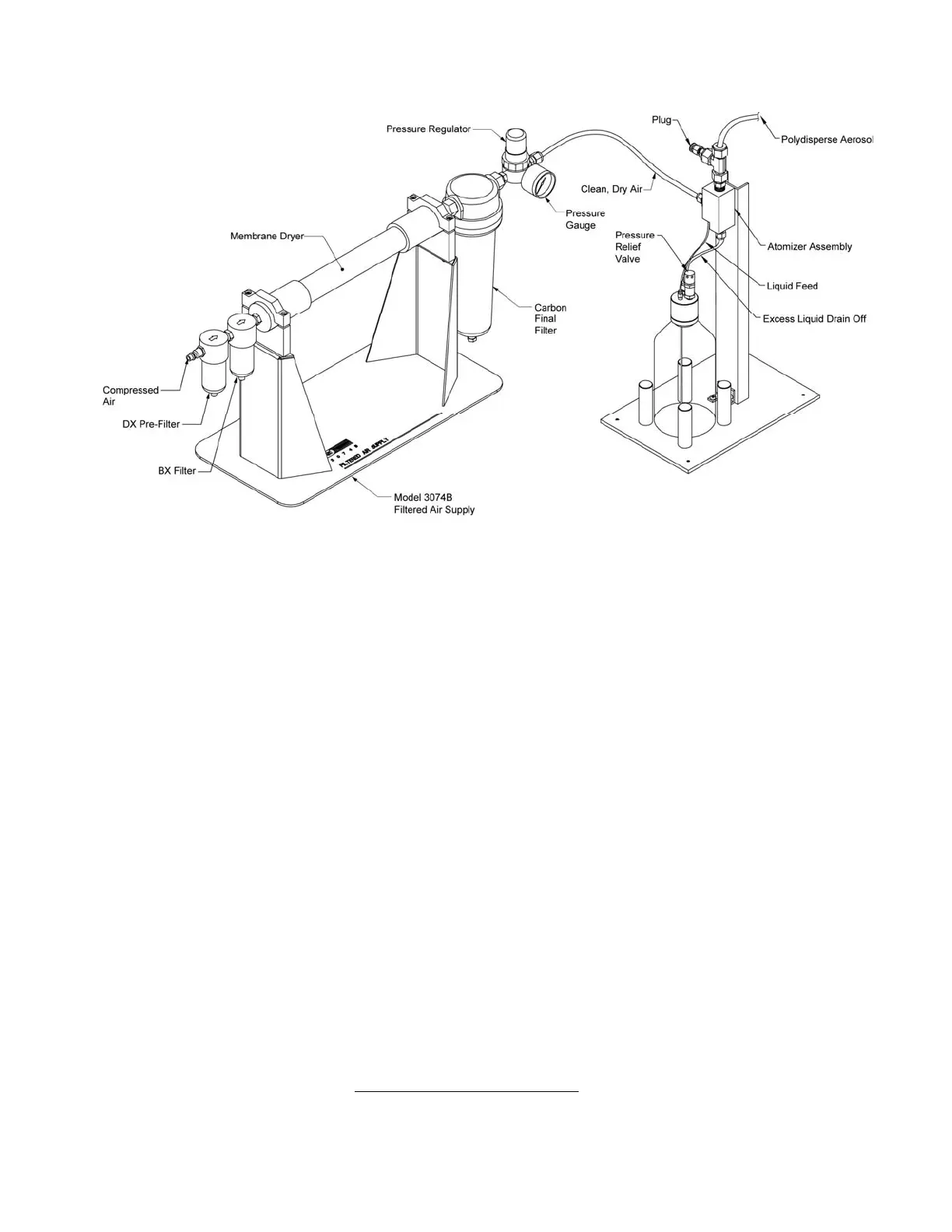

Figure 3-1
Model 3076 Atomizer in the Recirculation Mode
To connect the Atomizer in the recirculation mode, refer to
Figure 3-1 and follow these steps.
1. Measure and cut the 14-gauge Teflon tubing for the liquid feed
line. Connect the tubing between the feed opening at the bottom
of the Atomizer assembly block and the small hose fitting on the
white bottle cap.
Note: The tubing is easier to slip on if you first stretch out the
inside diameter of its two ends with a pencil and use a
small square of sandpaper folded over the tube to grip
and support it.
2. Measure and cut ¼-inch Poly-Flo tubing for the excess liquid
drain line. Connect one end of the tubing to the excess liquid
connector at the bottom of the Atomizer assembly block and the
other end to the ¼-inch Swagelok
®
fitting at the top of the
bottle.
3. Measure and cut ¼-inch Poly-Flo tubing from the Atomizer
assembly block to either the Model 3074B Filtered Air Supply or
to another source of clean, dry, compressed air.
®
Swagelok is a registered trademark of Swagelok Co., Solon, OH 44139
