TSI Flowmeters Ltd.
GENERAL2.1
Weight 12.0 kg including battery pack
& instantaneous adaptors
Dimensions 390 (L) x 240 (W)
x 210 (H) mm
Power Internal Battery Pack. DC
12V @ 250 mA
Case Material Corrosion resistant LM25
aluminium
Operating Temp. -10°C ~ +50°C
Adaptors 2.5” BSPM or BS
Instantaneous (4.0” BSPM for
Flowmaster 400)
2.5” NST for USA and other
adaptors available on request
Colour Firemen Red & anodised
aluminium
Sensor Type Electromagnetic
Range 30 - 3,000 lpm carriage return
By changing the sensor
control pcb, range can be
extended to 5,000 lpm
Resolution 50 ~ 750 l/min ± 15 l/min
750 l/min ~ ±2%
Standard Functions Flow reading
Totaliser reading
Casing Material Corrosion resistant ADC6-12
(JIS) aluminium (anodised)
Pressure rating 49 bar
Digital LCD display gauge
• 4 digits
• 17.6mm high digits
• Analog bar graph
• Internal backlighting
Type Bourdon Tube
Range 0 ~ 10 bar, ±1%. (0-7, 0-15,
0-20, 0-25 bar also supplied)
Dial Analog type, 60 mm dial
Battery Type Nickel-metal hydride, NiMH
Rated Capacity 2.2 Ah (10 hours continuous
operation)
Recharging Mains operated recharger is
supplied
In-car charger Available as separate item
SPECIFICATION
2
6
FLOWMETER2.2
PRESSURE GAUGE2.3
BATTERY PACK2.4
FLOWMASTER 4002.5
Weight 15.0 kg including battery pack
and 100mm ttings
Dimensions 510 (L) x 240 (W)
x 210 (H) mm
Streamlined Pressure loss is minimal
thanks to the use of tapered
adaptors from 65mm bore to
100mm adaptors
Adaptors 100mm French adaptors
tted onto 100mm BSPM
Other adaptors available on
request
Other specications as per Flowmaster 250

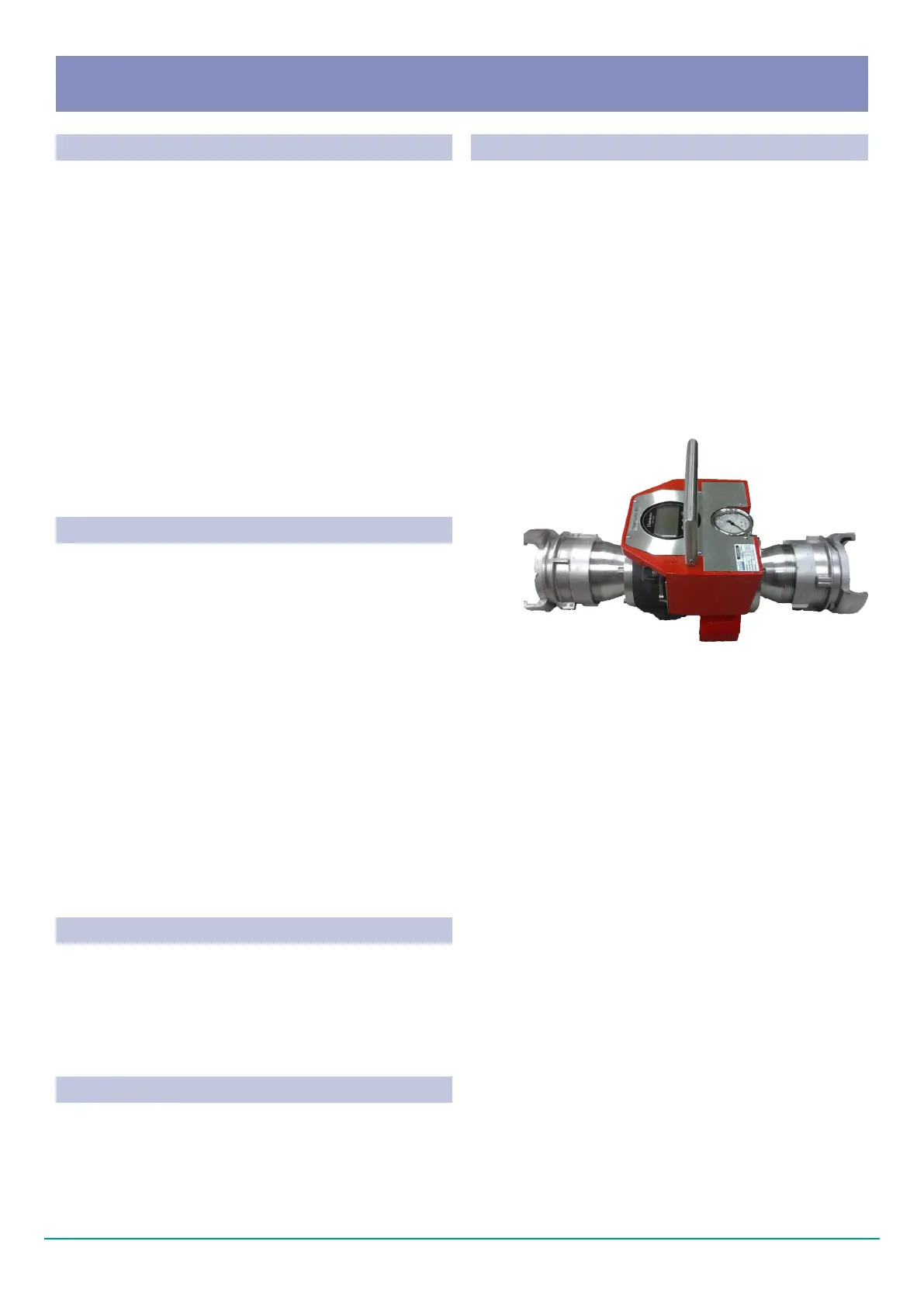

Fig. 2.1 Flowmaster 400
