TSI Instruments FHC50 User Manual

Technical Section 37

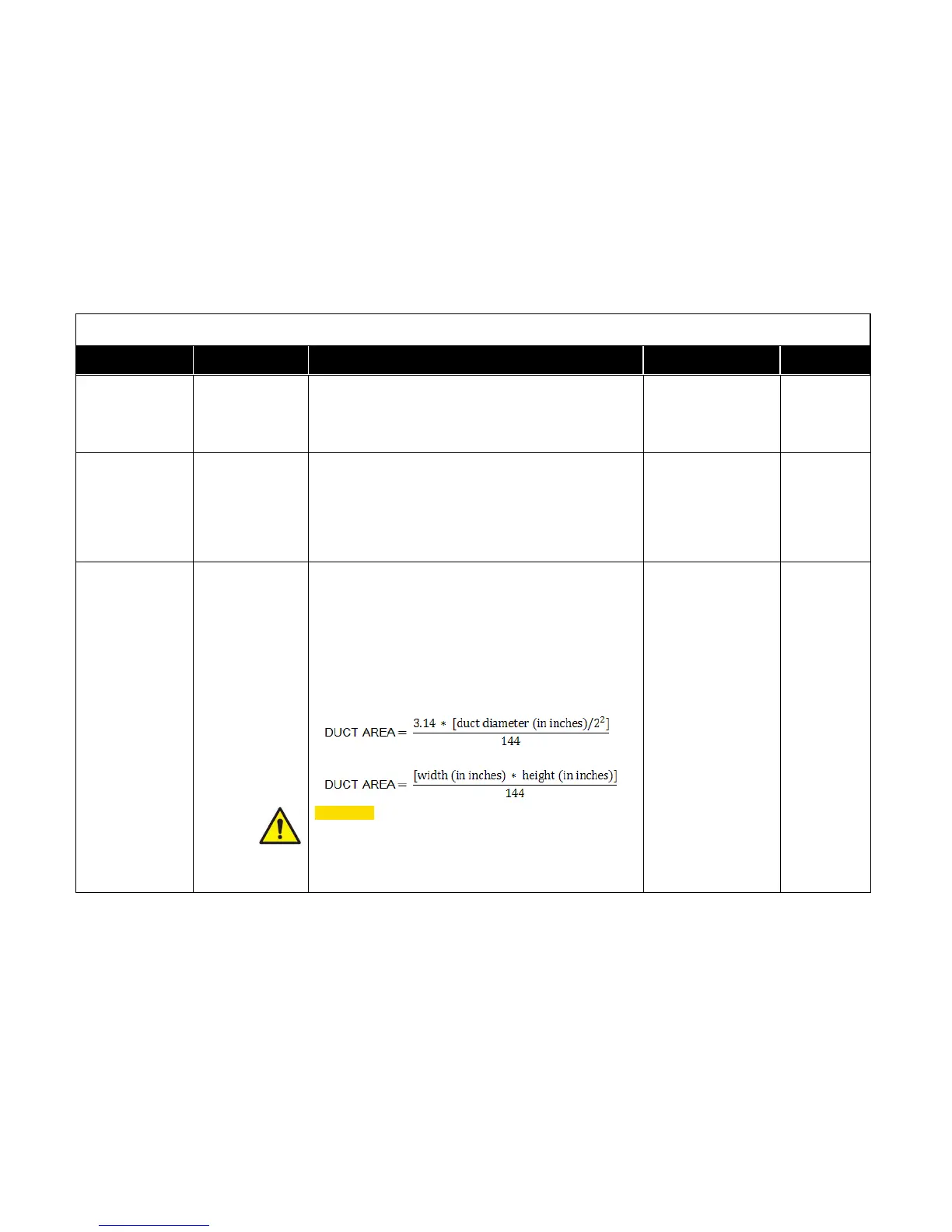

CALIBRATE FLOW SUBMENU
LINEAR FLOW STATION ONLY
MENU ITEM
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
FLOW DEVICE
SELECTED
FHM10 and
FHC50
FLOW DEVCE =
This item displays the FLOW DEVICE that was previously
selected through the CONFIG WIZARD item.
Lin Flo Sta
Press Flo Sta
LOM Venturi
6pt Venturi
Calculated
Lin Flo Sta
(Read-only
value)
RESET FLOW
CALIBRATION
FHM10 and
FHC50
FLOW RESET
CAL
The RESET CAL menu item zeroes out the flow calibration
adjustments. When this menu item is entered, the controller
will prompt the user to verify that they want to do this by
displaying the message “Are You Sure.” Entering YES
resets the flow calibration factors for this flow device to
defaults and shows the message “Changes Saved.”
Entering NO will cancel the reset.
NONE
FLOW STATION
DUCT AREA
FHM10 and
FHC50
FLO STA AREA
The FLO STA AREA item is used to program the cross
sectional area of the duct where the flow station is mounted.
Since the flow station is used to measure duct velocity, the
FLO STA AREA is necessary to calculate the duct air flow.
NOTE: The DIM does not compute duct area. The area
must be first calculated and then entered into the
unit.
Use the following equations to calculate the duct area (in ft
2
)
For round ducts
For rectangular ducts
0 to50.00 ft
2
(0 to 4.6450 m
2
)
0.00 ft
2
(0.0000 m
2
)
WARNING: If the proper FLO STA AREA is not
programmed into the Model FHC50, the flow
measurement will be incorrect. Thus, all the
other information that uses the flow
measurement, such as the flow alarms and
percent sash open, will also be incorrect.
