Instrument Operation 5-51
Operat i n g in E xter n a l C ontrol M o d e
When operated as part of an SMPS system, Aerosol Instrument Manager
software on a PC performs data collection and analysis and has control of
the instrument. When a scan is initiated from a PC using Aerosol
Instrument Manager software, the following screen appears on the
classifier display:

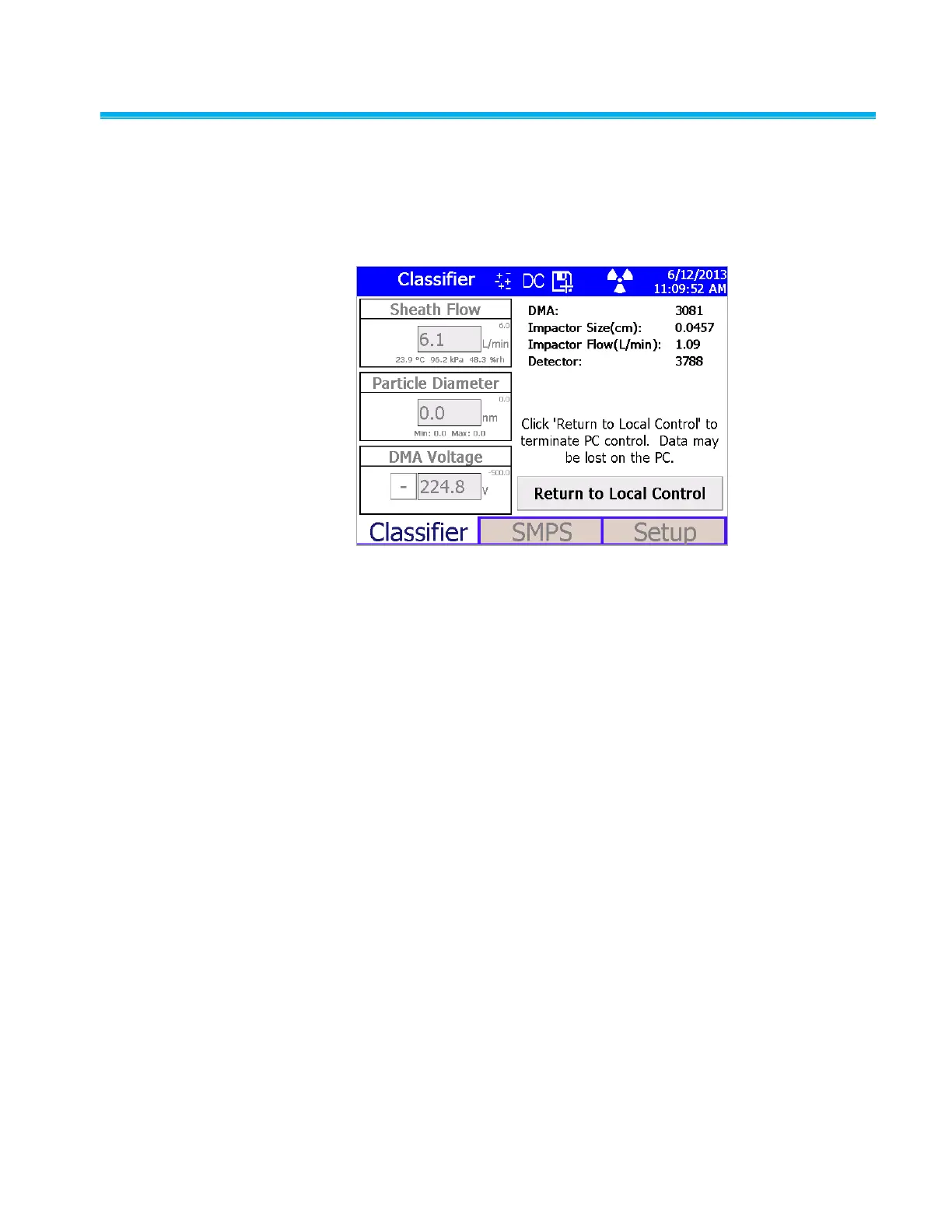

Figure 5-35
Electrostatic Classifier Display Screen for External Control
If the button Return to Local Control is pressed, any Aerosol Instrument
Manager software scan in process will be terminated and the software will
indicate that the classifier has been returned to local control.
For complete details about operating as part of an SMPS system, refer to
the Aerosol Instrument Manager
®
Software for SMPS™ Instruction Manual
(part number 1930038).
