Unpacking and Setting Up 2-19

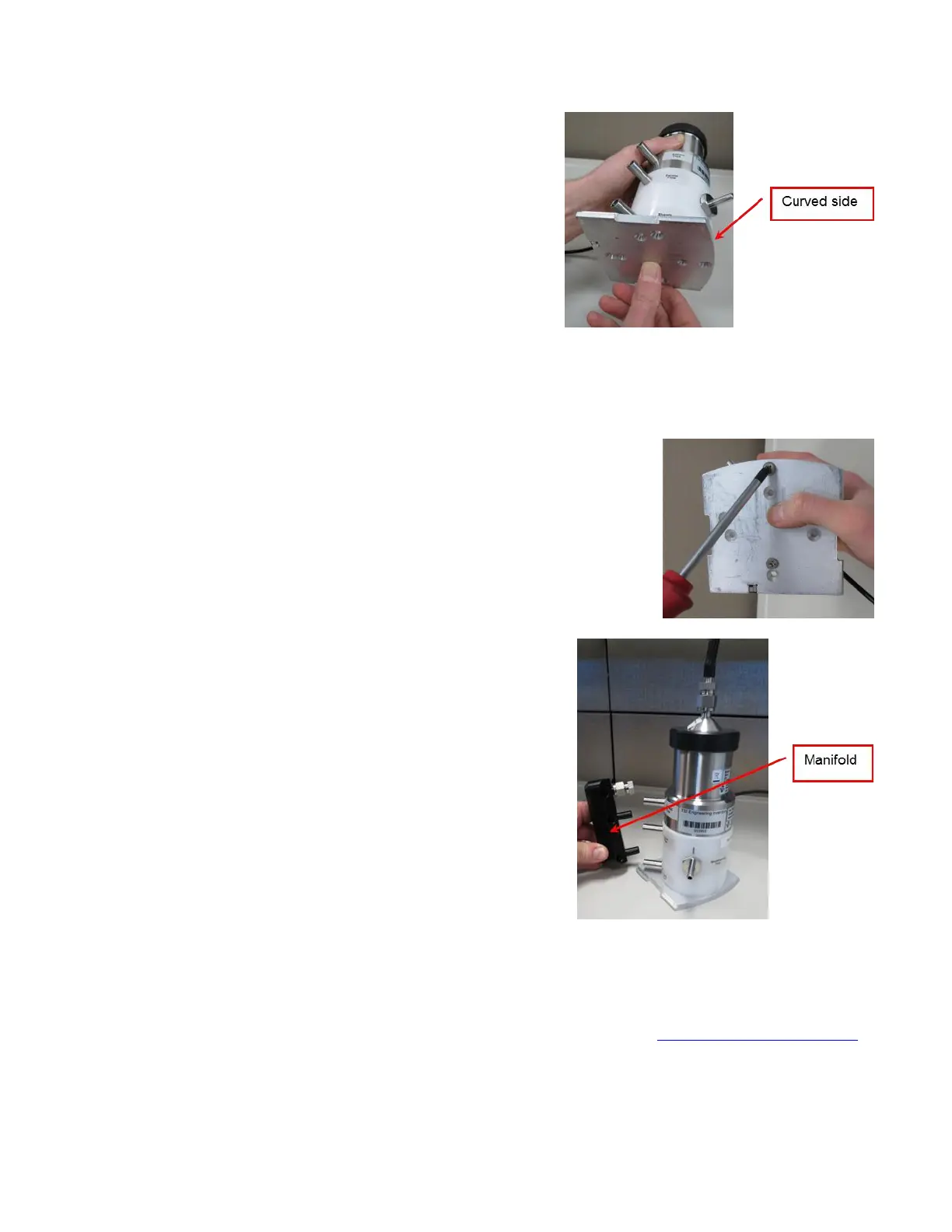

10. Fit the new base plate
over the base of the
Nano DMA in the
correct orientation. The
curved side of the base
plate is at a 45° angle
with the direction of the
Monodisperse flow
outlet (as shown in the
photo).
Note: If the base plate
is attached in an
incorrect
orientation, it will
not fit on the
classifier.
11. Using the screws you removed in
step 8, screw the new base plate
into place on the Nano DMA.
12. Apply the Sheath Flow + label on
top of the existing Sheath
Flow label.
13. Apply the Sheath Flow – label on
top of the existing Excess
Flow label.
14. Remove the manifold
from the upgrade kit.
15. Push the manifold onto
the three ports on the
Nano DMA.
16. Follow these steps to program the base plate of the DMA:
i. Locate the serial number sticker on side of DMA, and record
on a piece of paper. It will be used in the programming steps
discussed below.
ii. Install DMA onto the 3082 (see Chapter 2, “Installing a DMA”).
iii. Turn on the 3082.
