Indicators/Icons on the Display
The Edge is equipped to notify you of operational/status updates. These
indicators (or alert notices) are located on the top right-hand side of the
screen. Table 4-1 explains the function of each indicator.
Table 4-1
Indicators (i.e., run, stop, battery, and overload)
Stop—indicates the dosimeter is currently in the stop
status (opposed to run).
Run—indicates the dosimeter is currently logging a study.
Battery charge status—when completely shaded in black,
this indicates full battery power. If half shaded, this
represents ½ battery power
Overload—will appear whenever the input signal exceeds the
range of the dosimeter.
Viewing Measurements on the Display
The up/down arrows on the keypad of the dosimeter enable you to move
through the various measurements. For specific information on the views
of the Edge, please see “Views on the Edge”).
Viewing Measurements
1. Press the or arrow. This will move you through the views on
the display.
If you enabled only one measurement to appear on the display, when
you press the up/down arrows it will not show any other measurement
values. (To enable additional measurement settings, see the “Edge
Display Screen”.)
Measurement Views on the Edge

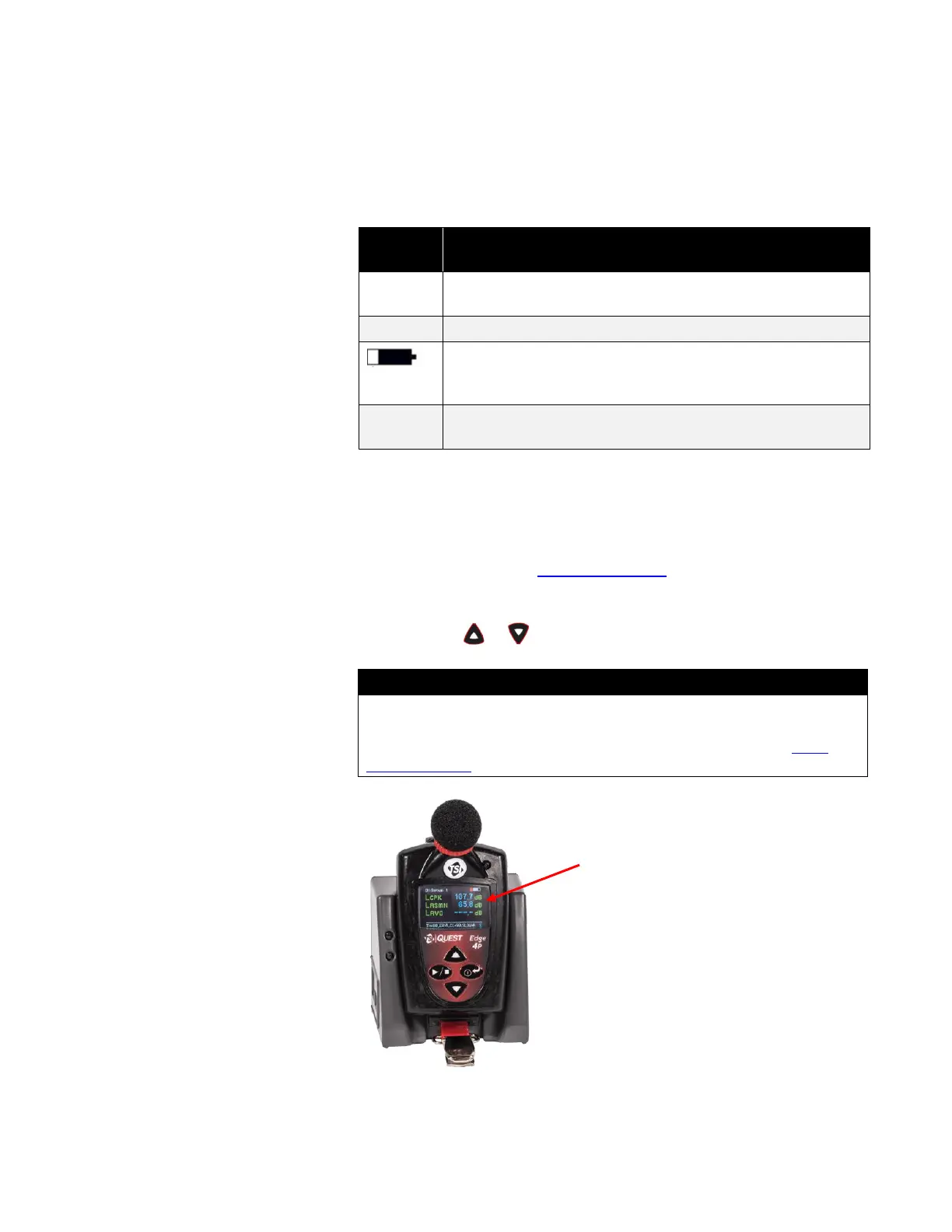

Figure 4-9
Measurement View on the Edge
To Next Page
