TSL Tallyman TM1 User Manual

TallyMan V1.81 on
|
Installation
25
Tally outputs
The Tally Outputs consist of isolated relay contact pairs. Current loading is rated at 0.5A at 125 VAC,
1A at 24 VDC, non-inductive. Common (ground) appears on Pin 36.

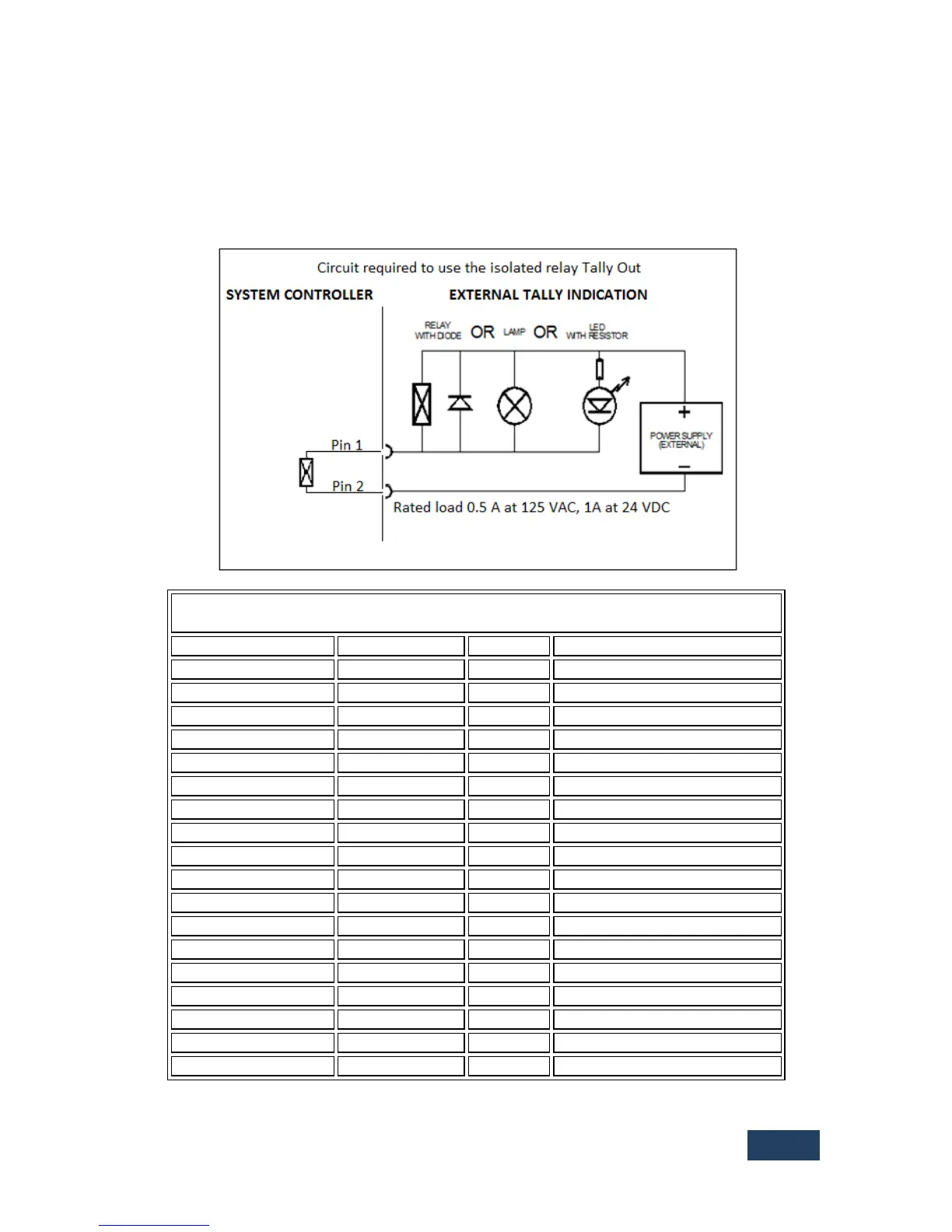

The example below demonstrates the circuit required for Tally 33 on the Tally 2 D37 connector, Tally
34 uses pins 3 + 4, Tally out 35 uses pins 5 + 6.
TALLY 2 OUTPUT CONNE
CTOR D37 SOCKET
1
TALLY 33
20
TALLY 42
2
TALLY 33
21
TALLY 43
3
TALLY 34
22
TALLY 43
4
TALLY 34
23
TALLY 44
5
TALLY 35
24
TALLY 44
6
TALLY 35
25
TALLY 45
7
TALLY 36
26
TALLY 45
8
TALLY 36
27
TALLY 46
9
TALLY 37
28
TALLY 46
10
TALLY 37
29
TALLY 47
11
TALLY 38
30
TALLY 47
12
TALLY 38
31
TALLY 48
13
TALLY 39
32
TALLY 48
14
TALLY 39
33
0v
15
TALLY 40
34
+24V
16
TALLY 40
35
Ext Voltage Ref Pin
17
TALLY 41
36
0v
18
TALLY 41
37
-
19
TALLY 42
