6. ASSEMBLY

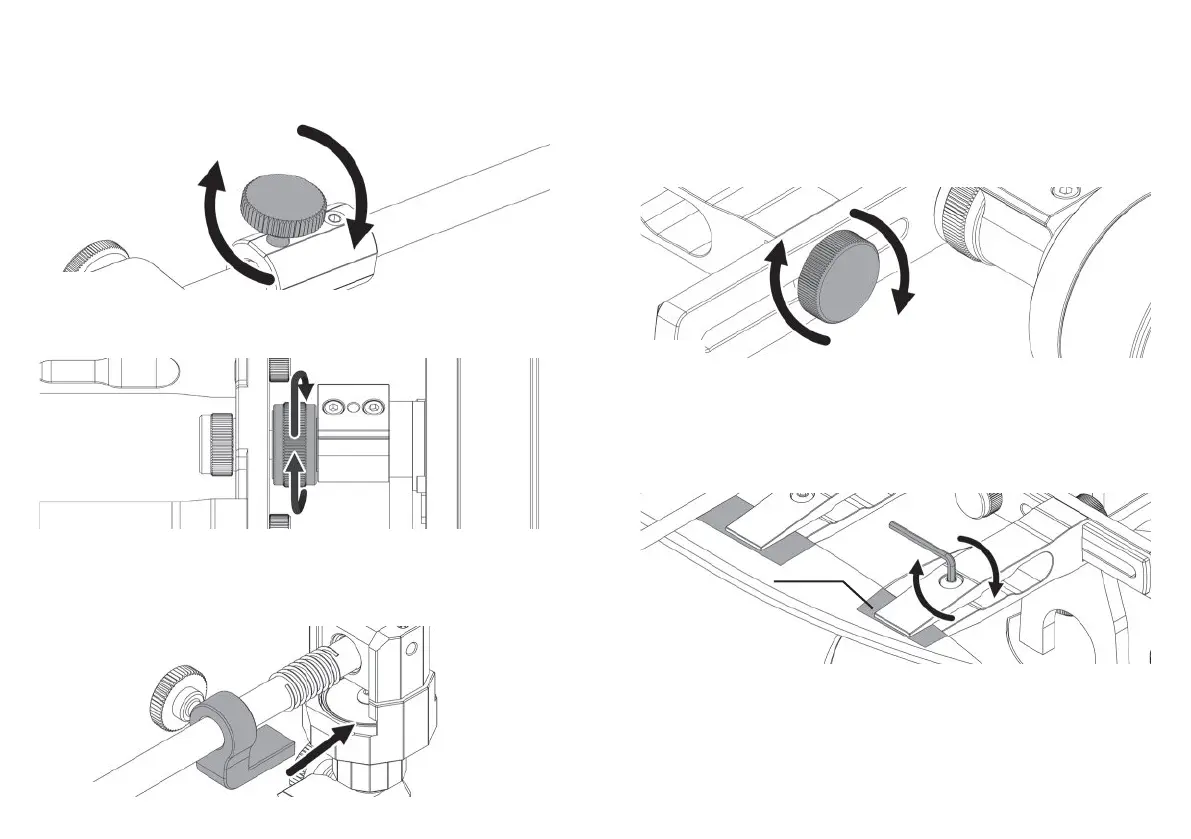

6.1 Install the abrasive holder into the bushing-coupling of the
guide rod and x it.
6.4 Mount the clamp to the frame and tighten the locking
screws. It is possible to use different types of clamps together.
Position the clamps at the required distance from each other
depending on the length and geometry of the blade.
6.2 Turn the control ring to set the desired locking
force.
6.3 Place the abrasive holder rod in the hinge unit, position the
springs, stroke limiter and parking boot as shown. The location
of the parking boot should allow it to be mounted on the disk
of the hinge unit.
6.5 Р7.5 Position the knife in the clamps and x it with one
screw, use a 4mm hex key* for this. Do not over-clamp. The jaws
must be parallel. To release the blade, loosen the screws in the
clamps.
6.6 To avoid damaging the surface of coated or polished knives,
apply masking tape to the place where the jaws come into
contact with the blade.
(g. 2)
(g. 3)
(g. 4)
(g. 5)
(g. 6)
