7. SETTING THE SHARPENING ANGLE
For correct operation of the electronic angle nder it is
necessary to calibrate it. To do this, use the calibration prism
included in the package.
Calibration order:

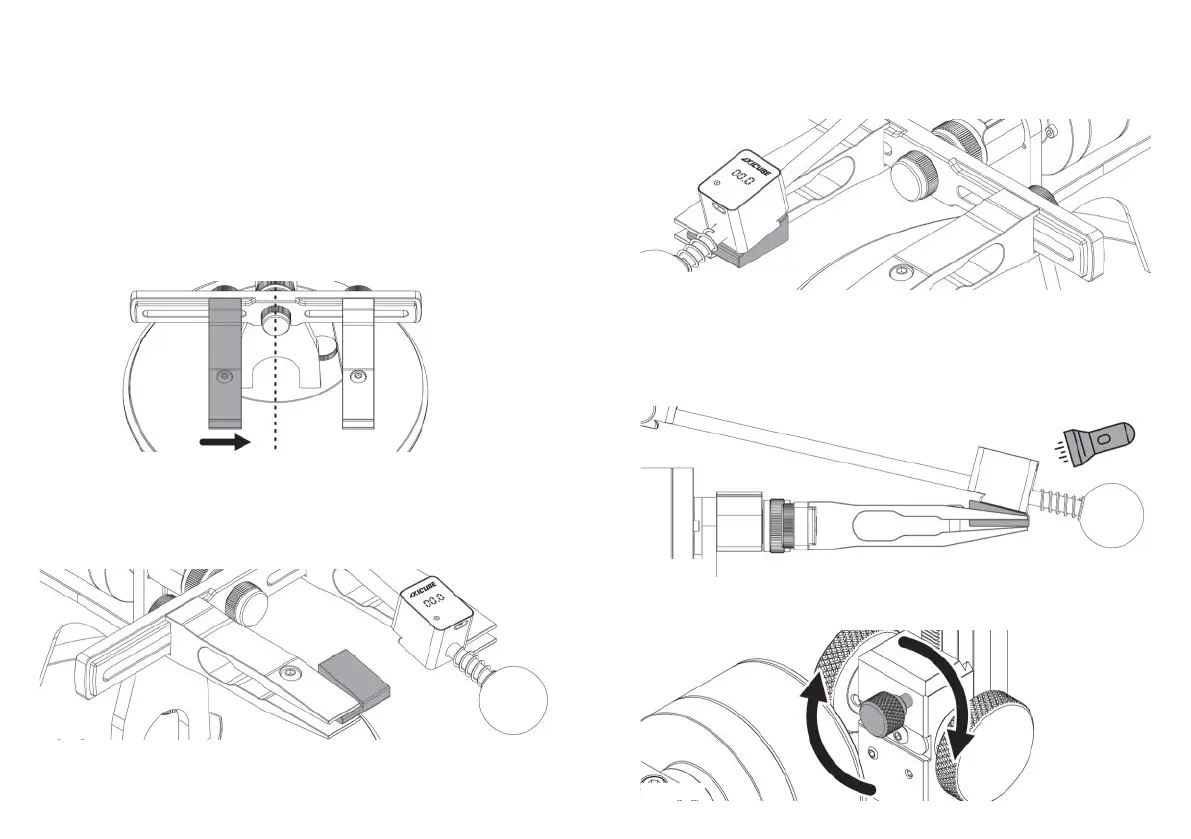

1. Place the clamp on the left side of the TSPROF K03
device frame as close as possible to the center of the rotary
mechanism frame (g. 7).
(g. 7)
2. Start adjusting the angle nder. Place the calibration
prism close to the clamp without any gaps, so that it does
not protrude beyond the jaws of the clamp. Secure the clamp
tightly with a key (g. 8).
(g. 8)
3. Place the angle nder body on the prism and adjust its
position with the stops so that it does not go beyond the prism
(g. 10).
(g. 9)
(g. 10)
4. Adjust the height of the rack and pinion lift with the
knobs so that there is no gap between the angle nder and the
prsm. Use any illuminator to verify that there is no gap.
(g. 11)
5. Fix the lift with the locking screw.
