Tsun G3 - Step 4. Connect the AC end cable of each cable sec

G3&G3 plus Microinverter
V1.0
19
TSOL-MS400
11
TSOL-MS350
13
TSOL-MS300
15

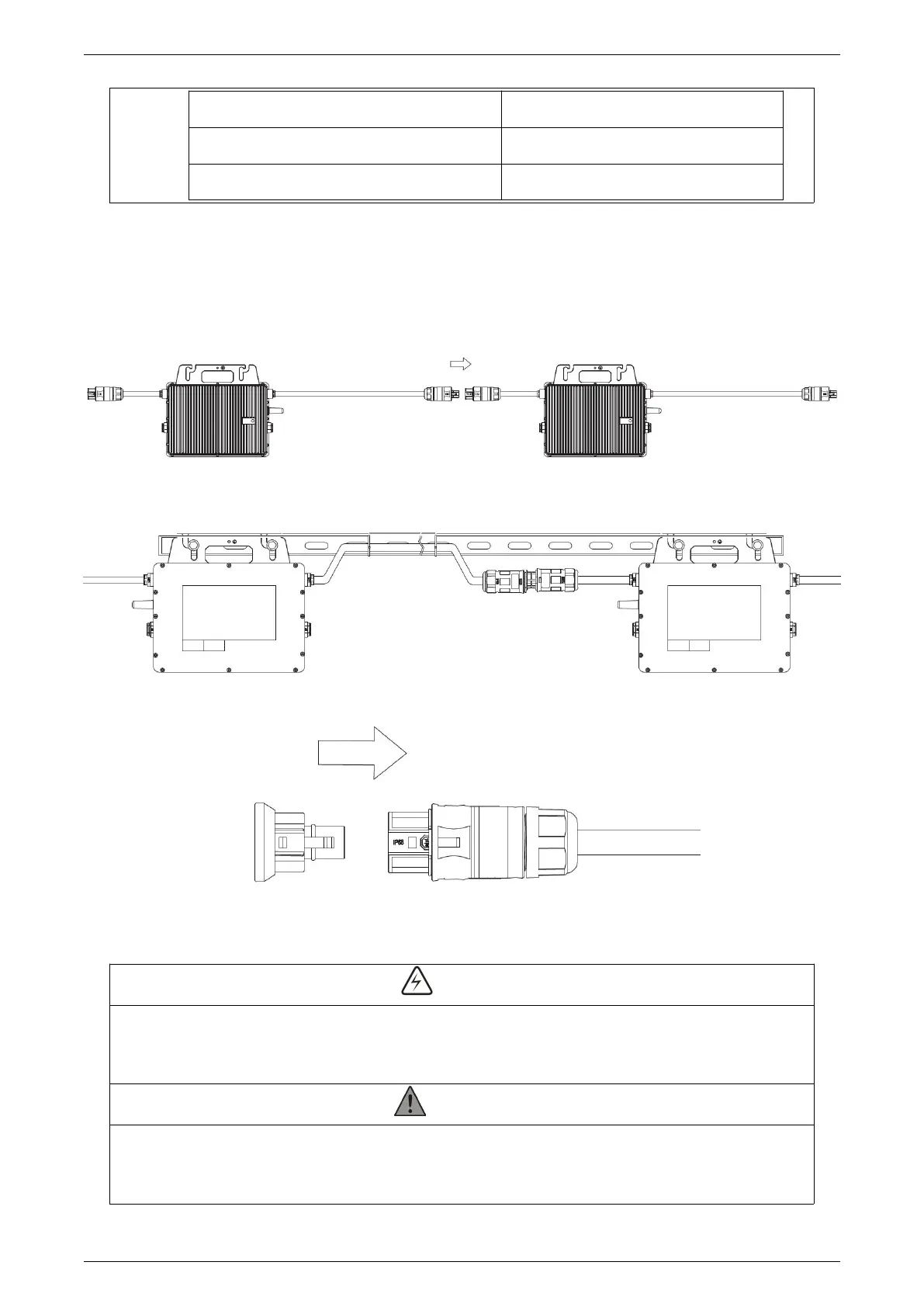

Every micro-inverter could be connected to the other one by its AC cables.
Plug the female AC connector of one microinverter into a male AC connector of another
microinverter to form a continuous AC branch circuit.
Use Nylon cable ties to fix the AC cables onto the frame.
Use a Connector Protective Cap to make sure the unused AC connector to be closed.
Step 4. Connect the AC end cable of each cable section
DANGER
·Do not install the AC junction box without first removing AC power from the system.
·To prevent electrical hazards, make sure the micro-inverter system is disconnected from the
home distribution network and the AC breaker is open.
WARNING
·Ensure that all AC cables are correctly wired and that none of the wires are pinched or
damaged.
·Use AWG 12 (4 mm²) cable for AC end cable.
