1. GENERAL DESCRIPTION
1.4.3 Physical specifications
• Dimensions:
– Width: 306 mm
– Height: 212 mm
– Depth
1
: 34 mm
– Depth, incl. connector
2
: 46 mm
• Operating ambient temperature: -30 to +70
○
C
• Storage temperature: -30 to +85
○
C
• IP6K5 rated housing
Other device dimensions, including tolerances, weight and other physical specifications for Vision 312
can be found in the Product Drawing (PD) [1]. Additional physical specifications, including thermal re-
quirements, can be found in the Mounting Requirements Document (MRD) [2].
1.4.4 Block diagrams
1.4.4.1 Vision 312

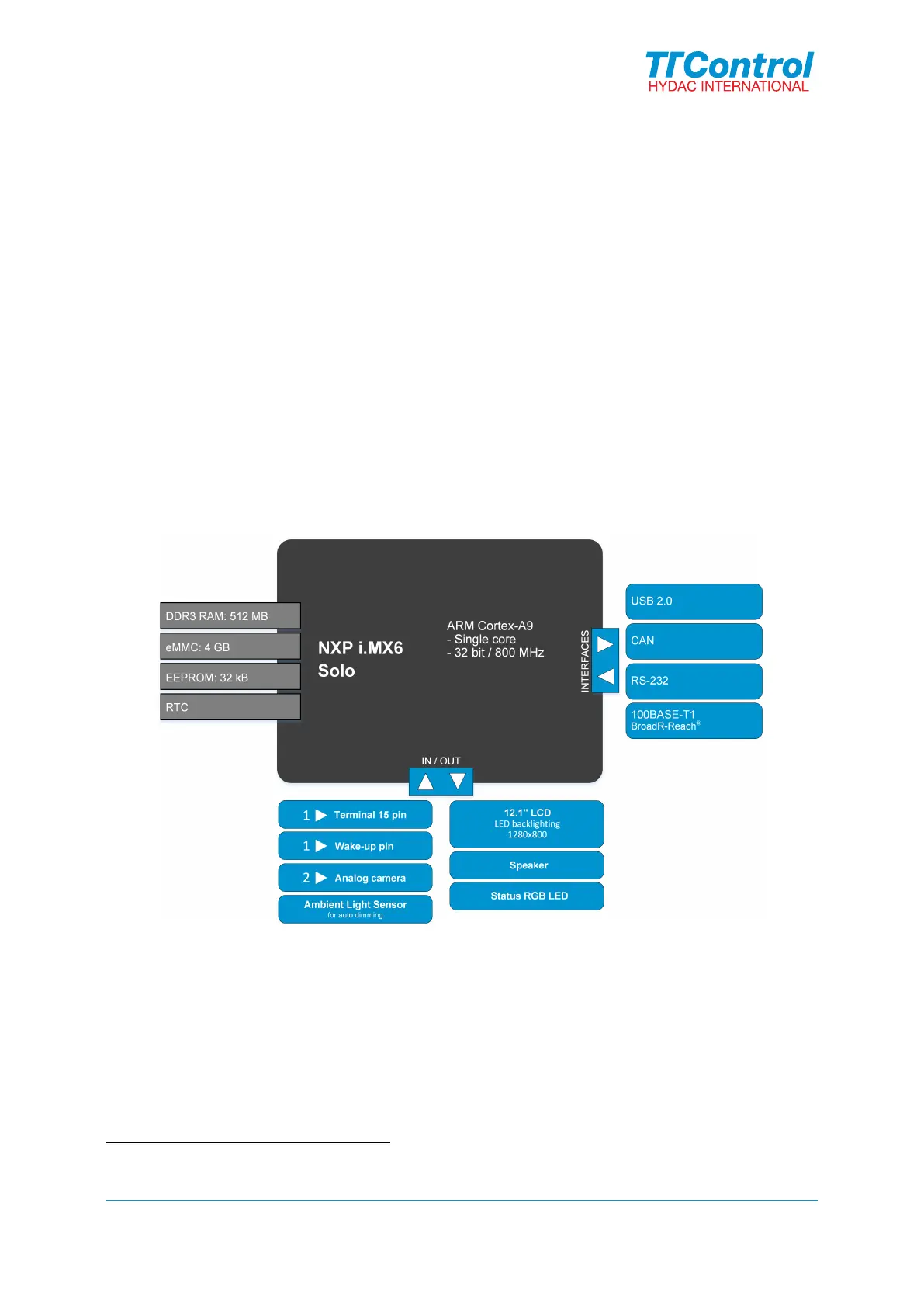

Figure 1: Block diagram for Vision 312 products
1. from front side of display to mounting surface of arm mount at the rear
2. from front side of front frame to the back side of the main connector
