61
ENCORE 2 OVEN SCHEMATIC AND WIRE HARNESSES
Item Description Item Part Number
Relay (K1 - Filament) 101273
Relay (K2 - Anode) 101273
Relay (K3 - Monitor) 101273
Relay (K6 - Voltage) 101272
Relay (K7 - All Cooling Fans) 101273
For more detail, see pages A-30 and A-31
in the Appendix.
Encore 2 Oven Schematic and Wire Harnesses
This section provides an overall wiring schematic for the Encore oven. It also provides detailed drawings
of each wire harness with labeled connectors.
The following drawings are provided:
- Relay Schematic (below)
- Oven Schematic (page 62)
- Heater (page 64)
- High Voltage Microwave Circuit 1 and 2 (page 66)
- Low Voltage (page 66)
- Line Voltage (pages 68-71)
- Cooling Fans (page 72)

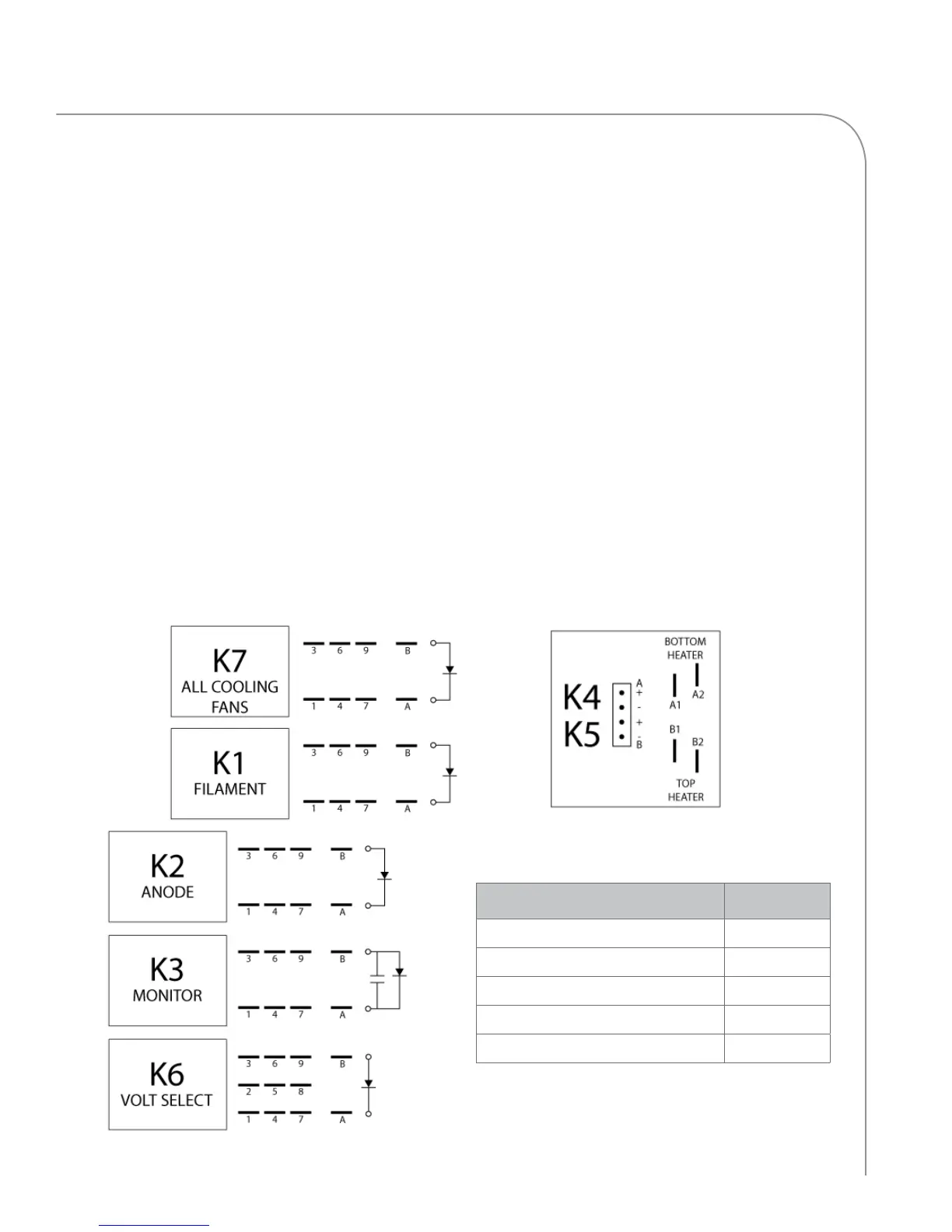

Relay Schematic
To Next Page
