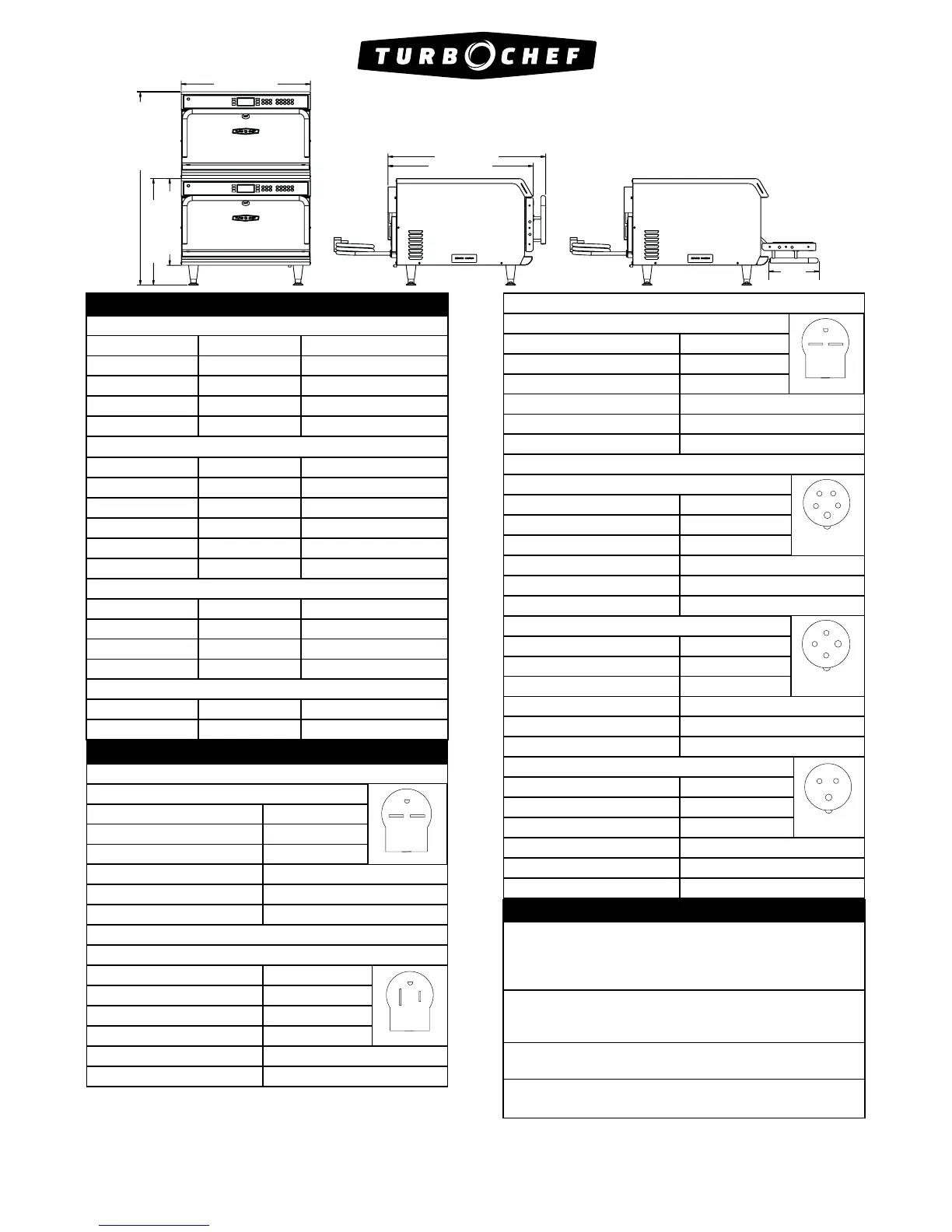

TurboChef HhB User Manual

HIGH h BATCH 2
TM
DIMENSIONS
Single Units
Height 21.4” 544 mm
Width 25.9” 658 mm
Depth 29.2” 742 mm
with handle 31.7” 805 mm
Weight 157 lb. 71 kg
Stacked Units (Stacking Kit Required)
Height 38.8” 986 mm
top unit with legs 42.8” 1087 mm
Width 25.9” 658 mm
Depth 29.2” 742 mm
with handle 31.7” 805 mm
Weight 314 lb. 142 kg
Cook Chamber
Height 8” 203 mm
W
idth 18.75” 476 mm
Depth 16.75” 425 mm
Volume 1.45 cu. ft. 41.1 liters
Wall Clearance (Oven not intended for built-in installation)
Top 2” 51 mm
Sides 2” 51 mm
ELECTRICAL SPECIFICATIONS
UNITED STATES
HHB2 (HHB-8603-1)
Phase 1 Phase
Voltage 208/240 VAC
Frequency 50/60 Hz
Current / Max Circuit Requirement 24 / 30 amp
Cord 10 gauge, 3 wire, 5 ft., SOOW
Max Input 5000 watts
CANADA
HHB2C (HHB-8603-1C)
Phase 1 Phase
Voltage 208/240 VAC
Frequency 50/60 Hz
Current / Max Circuit Requirement 24 / 50 amp
Cord 10 gauge, 3 wire, 5 ft., SOOW
Max Input 5000 watts
LATIN AMERICA
HHB2LA (HHB-8603-1K-2073)
Phase 1 Phase
Voltage 230 VAC
Frequency 50/60 Hz
Current / Max Circuit Requirement 24 / 32 amp
Cord 10 gauge, 3 wire, 5 ft., SOOW
Max Input 5000 watts
EUROPE/ASIA-PACIFIC
HHB2EW (HHB-8603-1W)
Phase 3 Phase
Voltage 400 VAC
Frequency 50/60 Hz
Current / Max Circuit Requirement 10 / 16 amp
Cord HO7RN-F, 5 wire
Max Input 5000 watts
HHB2ED (HHB-8603-1D)
Phase 3 Phase
Voltage 230 VAC
Frequency 50/60 Hz
Current / Max Circuit Requirement 14 / 20 amp
Cord HO7RN-F, 4 wire
Max Input 5000 watts
HHB2UK (HHB-8603-1K)
Phase 1 Phase
Voltage 230 VAC
Frequency 50/60 Hz
Current / Max Circuit Requirement 24 / 32 amp
Cord HO7RN-F, 3 wire
Max Input 5000 watts
NEMA
6-30
NEMA
6-50
IEC 309, 4-pin,
32 amp
IEC 309, 5-pin,
16 amp
IEC 309, 3-pin,
32 amp
All ED Ovens
All EW Ovens
All UK Ovens
Domestic NGC Ovens
Domestic HHB Ovens
Domestic C3 30-AMP Ovens
Domestic C3 35-AMP Ovens
TurboChef reserves the right to make substitutions of components or
change specications without prior notice.
SHIPPING INFORMATION
U.S.: All ovens shipped within the U.S. are packaged in a double-wall
corrugated box banded to a wooden skid.
International: All International ovens shipped via Air or Less than
Container Loads are packaged in wooden crates.
Box size: 37” x 32” x 28” (940 mm x 813 mm x 711 mm)
Crate size: 40” x 36” x 35” (1016 mm x 914 mm x 889 mm)
Item class: 85 NMFC #26770 HS code 8419.81
Approximate boxed weight: 210 lb. (95 kg)
Approximate crated weight: 285 lb. (129 kg)
Minimum entry clearance required for box: 28.5” (724 mm)
Minimum entry clearance required for crate: 35.5” (902 mm)
NEMA 6-30P
NEMA 6-50P
NEMA 6-30P
IEC 309 5-pin,
16 amp
IEC 309 4-pin,
20 amp
IEC 309 3-pin,
32 amp
