user manual
NuQ series
NuQ manual
page 25

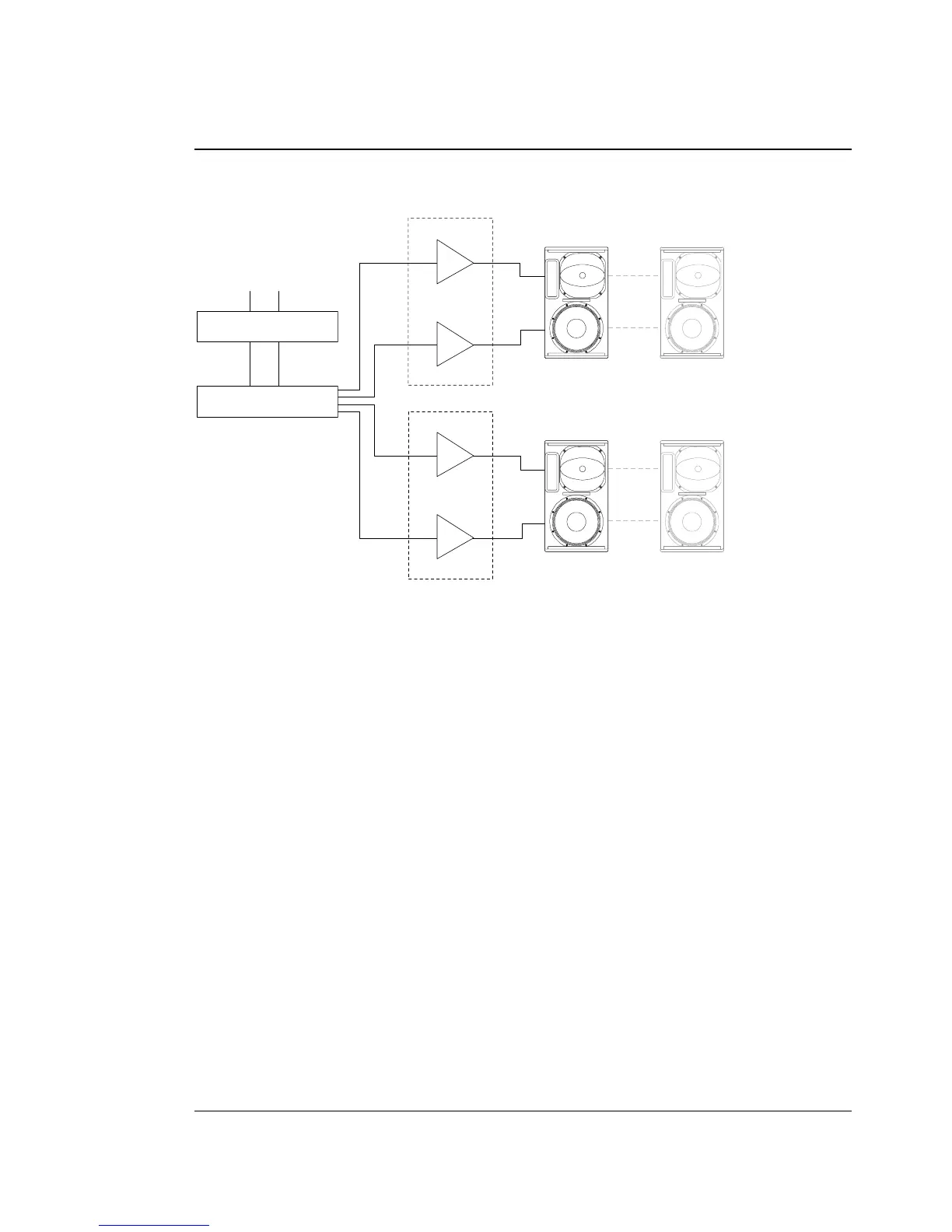

System 3 – Stereo Bi-amped setup with Active Crossover
HIGH
BASS
HIGH
BASS
POWER AMPLIFIERS
FROM MIXER
L
R
LMS-D24
EQ
LEFT
RIGHT
Note: Bi-amp mode must be selected on the rear panel of the loudspeaker before
proceeding with this setup.
The LMS-D24 is used to separate the bass and high frequencies and feed them to the
appropriate components within the enclosure. An additional pair of cabinets may be
connected.
NB: The EQ shown is for tuning the system to the room / venue.
