user manual
NuQ series
NuQ manual
page 26

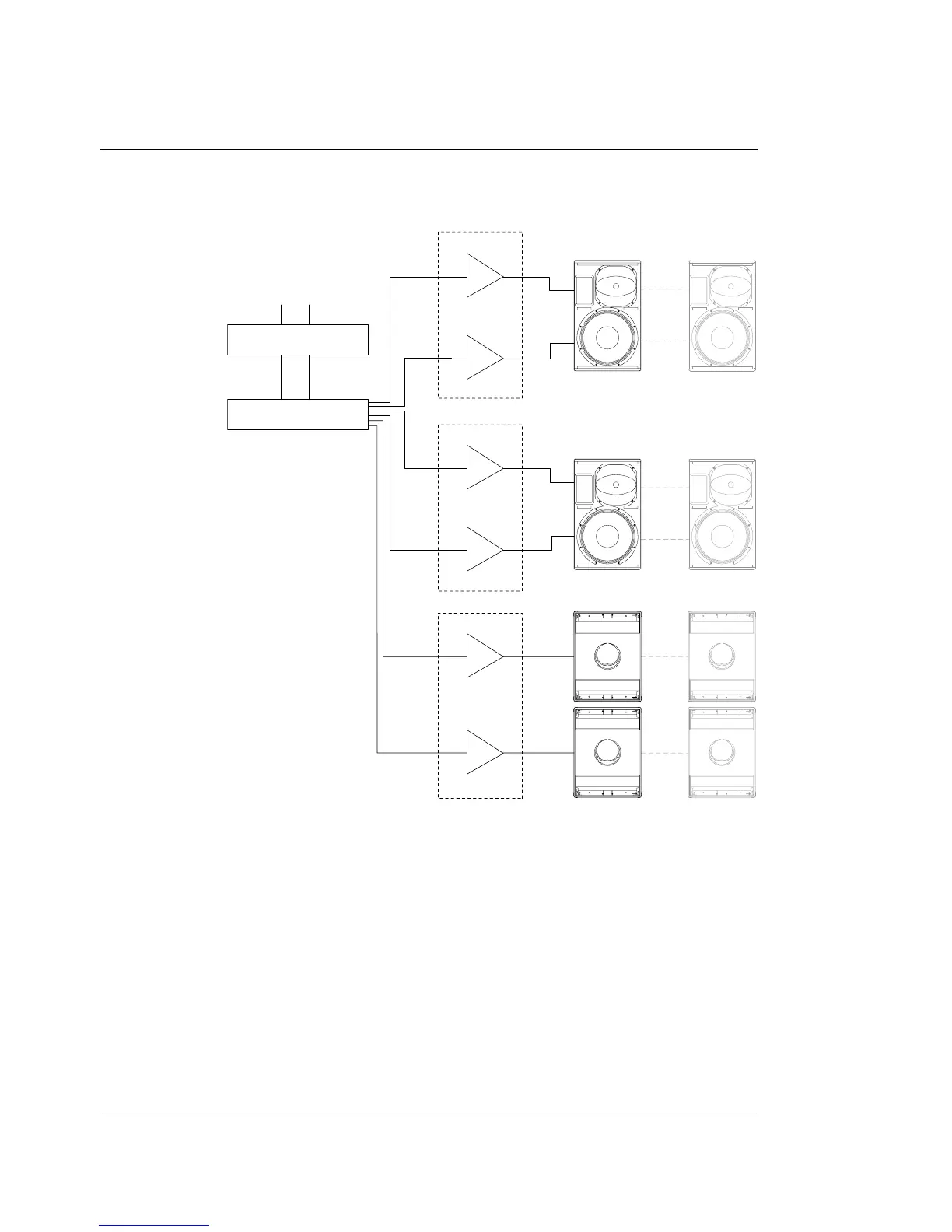

System 4 – Stereo Bi-amped setup with Sub-bass units and Active Crossover
HIGH
BASS
HIGH
BASS
POWER AMPLIFIERS
FROM MIXER
L
R
LMS-D26
EQ
LEFT
RIGHT
LEFT
RIGHT
POWER AMPLIFIERS
SUB-BASS
Note: Bi-amp mode must be selected on the rear panel of the two-way loudspeaker
before proceeding with this setup.
The LMS-D26 is used to separate the audio into three frequency bands: high frequency,
mid/bass frequency, and sub-bass. As with the previous systems, additional cabinets may
be connected dependent on amplifier capability.
NB: The EQ shown is for tuning the system to the room / venue.
