TurboDrive™ Quick Reference Setup
The following is a quick reference setup guide for networked systems. For more detailed
setup instructions please refer to the TurboDrive™ User Guide, available from our web
site at www.turbosound.com
To create a network of NuQ systems follow the steps below:
1. Install the TurboDrive software
from the CD supplied or download from the Turbosound website
2. Install the drivers
If you are connecting via RS232 there is no need to install drivers. If you are
connecting via a USB port install the drivers which can be found on the CD that
was supplied with your Linea Research BvNet interface.
3. Connect a LMS-D2X loudspeaker management system to a PC
BvNet is the method of connecting multiple devices over a network, and this is
done with the Linea Research USB & RS232 Interface (available from Turbosound)
which enables devices to be connected either using RS232 or the RS485 standard
carried over CAT5-type cables.
Using RS232
Connect your computer to the RS232 port on the BvNet interface using a standard 9-
pin serial cable. External power is required for RS232 operation and this should be
supplied by the Linea Research Accessory Power Supply System.

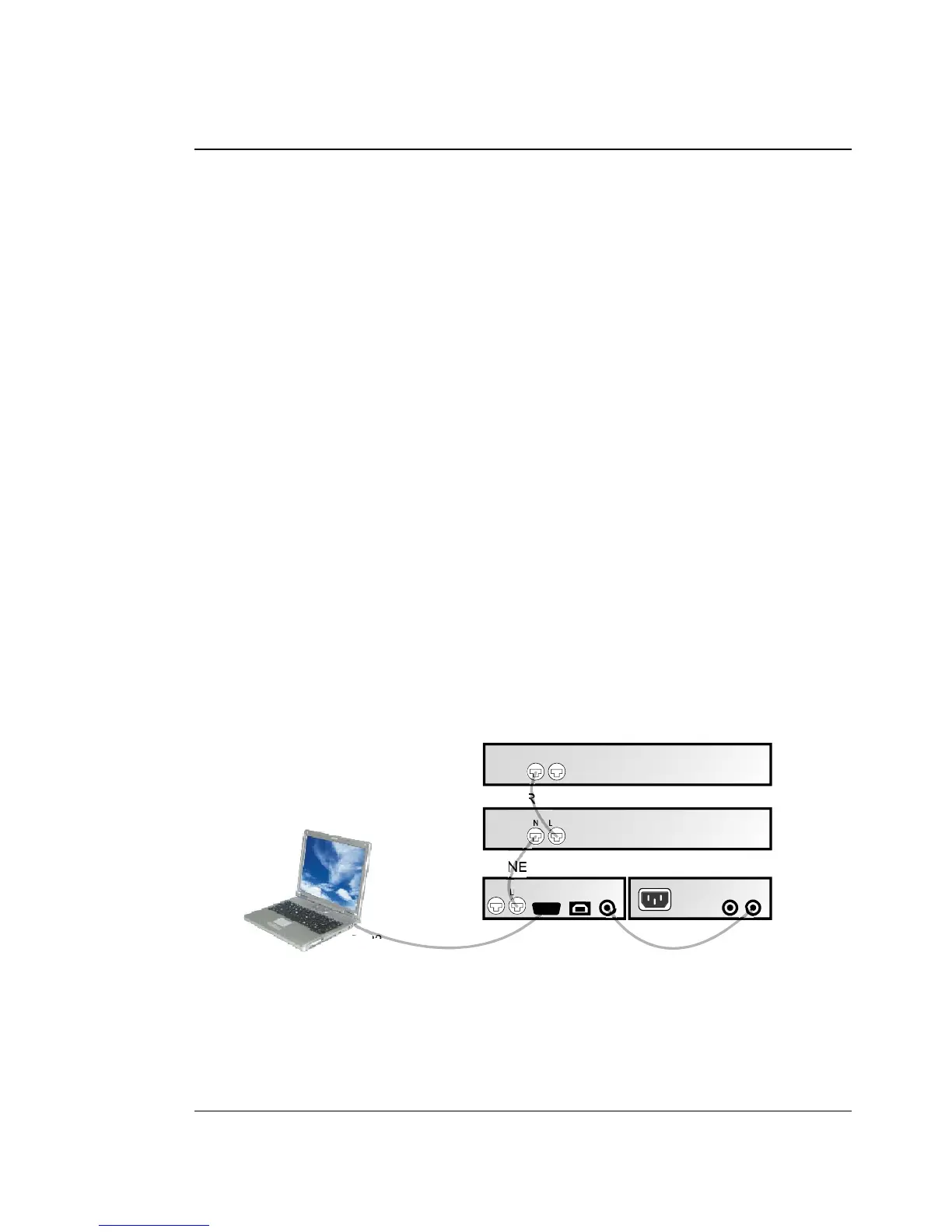

MALE-FEMALE
SERIAL EXTENSION CABLE
RS-232
RS-232
BVNET INTERFACE POWER SUPPLY
CONTROLLER
CONTROLLE
USB
IN LINK
IN LINK
IN LINK
