TURFCO T3100 User Manual

38
85876 & 85877 RevA
TURFCO T3100 APPLICATOR
ADJUSTING
STEERING CABLES
(See Figure 29)
The steering cables
can be adjusted to
correct for wear and
to take “slack” out of
the steering wheel.
●Inspect the tie rods
and tie rod ends.
● Check the front
wheel bearings and
the bearings where
the front spindles go
through the front axle
beam.
● Check that cables
are on steering cable
pulleys at rear of
machine
●Locate adjusters on cable ends near front axle. Loosen locking nuts on both cables. Adjust each side equally to
keep the alignment equal and to avoid changing the steering wheel steering position. Do not over tighten cables.
Retighten lock nuts after adjusting.
●Check the alignment of the front tires, they should have a “Tow Out” of 1/4” to 1/2”. Take a measurement across
the front tires, measuring from the center of the tires. Measure both the front and the rear. The front measurement
should be 1/4” to 1/2” more than the rear measurement. Correct if needed by adjusting the tie rods.
SERVICE AND MAINTENANCE
REAR OF MACHINE
PUMP

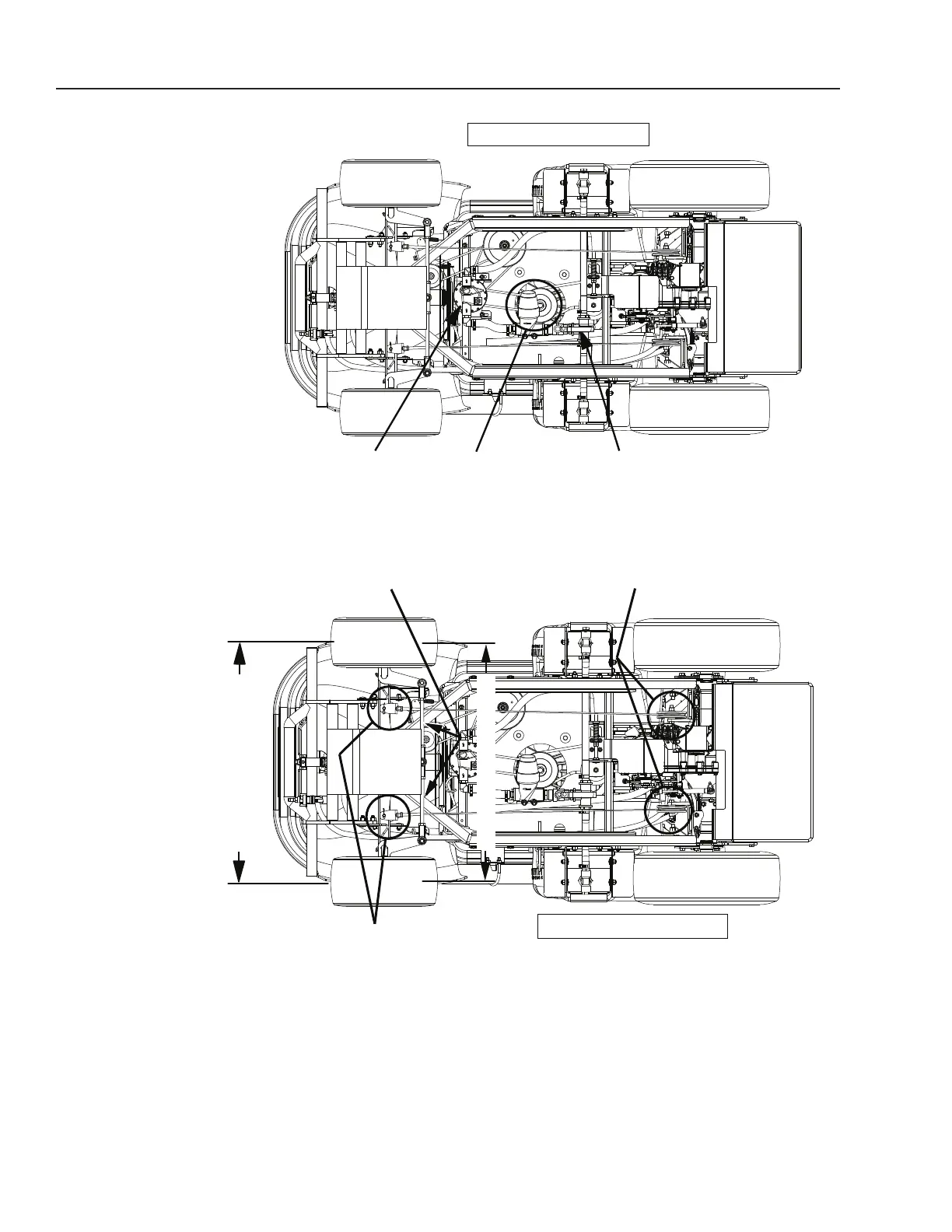

FIGURE 28
SV85876-04
STRAINER CAP SHUTOFF HANDLE
AS VIEWED FROM BOTTOM
LOCATION OF SPRAY
SYSTEM SHUTOFF VALVE
AND STRAINER SCREEN
(See Figure 28)
When the handle on the shutoff
valveispulleddown,owfrom
the tanks is stopped (closed).
Remove the strainer cap
to access the screen (lter)
for cleaning. The cap on
the strainer should only be
removed when the shutoff
valve is closed.
NOTE: When the strainer cap
isremove,someuidfromthe
pump will be present.
REAR OF MACHINE
FIGURE 29
SV85876-12RevA
STEERING CABLE ADJUSTERS
STEERING CABLE PULLEYS
SET TOW OUT AT
REAR MEASUREMENT
PLUS 1/4” to 1/2”
TIE RODS
AS VIEWED FROM BOTTOM
REAR MEASUREMENT
