39
85876 & 85877 RevA
TURFCO T3100 APPLICATOR
ENGINE
PULLEY
TRANSAXLE
PULLEY
HOPPER
PULLEY
PUMP PULLEY
VARIATOR
PULLEY
SV85876-09
TENSIONER PULLEY

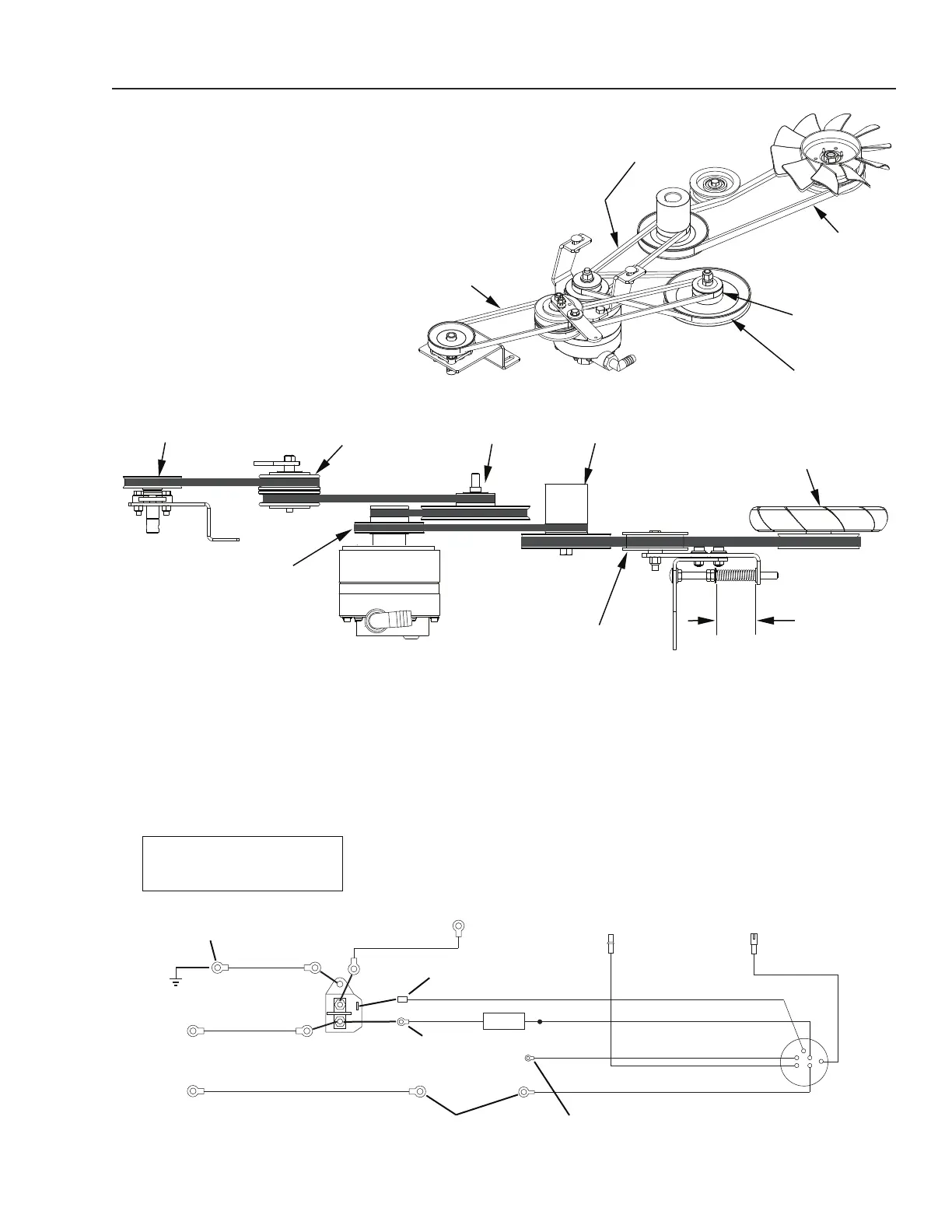

FIGURE 30
A
B
C
D
E
REDUCTION
PULLEY
2-1/4” INCH
SPRING
TENSION
SERVICE AND MAINTENANCE
V-BELT IDENTIFICATION (See Figure 30)
A. Hopper Pulley to Variator Pulley - 24” 3L SECTION
B. Variator Pulley to Reduction Pulley - 27” 3L SECTION
C. Reduction Pulley to Pump Pulley - 27” 3L SECTION
D. Pump Pulley to Engine Pulley - 26” 3L SECTION
E. Engine Pulley to Transaxle Pulley - A SECTION A-38
ORANGE
YELLOW
BLACK
RED
BLACK
RED
R
B
S
G
L
M
TO ACCESSORY
POWER SUPPLY
TO ENGINE VOLTAGE
REGULATOR
TO ENGINE STOP ON THROTTLE LINKAGE
TO STARTER
SOLENOID
POWER IN
FROM
SOLENOID
STARTER
SOLENOID
BATTERY
POSITIVE
BATTERY
NEGATIVE
BLACK
RED
RED
TO STARTER MOTOR
87514-13REVA
GROUND TO ENGINE CASE
FUSE
BLACK
BLACK
GROUND TO
ENGINE CASE
FIGURE 31
ELECTRIC START KIT
WIRING DIAGRAM
ELECTRIC START KIT - PRODUCT NUMBER 87523
The T3100 Series Product Number 85877 is equipped with a factory installed Turfco Electric Start Kit. The T3100
Series Product Number 85876 does not have a factory installed Electric Start Kit. If a 85876 has the Turfco electric
start kit, it was sold separate and was customer installed. For kit installation information, refer to the manual for
the Electric Start Kit (Turfco manual 668499). The actual starter motor on the engine is a Briggs and Stratton part
and can be serviced thru Briggs and Stratton dealers.
Use Lawn and Garden Group U1 Battery
