TURFCO T3100 APPLICATOR
Calibration of Spreader
Calibrate the machine for product desired. See the product label for application rates.
Calibration should only be done by licensed persons.
The T3100 has a 5 mph ground speed.
The T3100 has two spreader widths -
 ●18footwidefora9footeffectivewidth(18/9).
 ●12footwidefora6footeffectivewidth(12/6).
You are using a Spyker Spreader that requires a 100%
overlap for best coverage. Therefore 18’ foot equals 9’
foot and 12’ foot equals 6’ foot wide.
Because you have two spinner speeds for wide and
narrow, we will need to calibrate two gate opening
settings. One for 18/9 foot and one for 12/6 foot wide.
The procedure for both is the same using the Spreader
Gate Rate Adjuster Dial on the front of the hopper.
Your calibration will be one of the following -
 ●Wide18/9spreadat5mph.
 ●Narrow12/6spreadat5mph.
Pick the one you need. You can only calibrate one
setting at a time.
FULL SPEED (5 MPH) SPREADER CALIBRATION
Two facts you need to know before you begin -
 ●Thepoundsoffertilizerper1000sq.ft.youwant
to spread.
 ●TheactualgroundspeedofyourunitWHEN USING FULL SPEED.
Time the ground speed of your machine for Full Speed calibration -
At full throttle, drive the machine in a straight line for 111 feet. The time it takes should be 15 seconds. That means
your spread will cover 1000 sq. ft. every 15 seconds when spreading a 18/9 foot wide swath at 5 mph.
Next drive your unit in a straight line for 166 feet. The time should be 23 seconds. That means you will cover 1000
sq. ft. every 23 seconds spreading a 12/6 foot swath at 5 mph.
Note:Yourtimesmaybeoffasecondorsoduetotemperature,weightandotherelements.Aslongasyouare
within a second or so of 15 and 23 do not worry about the times. Write your times down on the record table on page
26 or 27.
Calibration for 4 lbs of fertilizer per 1000 sq. ft. at 18/9 foot spread pattern at 5 mph (full speed).
You will be using your ground speed time for 111 feet at 5 mph.
Step 1. Start with an empty hopper. Remove the spreader spinner wheel and shaft. Remove the pull pin at the very
bottom of the shaft under the bearing and remove the pin that holds the spinner wheel in place. Pull the shaft up
and out of the hopper removing the spinner wheel. Place a pin in the shaft and set it back into the hole to prevent
fertilizer from falling out.
Step 2. Remove the plastic carrying tray from behind the hopper and place it under the hopper to catch the fertilizer.
This saves the fertilizer and makes clean up easy.
Step 3. Set the white plastic gate rate adjuster dial on the front of the hopper so the silver pointer lines up with 5.8
onthecamwheel.Thepointerslidinguptothecamiswhatdeterminesthegateopeninginsidethehopper.Note:
The white cam is calibrated into ones and tens. Each number has 10 clicks between them so make note of your
settings. Example - set at 5 plus 8 clicks is 5.8 for an opening setting.
SPREADER CALIBRATION
OP85876-29RevA

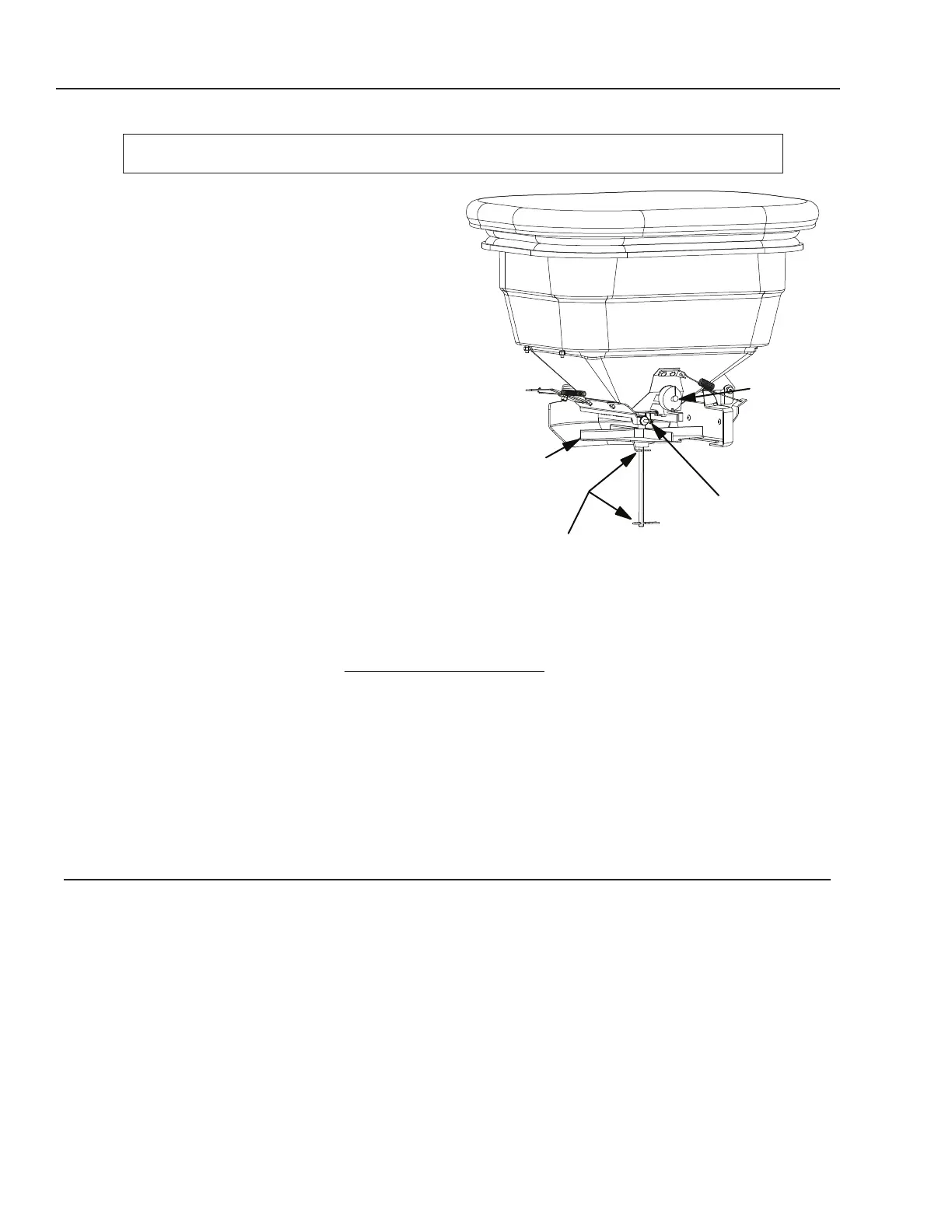

FIGURE 18
“ACCUWAY”
SPREAD PATTERN
ADJUSTER
SPREADER
GATE RATE
ADJUSTER
DIAL
SPREADER
SPINNER
WHEEL
SPREADER SPINNER
WHEEL PULL PINS
