Tuthill 2002 - Flow by Direction and Rotation

Manual 2017 Rev C p/n 2017
7
04
Description
INLET INLET INLET
DISCHARGE DISCHARGE DISCHARGE

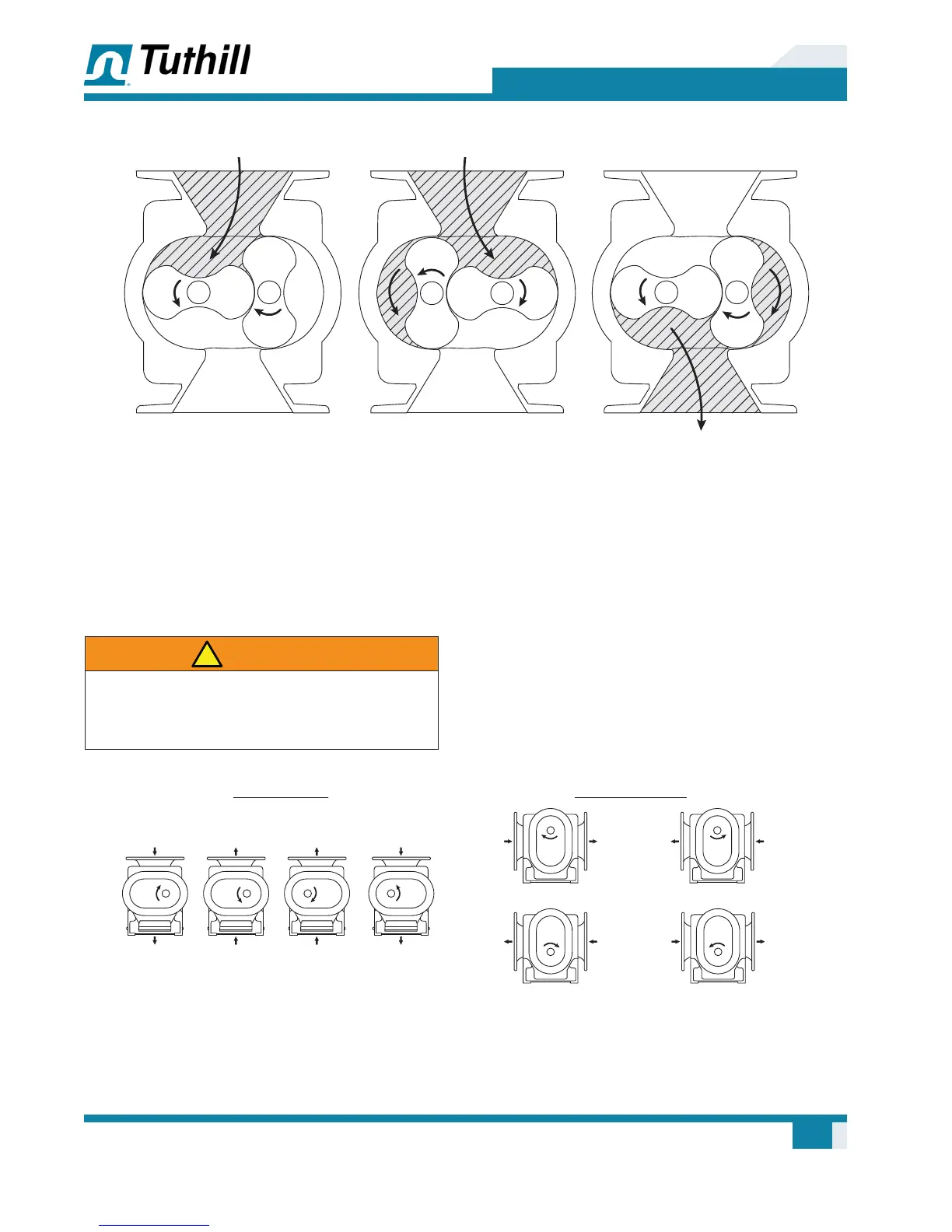

Figure 4-1 – General Operation Principle
FLOW BY DIRECTION AND
ROTATION
WARNING
!
Refer to diagrams in this manual for
proper rotation and orientation in inlet and
discharge.
INTAKE
INTAKE
DISCHARGE INTAKE
DISCHARGE
HORIZONTAL FLOWVERTICAL FLOW
DISCHARGE
INTAKE DISCHARGE
INTAKE
DISCHARGE
RIGHT DRIVE
CW ROTATION
LEFT DRIVE
CW ROTATION
LEFT DRIVE
CCW ROTATION
RIGHT DRIVE
CCW ROTATION
TOP DRIVE
CW ROTATION
TOP DRIVE
CCW ROTATION
BOTTOM DRIVE
CW ROTATION
BOTTOM DRIVE
CCW ROTATION
DISCHARGEINTAKE INTAKE
INTAKEDISCHARGE DISCHARGE
Figure 4-2 – Flow Direction by Rotation
