5
SPECIFICATIONS TABLE
MODEL SERIES
PORT SIZE
INCHES / mm
APPROX. OIL CAPACITY
QUARTS / LITERS
MAX. ALLOWABLE
DISCHARGE TEMP.
° F / ° C
MAX. TEMP.
RISE
° F / ° C
MAX.
PRESSURE
PSIG
MAX.
VACUUM
in. Hg / mbar
MAX.
RPMVERTICAL FLOW HORIZONTAL FLOW
3203
3205
3208
3213
AP
2 / 51
3 / 76
4 / 102
4 / 102
0.68 / 0.64 0.38 / 0.36 445 / 229 325 / 163 18 17 / 576 4800
4606
4610
4616
AP
4 / 102
6 / 152
6 / 152
1.82 / 1.1 1.07 / 1.7 445 / 229 325 / 163 18 17 / 576 4000
6009
6015
6024
AP
8 / 203
8 / 203
10 / 254
4.68 / 4.4 2.63 / 2.5 445 / 229 325 / 163 18 17 / 576 3200
INSTALLATION
CAUTION: Customers are cautioned to provide adequate protection, warning and safety equipment necessary to
protect personnel against hazards involved in the installation and operation of this equipment in the system or
facility.
WARNING: Do not use air blowers on explosive or hazardous gases. Each size blower has limits on pressure
differential, running speed, and discharge temperature, which must not be exceeded. Consult Specifications
Table.
PROTECTIVE MATERIALS
Remove protective materials from the shaft.
Remove the protective covers from the inlet and outlet ports and inspect the interior for dirt and foreign material.
WARNING: Keep hands, feet, foreign objects, and loose clothing from inlet and outlet openings to avoid injury or
damage if lobes are to be rotated at this point.
SAFETY
Blower housing and associated piping or accessories may
become hot enough to cause major skin burns on contact.
Internal and external rotating parts of the blower and driving
equipment can produce serious physical injuries. The blower
should never be run with the inlet or discharge piping removed.
If it becomes necessary to inspect the rotating parts of the
blower or to change V-belts, be absolutely sure that all power
to the motor controls has been shut off, and that the motor
controls are locked out and have been properly tagged before
proceeding.
WARNING: Avoid extended exposure in close
proximity to machinery with high intensity noise
levels. Always wear adequate ear protection.
Use proper care and good procedures in
handling, lifting, installing, operating, and
maintaining the equipment.
CAUTION: Use proper care and good procedures
in handling, lifting, installing, operating and
maintaining the equipment.
•
•

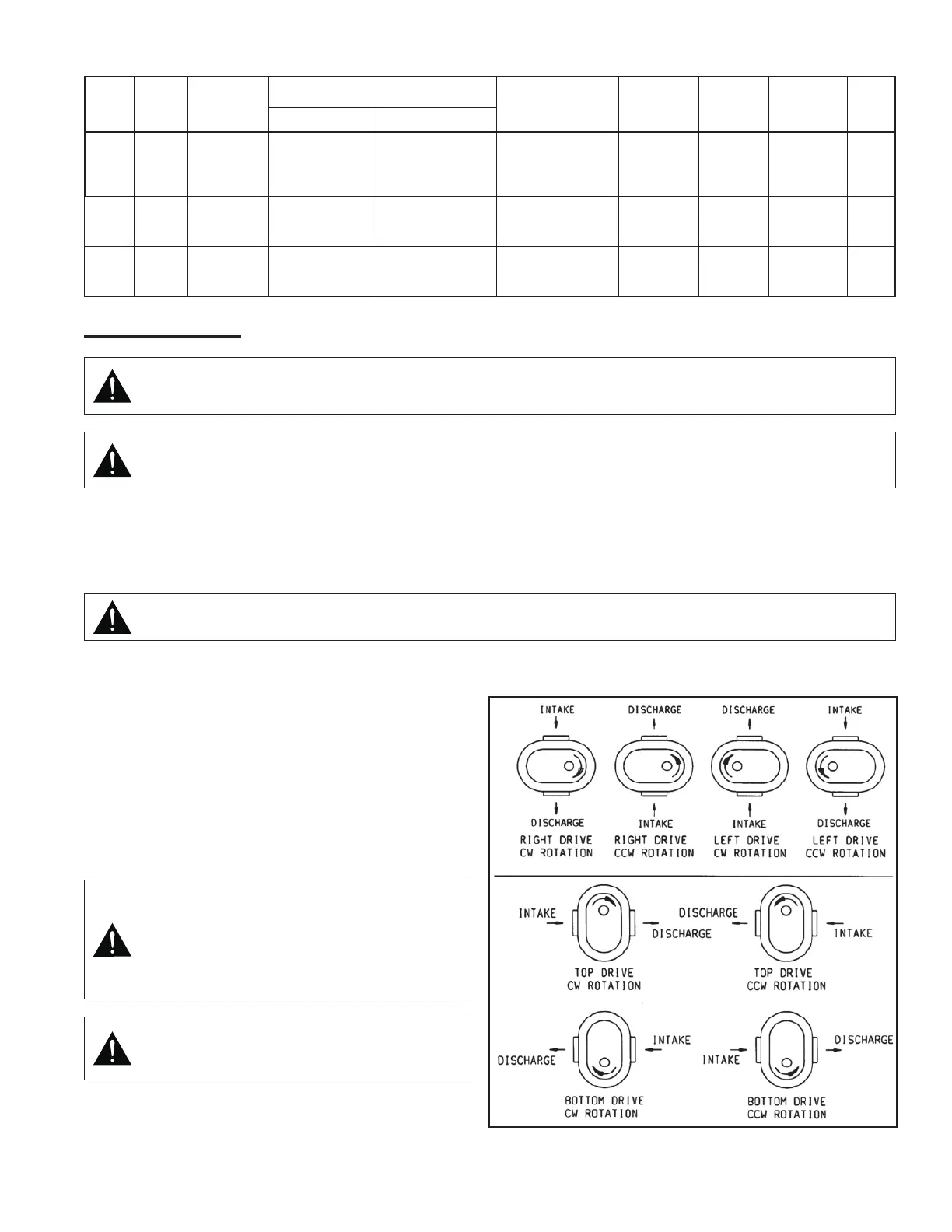

Figure 1 - Flow Direction by Rotation
