[4] Line Select (Waveform / Vector Scope)
6. Button Function
● Used to select speci c Vertical Line for Waveform / Vector.
- It is available when the Line Waveform is activated.
- To activate this feature, go to [Waveform]- [Waveform/Vector]-[Line Waveform]-[Select Line
Position] and use the Knob to select a vertical line.

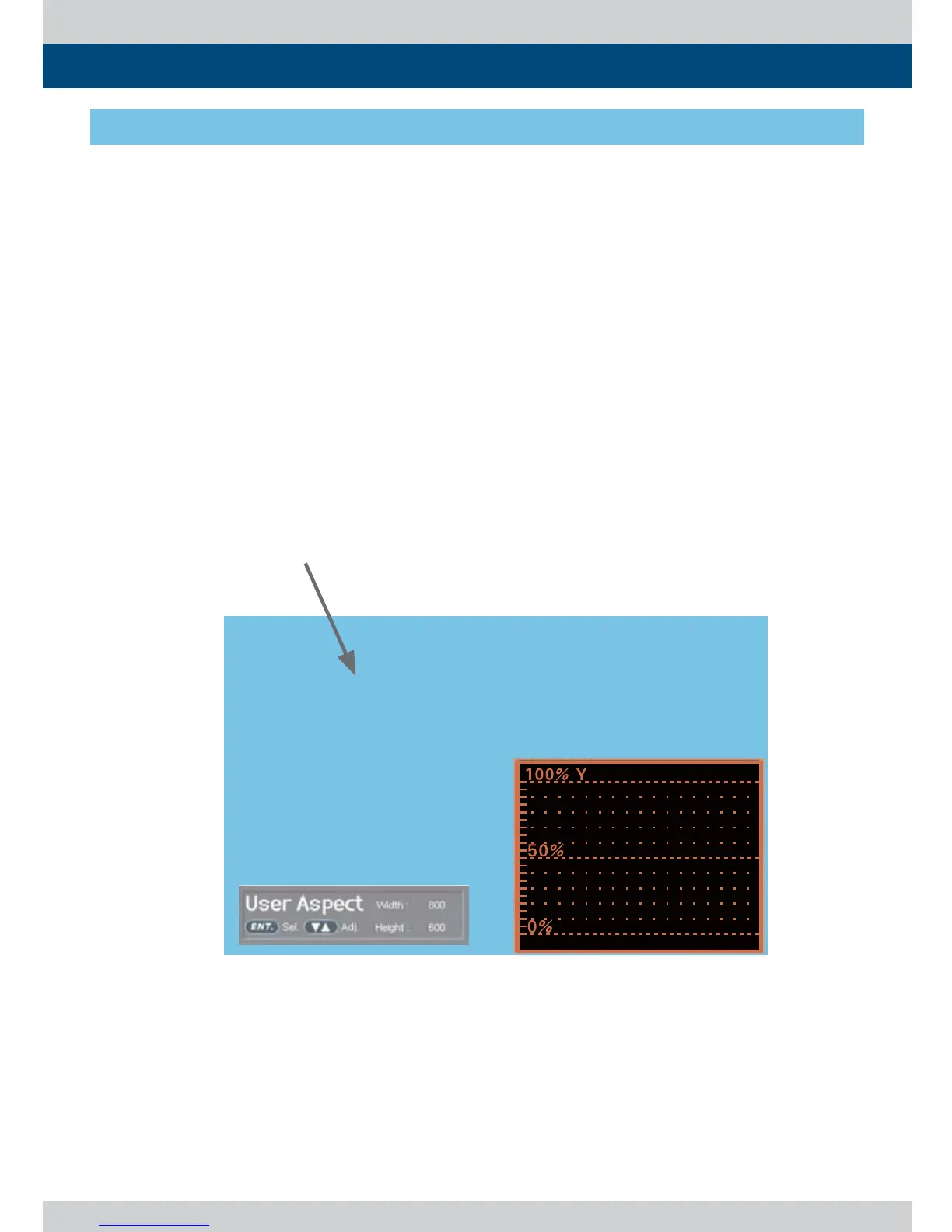

- Selected line is indicated in White on the screen.
- Control range varies according to the resolution of the input SDI signal.
• PAL : 0~625
• NTSC : 0~525
• 720p : 0~750
• 1080 i/p : 0~1125
- Control range for HDMI signal varies according to the output resolution of the signal.
- Selected line is indicated on the screen.
