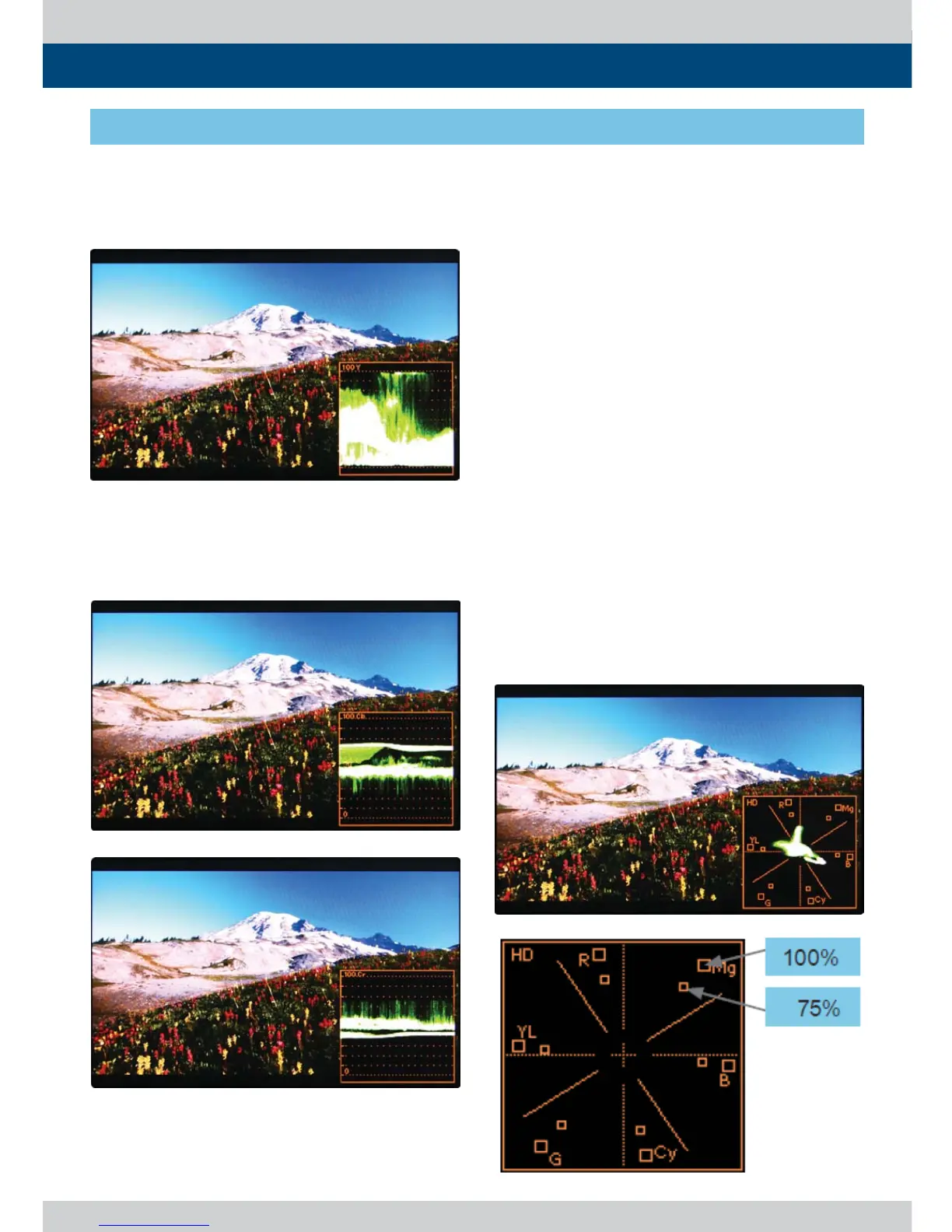

[3] Waveform / Vectorscope
6. Button Function
● Waveform Y
- Displays the Luma(Y’) component of the
input signal into waveform.
● The Waveform/ Vectorscope function can
be used only when the input signal is YUV.
● In the case of RGB input, Waveform RGB
is supported.
● Available modes in the YUV signal:
- Waveform
- Vector Scope
- Waveform Wide
- Waveform Y Cb Cr
- Waveform RGB
- Wave_Vector
- Vector_YCbCr
- Full Waveform(Y)
- Full Vector Scope
● Waveform Cb, Cr
- Displays the Cb, Cr components of the input
signal into waveform
● Vector Scope
- Displays the color components ‘B-Y’ and
‘R-Y’of the input signals onto the X-Y axis.
- Two di erent types of Vetorscopes are disp
layed according to SD or HD input signals.
- 100% and 75% scales are indicated on the
Vetorscope.
