TV Logic LVM-171S User Manual

8 Multi Format LCD Monitor
3. Controls & Functions
FRONT
● [FRONT TALLY]
- Tally lamp that can be toggled in green
or red using the REMOTE(RJ-45) port or
TVLogic’s management program(Observer).
● [POWER]
- Used to turn the power on and o .

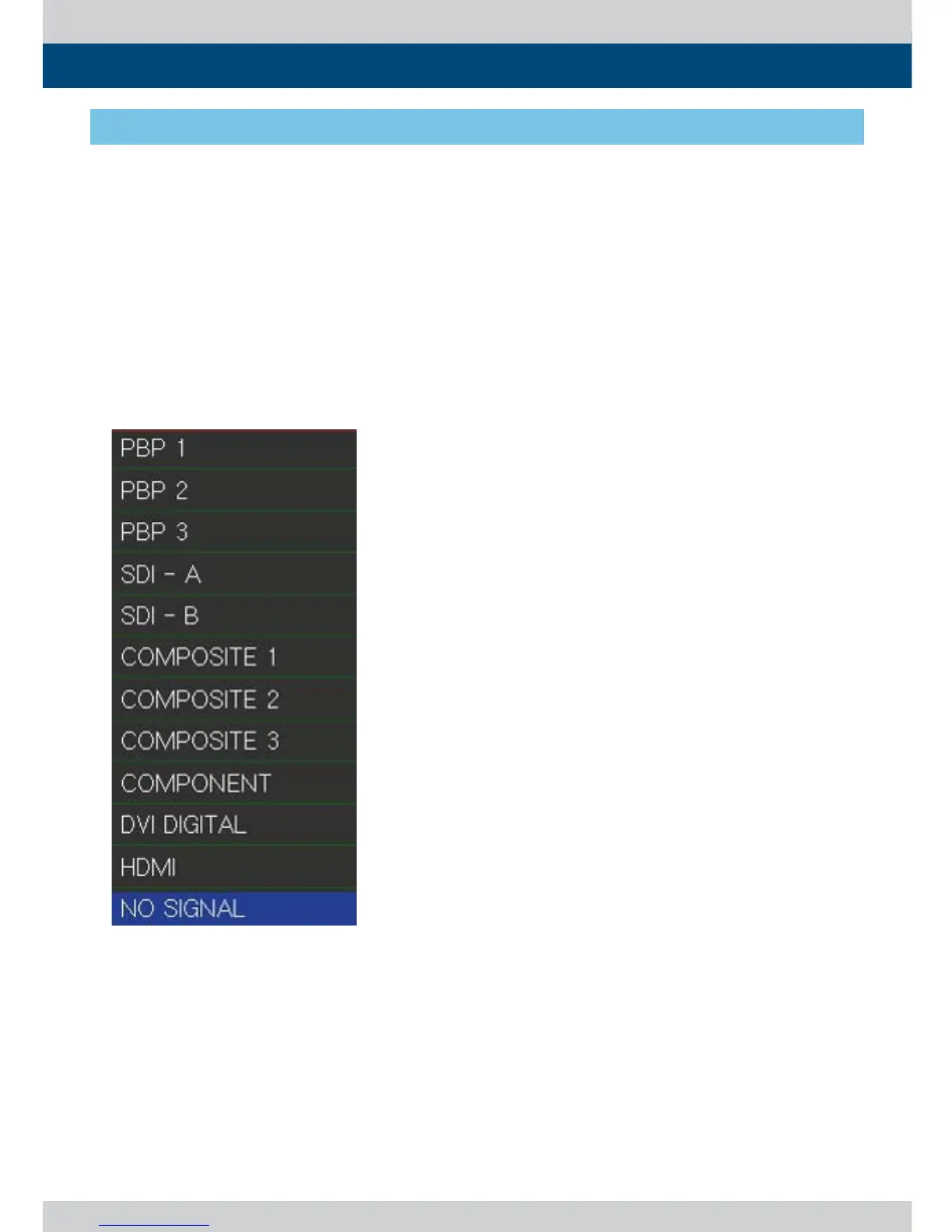

● [SOURCE]
- Used to select the desired input source or
used to select the PBP Mode. Use the Knob
to select and active the input mode or PBP
mode.
● [SCAN]
- Used to change the scan mode.
● [ASPECT]
- Used to change the various display ratio
between 4:3 and 16:9.
● [MARKER]
- Used to activate/deactivate the Marker.
- The desired marker can be displayed on
the screen properly when the type of marker
selected from the main menu.
● [F1]~[F3]
- This Functions button is used to
activate The feature selected in
[F1]~[F3] Button.
● [MENU/EXIT]
- Used to activate the OSD menu.
- When the OSD menu is activated, press this
button to exit from the menu.
● [UP/DOWN/ENTER] (Knob)
- Used to move within the menu when OSD
menu is activated and is also used
to decrease or increase the value of the
selected feature.
- Press the Knob to select the main menu and
sub menus.
● [USB] (USB-A)
- This terminal is used to upgrade the
 rmware or color calibration made by
TVLogic.
● [AUDIO OUT] (Phone jack)
- Selects the Left/Right Audio disembedded
signal output or HDMI input signal or
external stereo signal is output through the
internal speaker or the phone jack.
