TV Logic LVM-171S User Manual

Multi Format LCD Monitor 9
● [REMOTE] (RJ-45)
- Provides connection to control
equipment(parallel switch) for external
monitor control.
- Features of each pin can be changed.
● [RS422 IN & OUT] (RJ-45)
- Used to control the monitor with protocol
provided by TVLogic or to support TSL
protocol.
● [CVBS1~3/YPbPr/S-Y B S-C IN & OUT] (BNC)
- Signal Input and Output terminal for Analog
signals.
- Video input connection method.
● [HDMI IN] (HDMI-A)
- Signal input terminal for HDMI signal.
● [DVI IN] (DVI-I)
- Signal input terminal for DVI DIGITAL or DVI
ANALOG signal.
● [SDI-A/B IN & OUT] (BNC)
- Signal input terminal for SD/HD/3G-SDI
- The SDI-B OUT terminal supports only the
Direct Loop Through method in which the
input signal input to the SDI-B IN terminal is
output as is.
- The SDI-A OUT terminal supports two out
put modes: Direct Loop Through, which
outputs the input signal as it is input to
the SDI-A IN port, and output mode,
which includes a Camera LUT with a  xed
resolution of 1920x1080 @ 60Hz.
● [LAN] (RJ-45)
- Provides connection to control equipment
for external monitor control.
● [AUDIO IN] (Phone jack)
- Audio input terminal for External Audio
signal.
● [AC IN]
- 100 ~ 240V AC 50/60Hz
● [POWER S/W]
- Power On/O Switch
● [DC IN]
- 12V DC
3. Controls & Functions
REAR
Connector Composite Component S-Video
1 CVBS1 Y G Y
2 CVBS2 Pb B No Con.
3 CVBS3 Pr R C
1
2
3
4

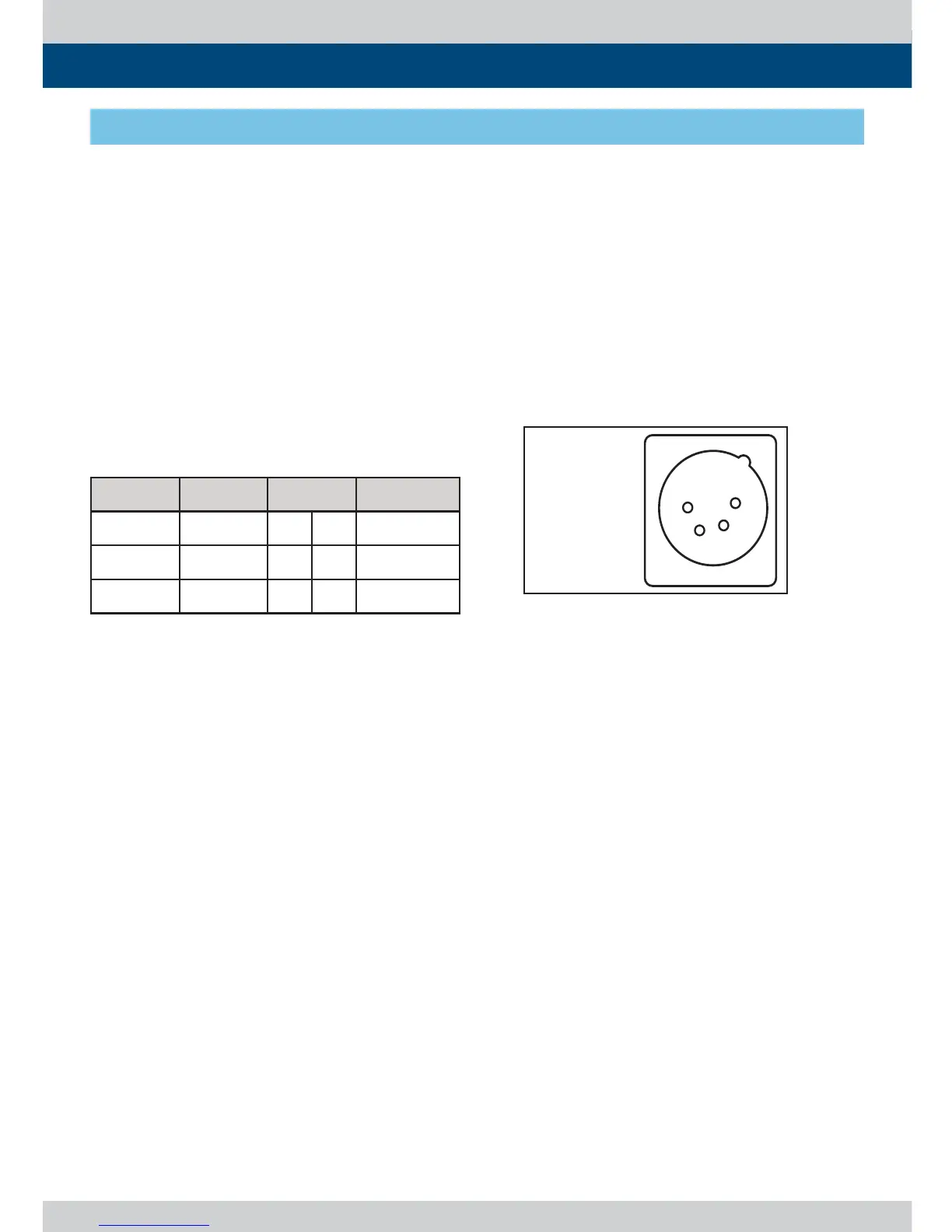

DC IN socket
1,2 : GND
3,4 : +12V / +24V
