FHD High Bright Field Monitor 9
3. Controls & Functions
REAR SIDE / BOTTOM
• [HDMI IN]
- Signal input terminal for HDMI signal.
• [HDMI OUT]
- Signal output terminal for HDMI signal.
- Video source from SDI input terminal can
be converted to HDMI format.
• [HEADPHONE] (Phonejack)
- Used for Stereo Audio Output through
Phone Jack. (video signals with embedded
audio only)
• [USB]
- This terminal is used to upgrade the
rmware or color calibration made by
TVLogic.
• [REAR TALLY]
- Activates same as [SCREEN TALLY].

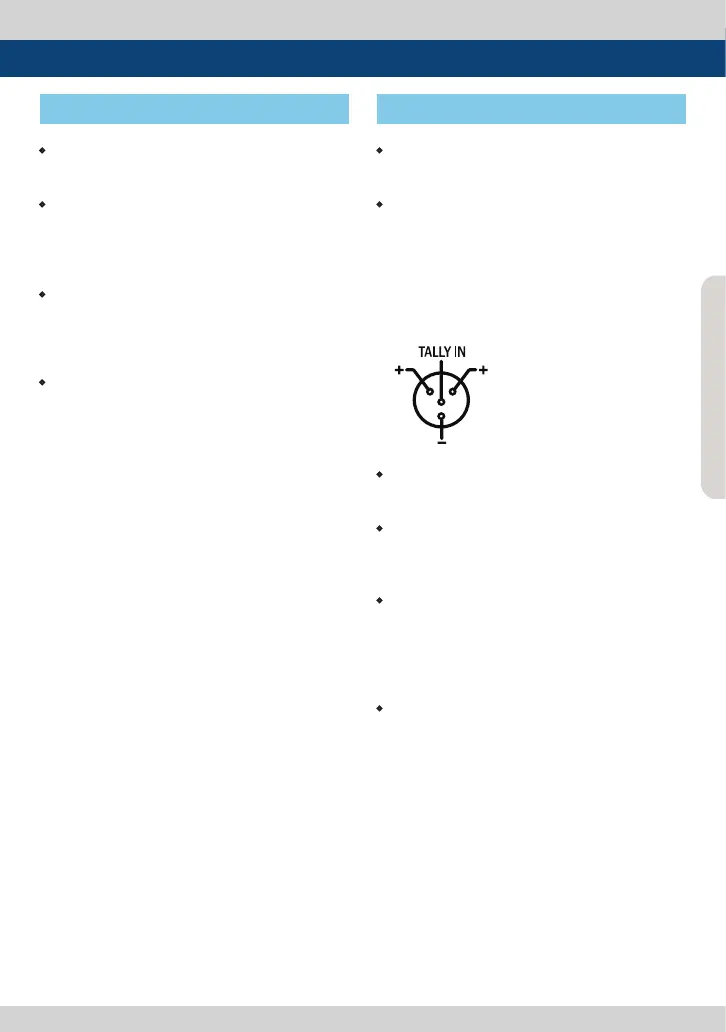

• [DC POWER / TALLY] (XLR 4P)
- Tally Signal In Level DC5V
±2V
- Battery Power Input terminal for DC 12V
- Rated Power Input : DC 12V (1.8A)
* When using a DC Adapter other than the
one supplied by the manufacturer, please
be advised that the adapter with DC 12V/3A
~ 6A can be compatible with the monitor.
• [Battery In]
- Battery Power Input :DC 6.8~12V
• [SDI IN] (BNC)
- Signal input terminal for HD/SD/3G SDI
signal.
• [SDI OUT] (BNC)
- Signal output terminal for HD/SD/3G SDI
signal.
- Video source from HDMI input terminal can
be converted to SDI format.
• [POWER] Switch
- Used to turn the power on and o.
<Warning!!>
When using the product make sure to ground,
whenever possible, before connecting the
input signal cable in order to prevent any
possible damage to the product or connected
devices. The damage may include signal
noise, malfunction of main board or display
panel. And the connected devices such as
camera or video source player may also
be inuenced through signal cable. Please
check if the AC power source and the power
extender or power distributor is grounded.
To Next Page
