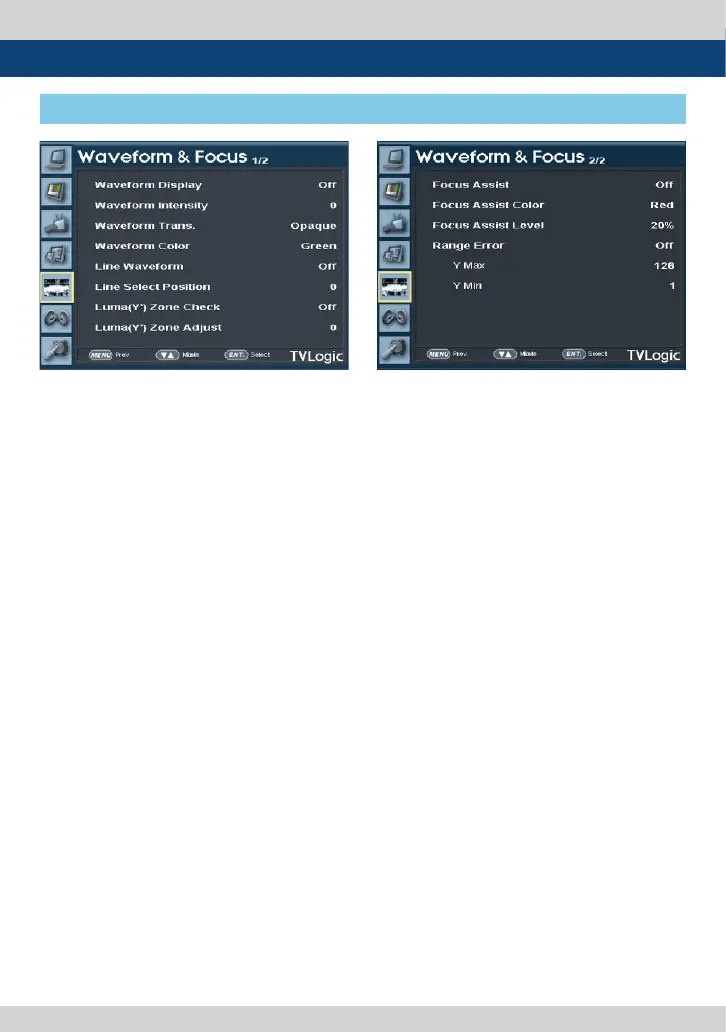

[5] WAVEFORM & FOCUS
5. Menu Operations
● Focus Assist
- Focus Assist helps the shooters to easily
nd out the exact area in the picture
that is in focus, simply by adding colors
on the boundaries of the subject in the
picture.
- Activates in the order of [Mono On] – [Color
On] – [O].
● Focus Assist Color
- Used to select a color for Focus Assist among
red, green, white and blue.
- This feature is available only when the Focus
Assist mode is activated.
● Focus Assist Level
- Used to set the edge dierence value
between the edges in an image.
- Available values are from 0 to 100. Larger
value means more sophisticated detail
detection.
- Designated color is displayed when the
dierence of the edges exceeds the
previously set value.
- This feature is available only when the Focus
Assist mode is activated.
● Range Error
- Used to set whether or not to activate Y
MAX, Y MIN, C MAX and C MIN functions.
- The values of Y MAX, Y MIN, C MAX and C
MIN are indicated in WAVEFORM/VECTOR.
● Luma(Y’) Zone Check
- Displays the Luma(Y’) level of the input
image in colors.
- Can select between [Color Pattern] or
[Zebra Pattern].
- When Y’ level of the pixel is under 0%(16),
the color / diagonal line will be colored
Green.
- When Y’ level of the pixel is over 100%(235),
the color / diagonal line will be colored Red.
- When Y’ level of the pixel is between
0~100%, the pixel is displayed with Gray,
except for selected Luma Zone.
- In the [Color Pattern] mode, 5% zone of
selected Y’ level will be colored Pink(5%) and
±10% will be colored Yellow(-10% from Pink)
and Cyan(+10% from Pink).
- In the [Zebra Pattern] mode, ± 5%
of the selected Y’ Level will be displayed with
diagonal lines.
● Luma(Y’) Zone Adjust
- Used to set the Y’ level to be colored Yellow,
Pink and Cyan in [Color Pattern] mode, or to
set Y’ level zone to be displayed with
diagonal lines in [Zebra Pattern] mode
simply by scrolling with the Knob.
- Available values are 0 ~ 100%.
* See section “Other Functions -> [6] Luma(Y’)
Check” for more information.
