TVLogic LUM-242G User Manual

24 4K LCD Monitor

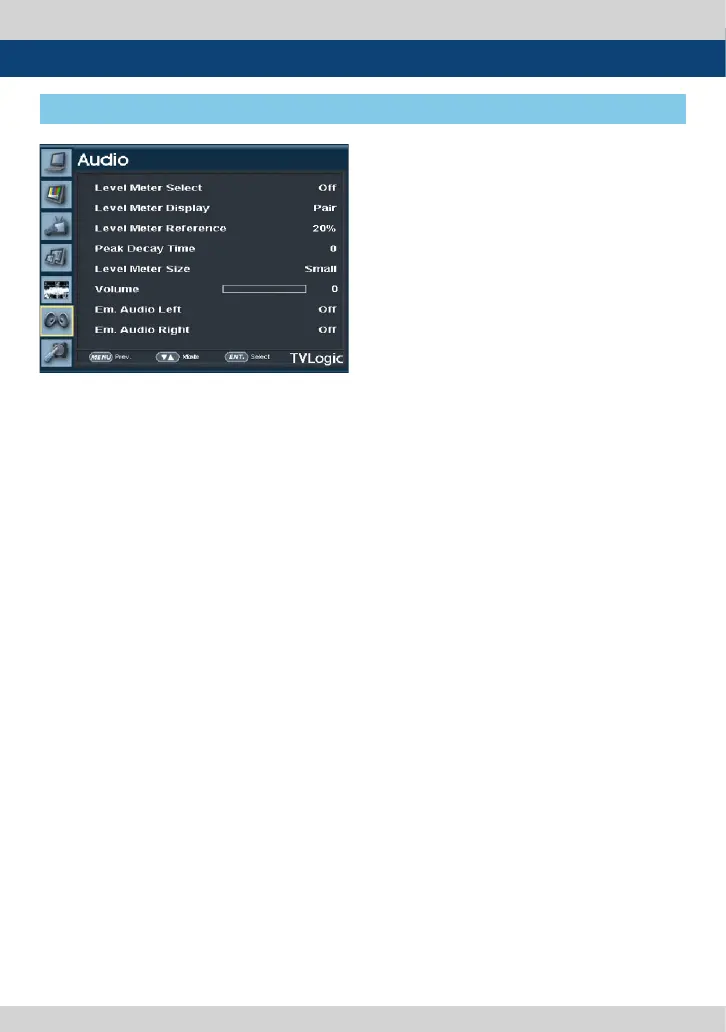

[6] AUDIO
● Level Meter Select
- Used to control the Embedded Audio Level
Meters.
- Available modes are O, G1+G2, G2+G3,
G3+G4, G1+G3, G1+G4, G2+G4 and 16CH.
● Level Meter Display
- Used to set the display method for Audio
Level Meter.
- Available modes are Group and Pair.
● Level Meter Reference
- Display the default Audio Level Meter value.
- Available options are -18dB and -20dB.
- Audio Level Meter within selected value turns
to green and exceeded audio level is
displayed in yellow. Audio level exceeding -
4dB is displayed in red.
● Peak Decay Time
- Sets the reduction time for the max value
indication of audio signals.
- Control range is from 0 to 30. Bigger number
means a longer display time for max. value.
● Level Meter Size
- Used to control the size of the Audio Level
Meter
- Available modes are Small, Small
Translucent, Normal, Normal Translucent,
Large and Large Translucent.
- In Small, Normal and Large modes, the level
meter appears opaque.
- In Small Translucent, Normal
Translucent, Large Translucent modes, the
level meter appears semitransparent.
● Volume
- Used to control the output volume of the
[AUDIO OUT] terminal on the back of the
monitor.
- Control range is from 0 to 30.
● Em. Audio Left
- Used to set embedded audio channel for left
audio out of [AUDIO OUT] terminal on the
back of the monitor.
- Available values are between CH1 and CH16.
● Em. Audio Right
- Used to set embedded audio channel for
right audio out of [AUDIO OUT] terminal on
the back of the monitor.
- Available values are between CH1 and CH16.
