TVLogic LUM-242G User Manual

22 4K LCD Monitor
● Waveform Trans. (Not Supported)
- Controls the transparency level of the
Waveform/Vectorscope.
- Available values are OPAQUE and TRANS.
* If the option is set to OPAQUE, the main
OSD will overlap with the waveform/vector.
However, it will automatically display it as
transparent and goes back to opaque if the
main OSD disappears.
● Waveform Color
- Used to select a color of Waveform/
Vectorscope
- Available modes are Green and White.
● Line Waveform
- This item is utilized to display the entire data
or one line data on the Waveform.
● Line Select Position (*Will be Supported)
- Used to select specic Vertical Line for
Waveform/Vectorscope.
- It is available when Line Waveform is
activated.
- Control range varies according to the
resolution of the input SDI signal.
* PAL : Min. 17, Max. 522
* NTSC : Min. 23, Max. 623
* 720p : Min. 26, Max. 750
* 1080i : Min. 21, Max. 1123
* 1080p : Min. 42, Max. 1121
- Control range varies according to the
resolution of the input HDMI/ Analog signal.
* Min. 0, Max. 600
5. Menu Operations

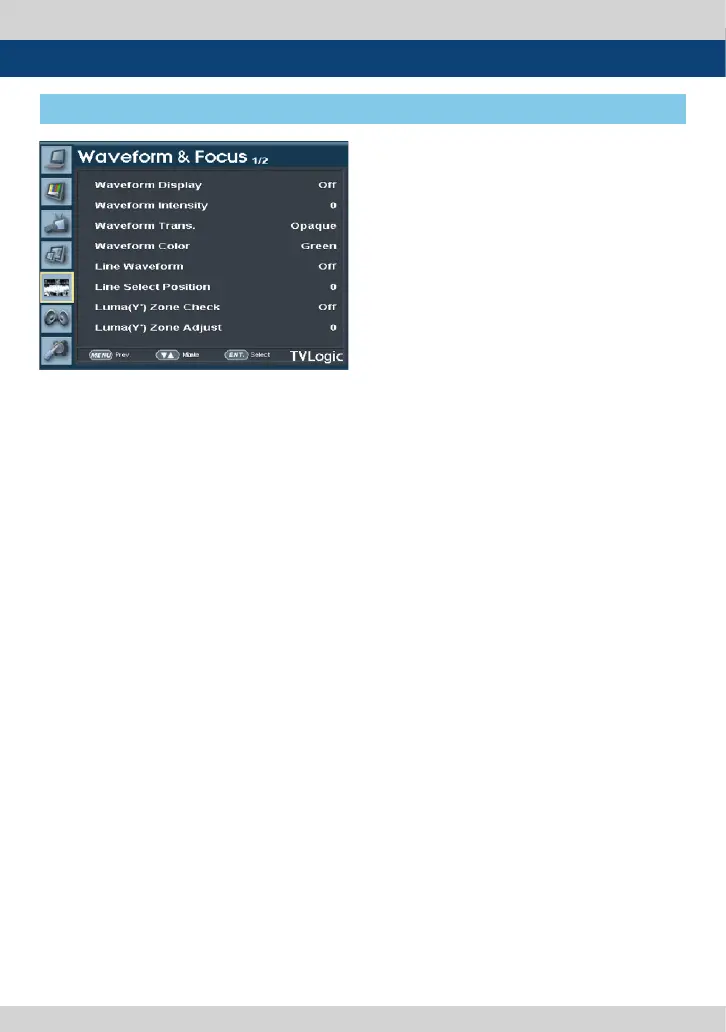

[5] WAVEFORM & FOCUS
● Waveform Display
- This function sets the Waveform and
Vectorscope.
- Activates in the order : O, Waveform,
Vectorscope.
* Waveform Displays the shape and form of
luminance level of a signal.
* Vectorscope : Displays the color components
‘B-Y’ and ‘R-Y’of the input signals onto the
X-Y axis. Two dierent types of Vetorscopes
are displayed according to SD or HD input
signals. 100% and 75% scales are indicated
on the Vetorscope
● Waveform Intensity
- Controls the brightness of the Waveform/
Vectorscope display.
- Available values are between 1 ~ 63. The
higher the number the brighter the
waveform will be.
