V 07/07
OptiSelect manual powder gun Function description • 19

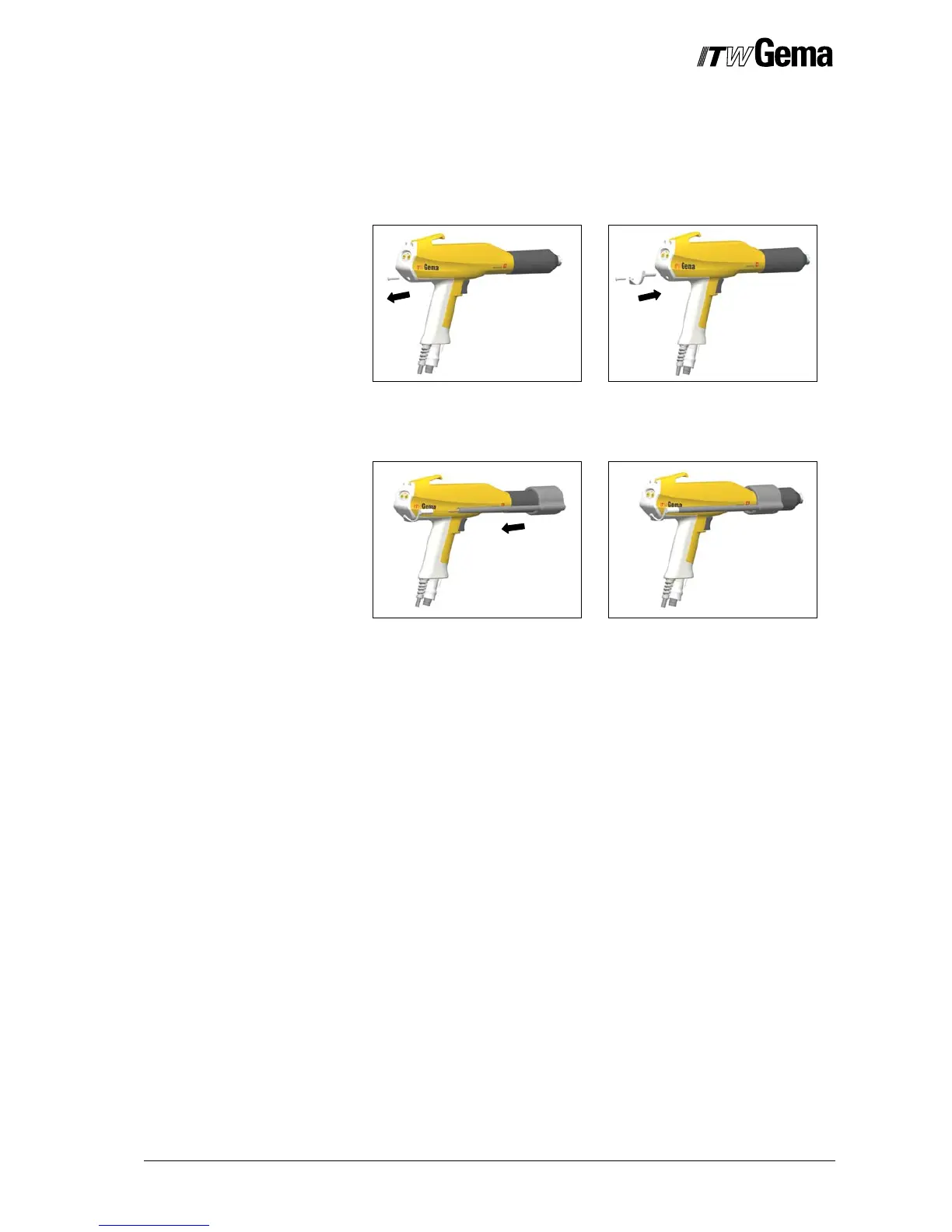

SuperCorona assembly
Before fitting the SuperCorona ring, make sure that the connection and
the plug-in connector are free from grease and powder, otherwise the
electric contact cannot be guaranteed.
1.
2.
Fasten the SuperCorona connection with the existing screw on the rear
side of the gun (1 and 2).
3.
4.
Insert the SuperCorona ring on the threaded sleeve (3) and connect it to
the SuperCorona connection (4).
