5

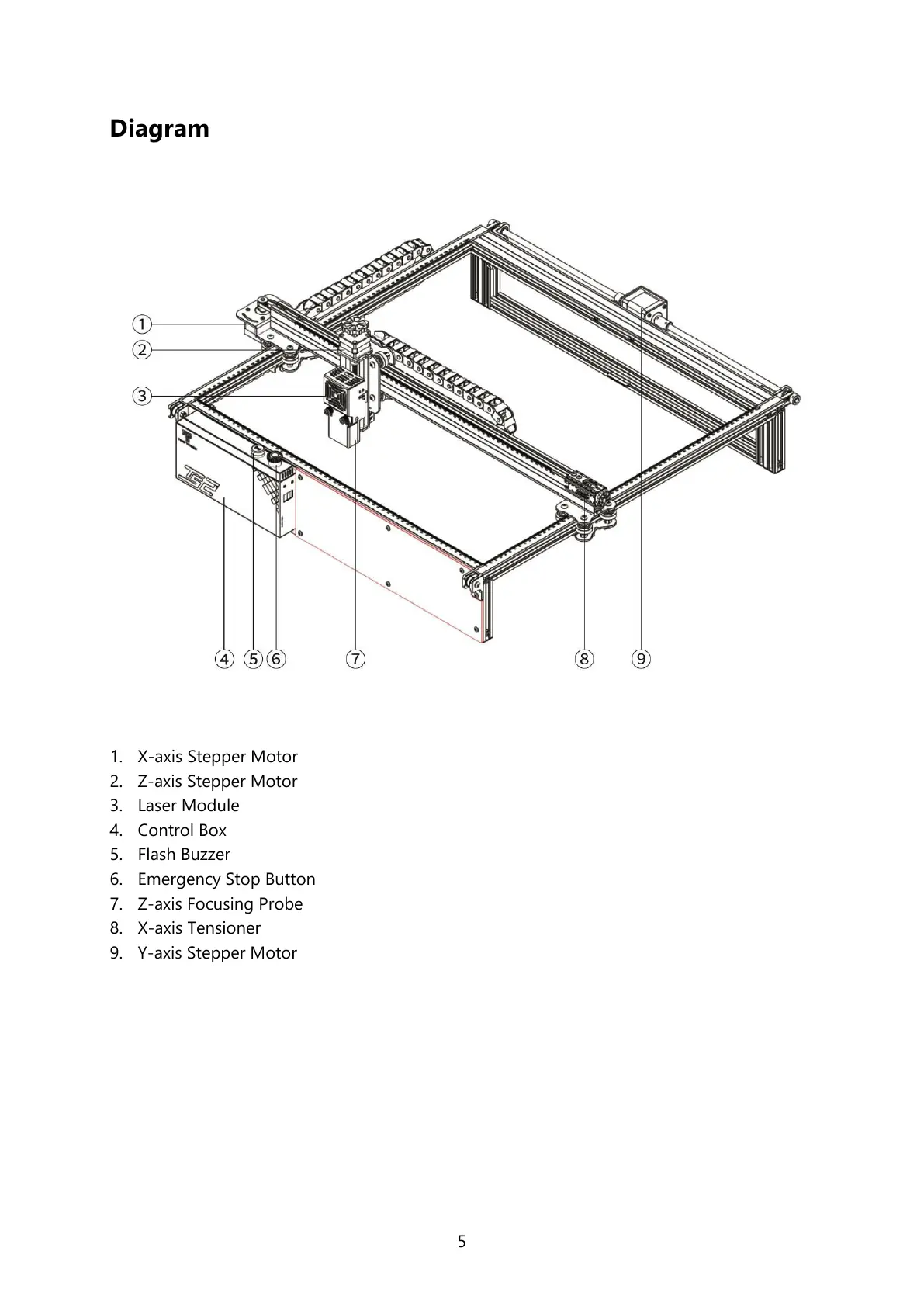

Diagram
1. X-axis Stepper Motor
2. Z-axis Stepper Motor
3. Laser Module
4. Control Box
5. Flash Buzzer
6. Emergency Stop Button
7. Z-axis Focusing Probe
8. X-axis Tensioner
9. Y-axis Stepper Motor
