6

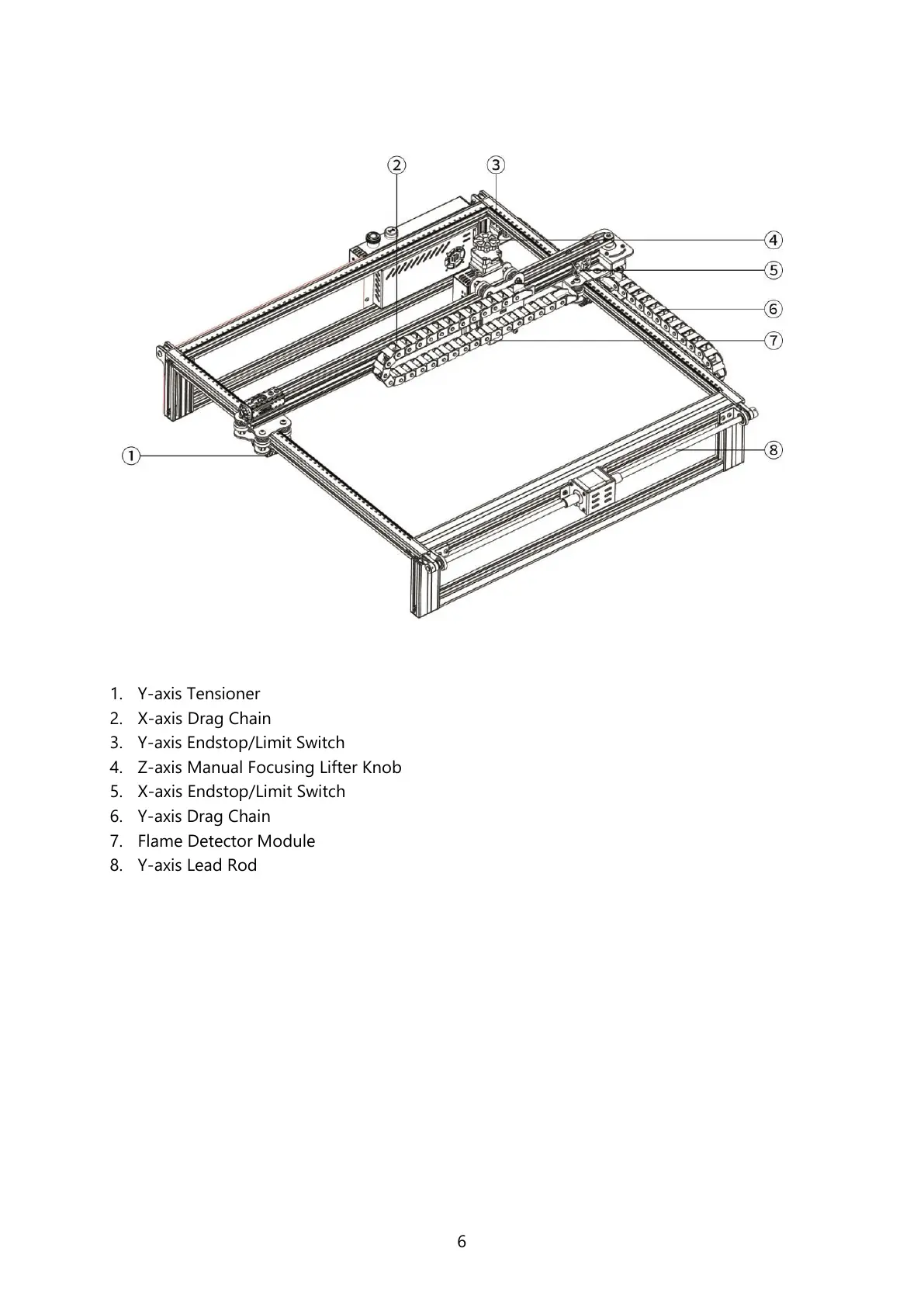

1. Y-axis Tensioner
2. X-axis Drag Chain
3. Y-axis Endstop/Limit Switch
4. Z-axis Manual Focusing Lifter Knob
5. X-axis Endstop/Limit Switch
6. Y-axis Drag Chain
7. Flame Detector Module
8. Y-axis Lead Rod
