2.10 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
Onboard LAN LED Color Definition
The two (2) onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED
Right LED
10 Mbps
Link
Green
Off
Active
Blinking Green
Off
100 Mbps
Link
Green
Green
Active
Blinking Green
Green
1000 Mbps
Link
Green
Amber
Active
Blinking Green
Amber
No Link
Off
Off

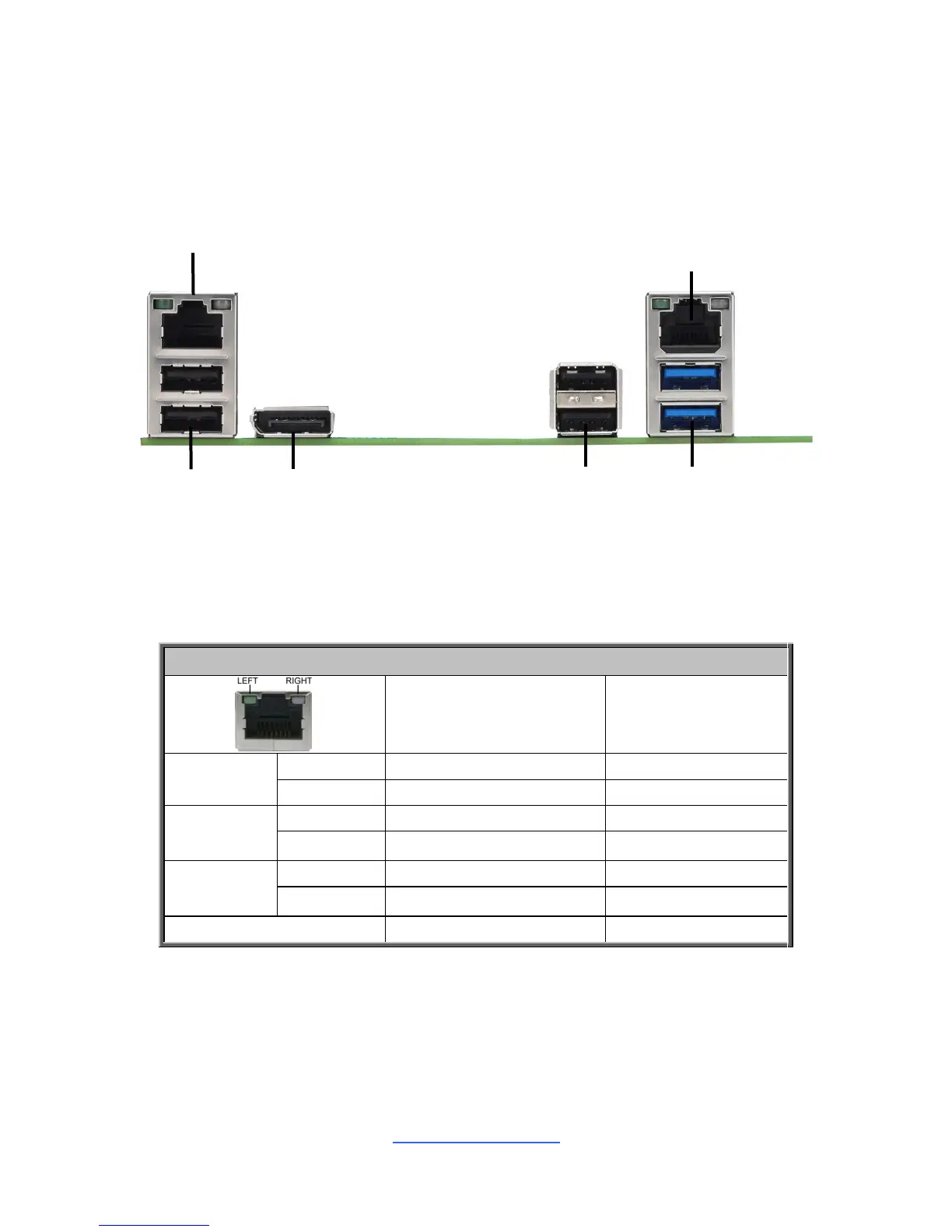

USB3.0x2
(X557)
USB2.0x2
Display Port
LAN1 (I210)
LAN2 (I219)
USB2.0x2
