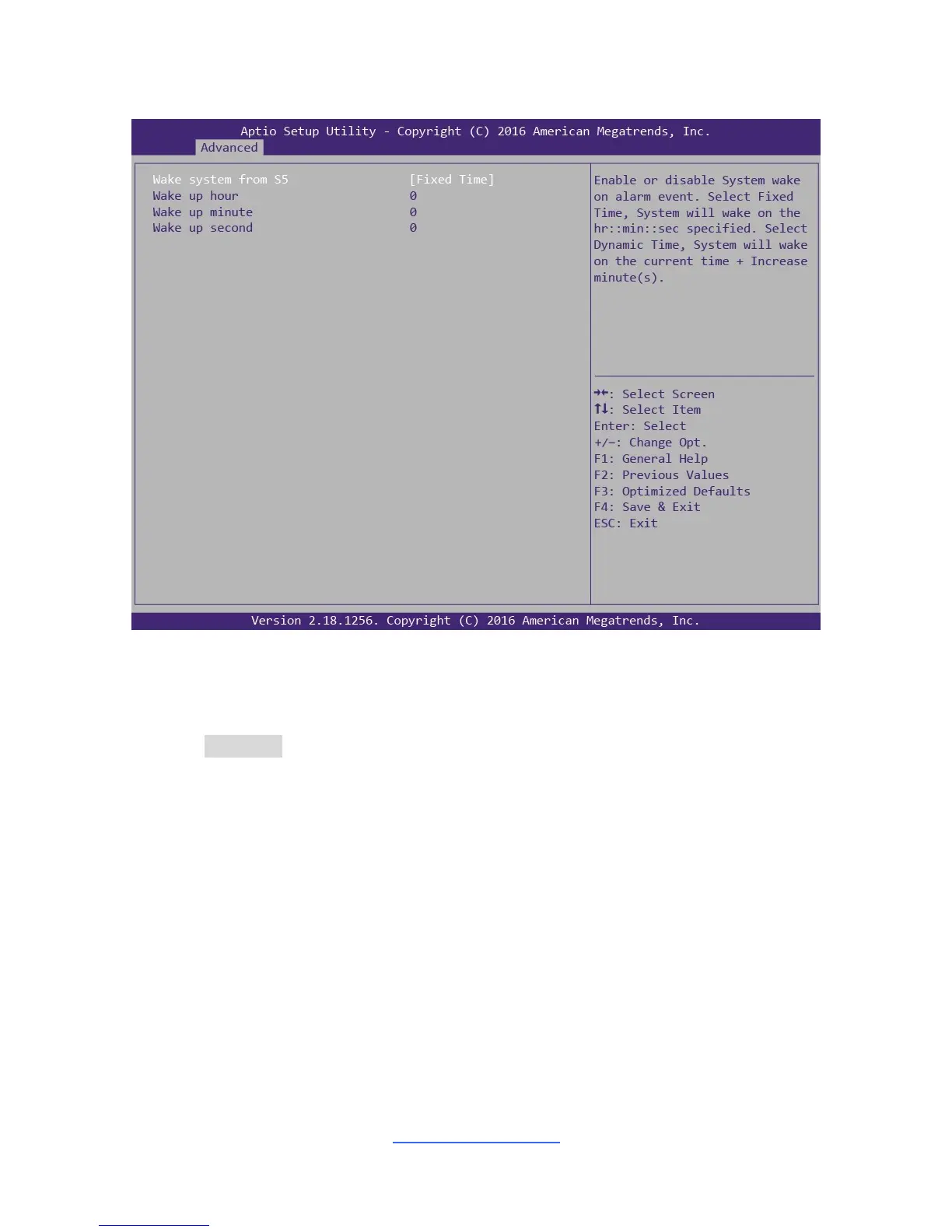

3.3.8 S5 RTC Wake Settings
Wake system from S5
Enable or disable system wake on alarm event. Select Fixed time, system will wake
on the hr::min::sec specified. Select dynamic time, system will wake on the current
time+ increase minute(s)
Disabled / Fixed time / Dynamic time
When set to [Fixed Time] ,
wake up hour
Select 0-23 for example enter 8 for 3am and 15 for 3pm
wake up minute
Select 0-59
wake up second
Select 0-59
When set to [Dynamic Time] ,
Wake up minute increase
1-5
