TYAN S7025 - Installing the Power Supply

http://www.tyan.com
35

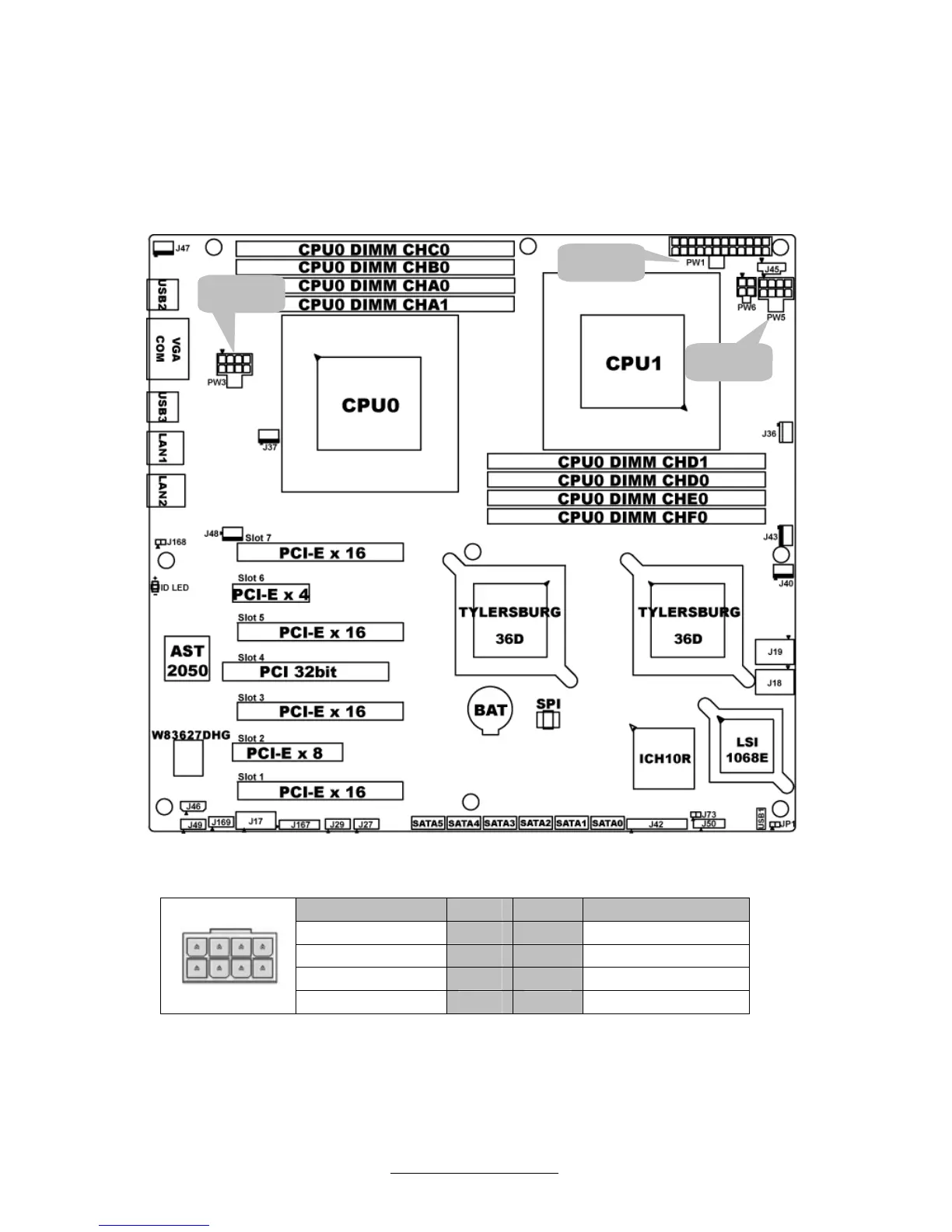

2.13 - Installing the Power Supply
The S7025 supports EPS12V/SSI power supplies that have 1x 24-pin, 2x
8-pin power connectors.
PWR1, PWR3, PWR5 should be used in
combination.
PWR 3/5: 8-Pin EPS 12V PWR Connector
Signal Pin Pin Signal
GND
1 5
+12V
GND
2 6
+12V
GND
3 7
+12V
GND
4 8
+12V
PW3
PW1
PW5
