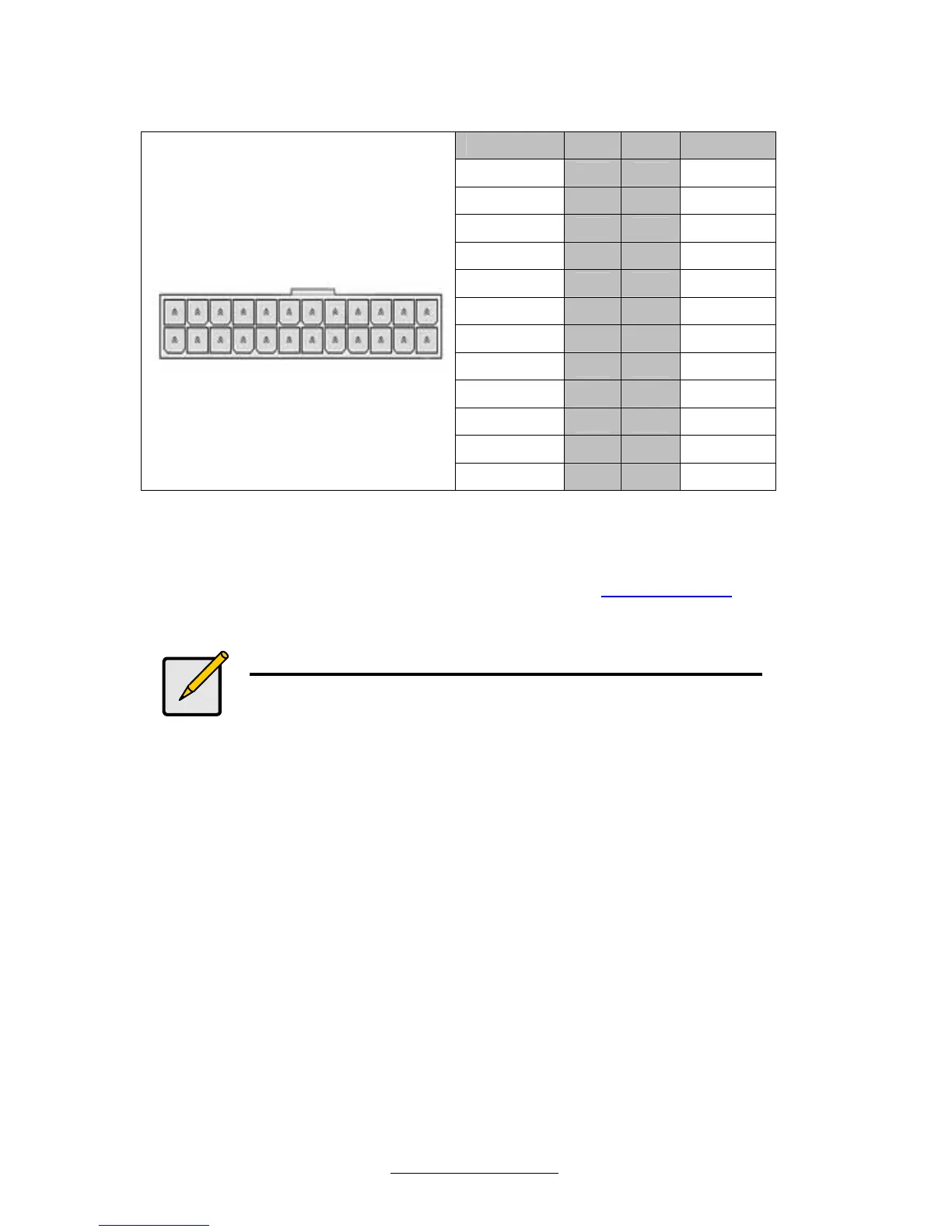

PW 1: 24-Pin EPS 12V PWR main Connector
Signal Pin Pin Signal
+3.3V
1 13
+3.3V
+3.3V
2 14
-12V
GND
3 15
GND
+5V
4 16
PS_ON
GND
5 17
GND
+5V
6 18
GND
GND
7 19
GND
PWRGD
8 20
NC
5VSB
9 21
+5V
+12V
10 22
+5V
+12V
11 23
+5V
+3.3V
12 24
GND
We suggest using a 1000W or higher power supply, this is of course depends
on how many devices you attach. 1000W is sufficient for common system (i.e.1
hard drive, 1 expansion card) configuration. However, a higher wattage solution
may be needed if the system is fully loaded. Refer to www.tyan.com website
for further information.
Note:
YOU MUST unplug the power supply before plugging the
power cables to motherboard connectors.
2.14 - Finishing Up
Congratulations on making it this far! You’re finished setting up the hardware
aspects of your computer. Before closing up your chassis, make sure that all
cables and wires are connected properly, especially IDE cables and most
importantly, jumpers. You may have difficulty powering on your system if the
motherboard jumpers are not set correctly. In the rare circumstance that you
have experienced difficulty, you can find help by asking your vendor for
assistance. If they are not available for assistance, please find setup information
and documentation online at our website or by calling your vendor’s support
line.
