18

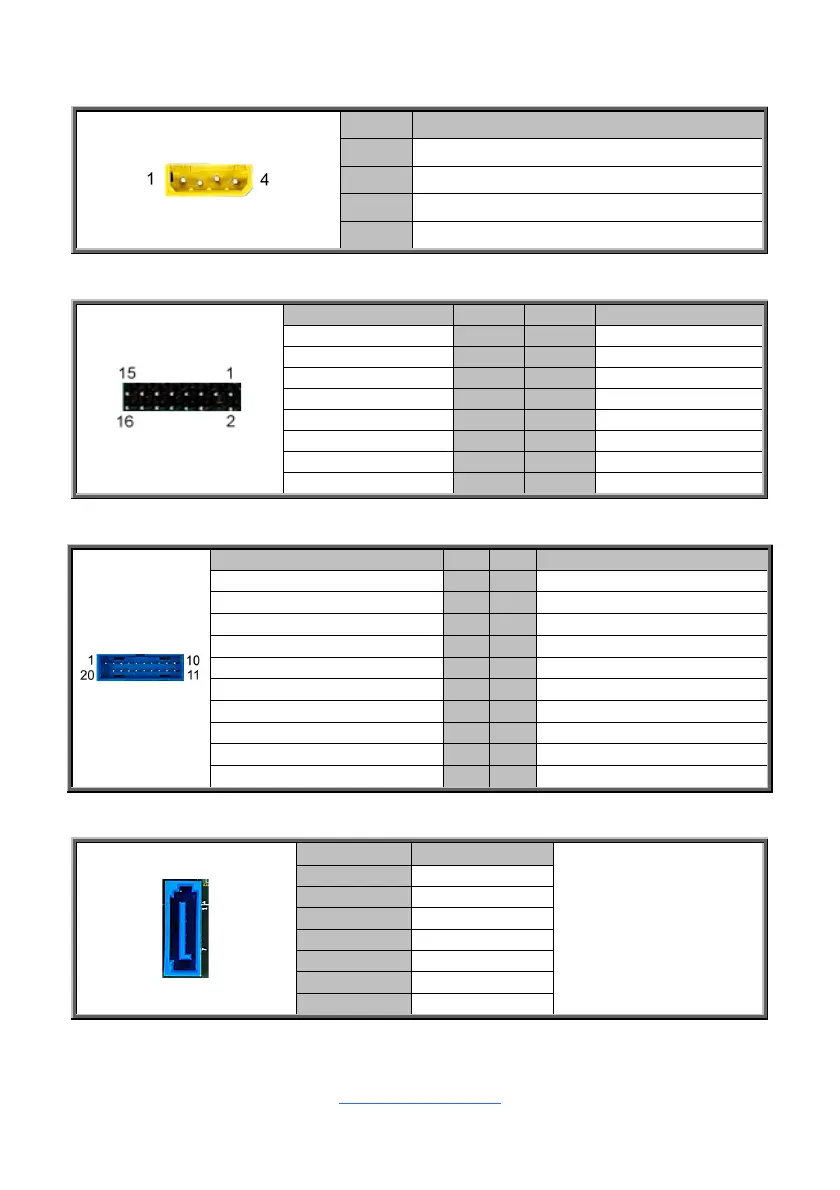

J67: IPMB Pin Header
Pin Signal
1 BMC_SMB_IPMB_5VS_DAT
2 GND
3 BMC_SMB_IPMB_5VS_CLK
4 VDD_33_DUAL
J40: LPC Debug Port and TPM Header
Signal Pin Pin Signal
VDD_33_RUN
1 2
DBG_LFRAME_N
DBG_LPC0
3 4
KEY
DBG_LPC1
5 6
DBG_PLTRST_N
DBG_LPC2
7 8
GND
DBG_LPC3
9 10
DBG_CLK
DBG_SERIRQ
11 12
GND
DBG_PRES_N
13 14
VDD_33_DUAL
VDD_33_DUAL
15 16
DBG_TPM_PP_EN
J32: Front USB3.1 Header
Signal Pin Pin Signal
VDD_5_USB_REAR
1 20
NC
P0_USB_0_SS_0RX_ESD_L
2 19
VDD_5_USB_REAR
P0_USB_0_SS_0RX_ESD_H
3 18
P0_USB_0_SS_1RX_ESD_L
GND
4 17
P0_USB_0_SS_1RX_ESD_H
P0_USB_0_SS_0TX_ESD_L
5 16
GND
P0_USB_0_SS_0TX_ESD_H
6 15
P0_USB_0_SS_1TX_ESD_L
GND
7 14
P0_USB_0_SS_1TX_ESD_H
USB2_HUB_ESD_DN1
8 13
GND
USB2_HUB_ESD_DP1
9 12
USB2_HUB_ESD_DN2
P0_USB3_FRONT_OC_R_N
10 11
USB2_HUB_ESD_DP2
J14/J22: 7-pin Vertical SATA Connector
PIN Define Pin
Connects to the Serial
ATA ready drives via
the Serial ATA cable.
1
SGND0
2
TX+
3
TX-
4
SGND1
5
RX-
6
RX+
7
SGND2
