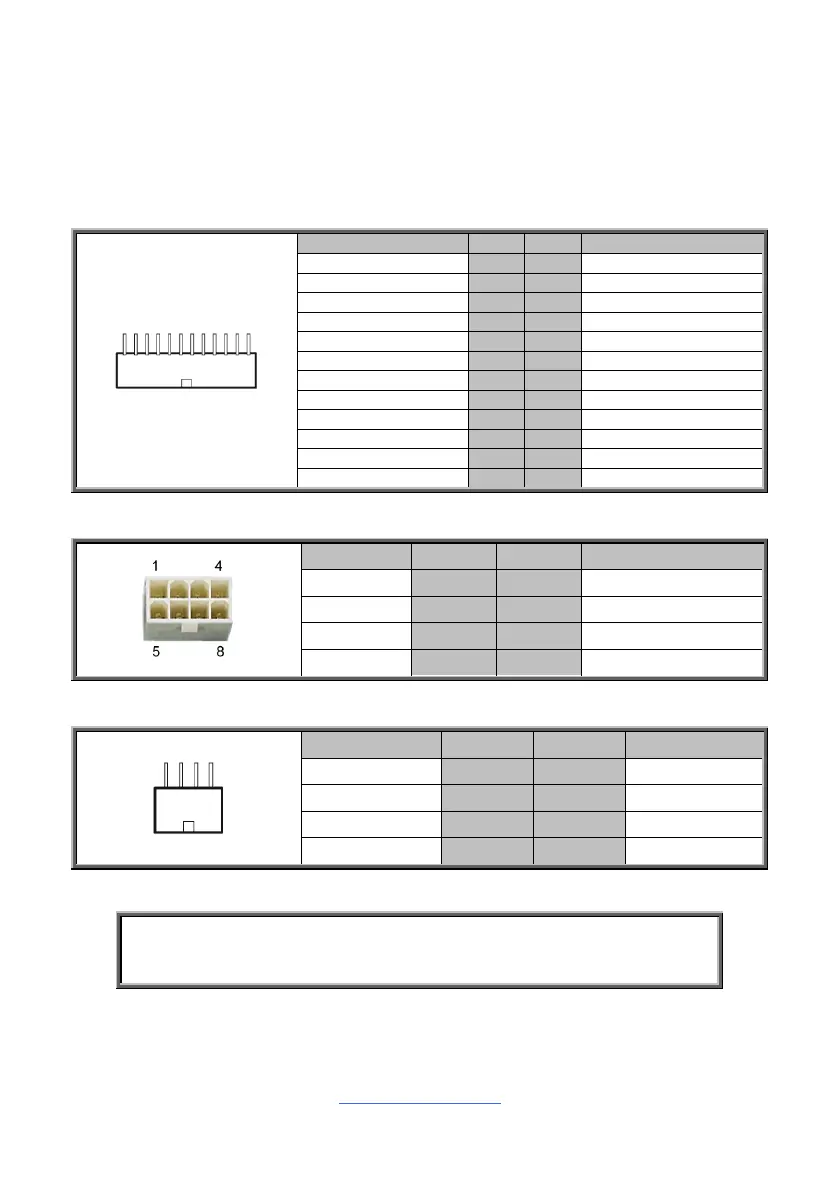

2.12 Installing the Power Supply
There are three (3) power connectors on your S8030 motherboard. The S8030
supports EPS 12V power supply.
J60: ATX 24-pin Main Power Connector
Signal Pin Pin Signal
VDD_33_RUN 1 13 VDD_33_RUN
VDD_33_RUN 2 14 N12V
GND 3 15 GND
VDD_5_RUN 4 16 PS_ON_L
GND 5 17 GND
VDD_5_RUN 6 18 GND
GND 7 19 GND
PWRGD_PS 8 20 NC
VDD_5_STBY_PSU 9 21 VDD_5_RUN
VDD_12_RUN 10 22 VDD_5_RUN
VDD_12_RUN 11 23 VDD_5_RUN
VDD_33_RUN 12 24 GND
J63: CPU Power Connector (CPU / CPU FAN / Memory ABCD)
Signal Pin Pin Signal
GND 1 5 P0_VDD_12_RUN
GND 2 6 P0_VDD_12_RUN
GND 3 7 P0_VDD_12_RUN
GND 4 8 P0_VDD_12_RUN
J65: 12V Power Connector (Memory EFGH / FAN_Connector / PCIE Slot)
Signal Pin Pin Signal
GND 1 5 VDD_12_RUN
GND 2 6 VDD_12_RUN
GND 3 7 VDD_12_RUN
GND 4 8 VDD_12_RUN
NOTE:
You must unplug the power supply before plugging the power cables to
motherboard connectors.
