20
NVME[01]/[23]_WAKE[01]/[23] A27 B27 NVME[1]/[3]_SDA
GND A28 B28 GND
NVME[1]/[3]_CLK_DP A29 B29 NVME[1]/[3]_PERST_L
NVME[1]/[3]_CLK_DN A30 B30 NVME[1]/[3]_PRSNT_L
GND A31 B31 GND
NVME[1]/[3]_RX_P2 A32 B32 NVME[1]/[3]_TX_P2
NVME[1]/[3]_RX_N2 A33 B33 NVME[1]/[3]_TX_N2
GND A34 B34 GND
NVME[1]/[3]_RX_P3 A35 B35 NVME[1]/[3]_TX_P3
NVME[1]/[3]_RX_N3 A36 B36 NVME[1]/[3]_TX_N3
GND A37 B37 GND

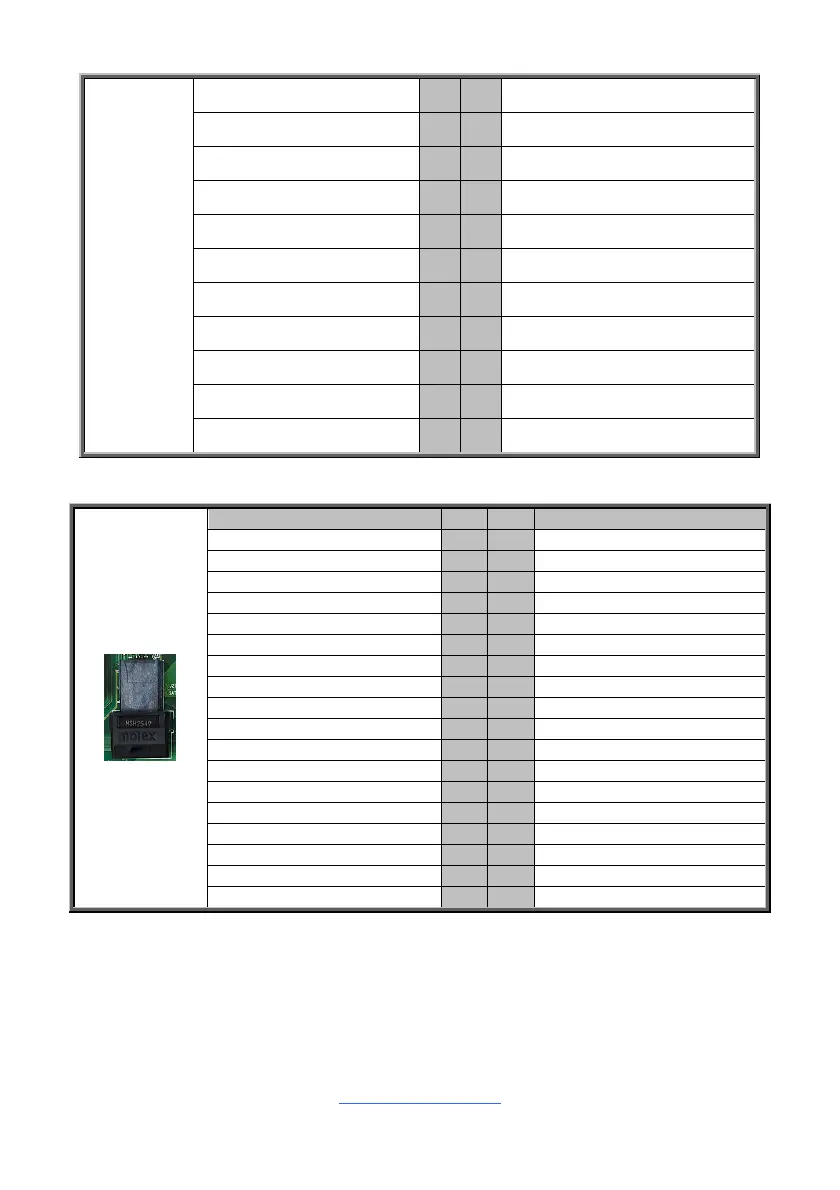

J25/J26/J27: Mini SAS HD Connector
Signal Pin Pin Signal
GND1 A3 C3 GND7
RXA0_DP B4 D4 TXA0_DP
RXA0_DN B5 D5 TXA0_DN
GND2 A6 C6 GND8
RXA1_DP A4 C4 TXA1_DP
RXA1_DN A5 C5 TXA1_DN
GND3 A9 C9 GND9
SGPIO_CLK A2 A1 SIDEBAND0
SGPIO_LOAD B2 B1 SIDEBAND1
SIDEBAND4 C2 C1 SGPIO_DATA_OUT
SIDEBAND5 D2 D1 SGPIO_DATA_IN
GND1 B3 D3 GND10
RXA2_DP B7 D7 TXA2_DP
RXA2_DN B8 D8 TXA2_DN
GND2 B6 D6 GND11
RXA3_DP A7 C7 TXA3_DP
RXA3_DN A8 C8 TXA3_DN
GND3 B9 D9 GND12
