TYAN S8030 - Page 22

http://www.tyan.com
22

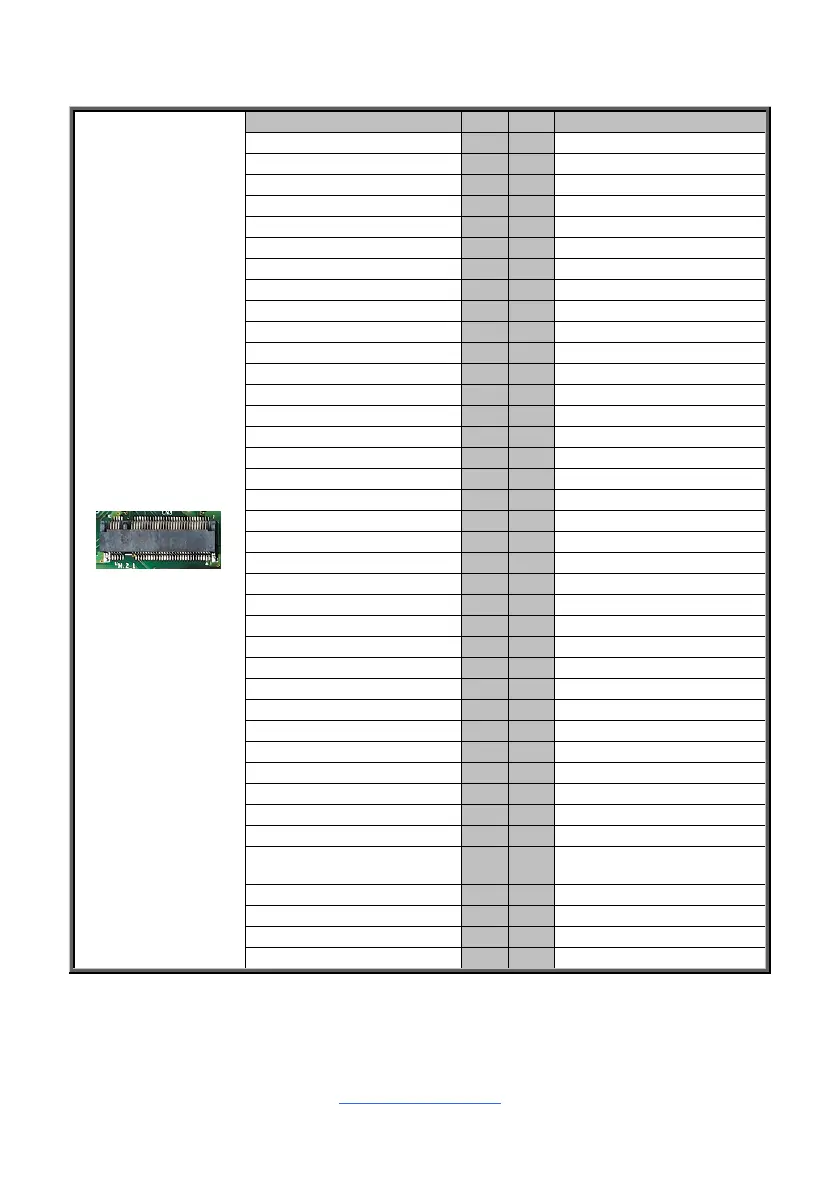

CN1 / CN3: M.2 PCIe x2 Slot
Signal Pin Pin Signal
GND 1 2 3.3V_RUN
GND 3 4 3.3V_RUN
PERN3 5 6 PRSNT2#
PERP3 7 8 N/C
GND 9 0 LED
PETN3 11 12 3.3V_RUN
PETP3 13 14 3.3V_RUN
GND 15 16 3.3V_RUN
PERN2 17 18 3.3V_RUN
PERP2 19 20 N/C
GND 21 22 N/C
PETN2 23 24 N/C
PETP2 25 26 N/C
GND 27 28 N/C
PERN1 29 30 12V_RUN
PERP1 31 32 12V_RUN
GND 33 34 12V_RUN
PETN1 35 36 12V_RUN(Pre-Charge)
PETP1 37 38 M2_DEVSLP
GND 39 40 I2C_M2_SCL(1.8V)
PERN0 / SATA-B+ 41 42 I2C_M2_SDA(1.8V)
PERP0 / SATA-B- 43 44 N/C
GND 45 46 N/C
PETN0 / SATA-A- 47 48 N/C
PETP0 / SATA-A+ 49 50
M2_PERST
GND 51 52
N/C
PE_CLK_N 53 54
M2_PEWAKE
PE_CLK_P 55 56 N/C
GND 57 58 N/C
PRSNT1#(GND) 67 68 N/C
PEDER_OC-PCIE/GND-
SATA
69 70 3.3V_RUN
GND 71 72 3.3V_RUN
GND 73 74 3.3V_RUN
GND 75
