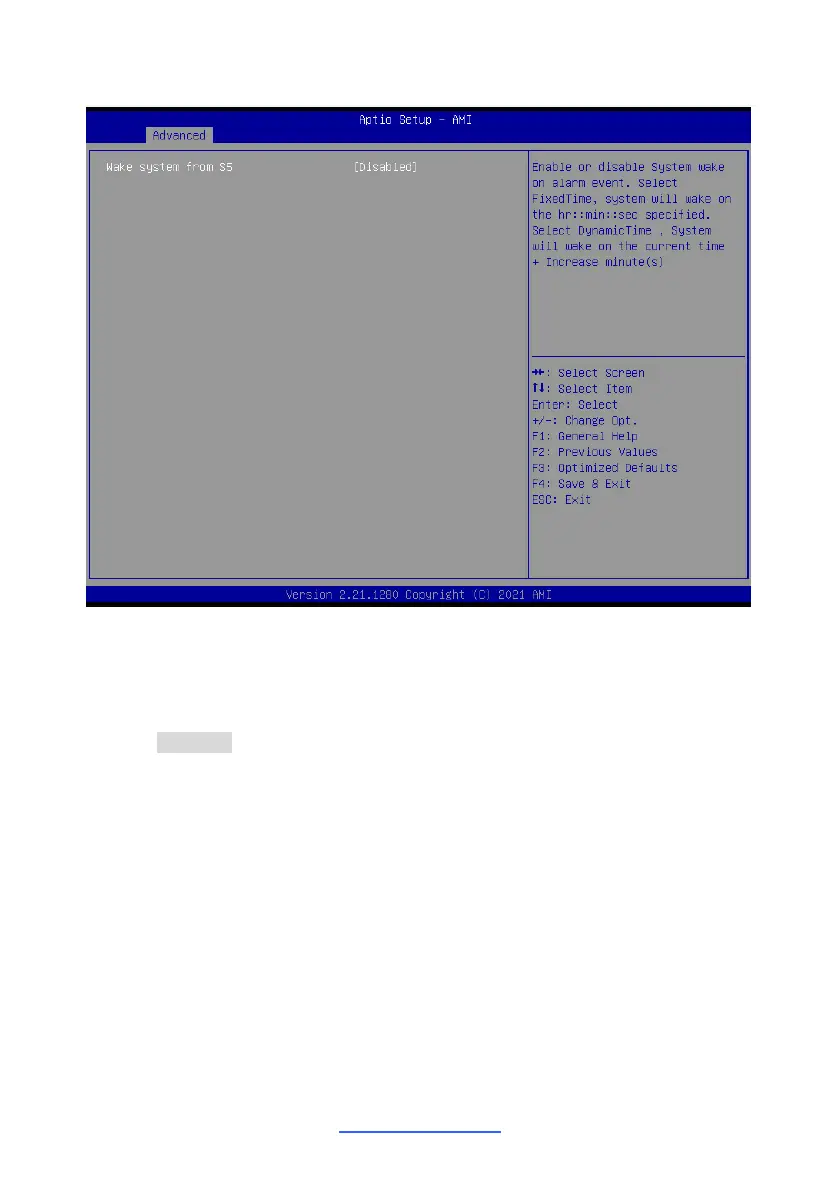

3.3.5 S5 RTC Wake Settings
Wake system from S5
Enable or disable System wake on alarm event. Select Fixed Time, system will
wake on the hr:min:sec specified. Select Dynamic Time, system will wake on the
current time + increase minute(s).
Disabled / Fixed Time / Dynamic Time
When Wake system from S5 is set to [Fixed Time]
Wake up hour
Select 0-23. For example enter 3 for 3am and 15 for 3pm.
Wake up minute
Select 0-59 for Minute.
Wake up second
Select 0-59 for Second.
When Wake system from S5 is set to [Dynamic Time]
Wake up Minute increase
1-5.
